Overhead Console Sunglasses Storage Bin
Sunglasses Storage Bin1. Remove the overhead console as described.
2. Open the sunglasses storage bin door.

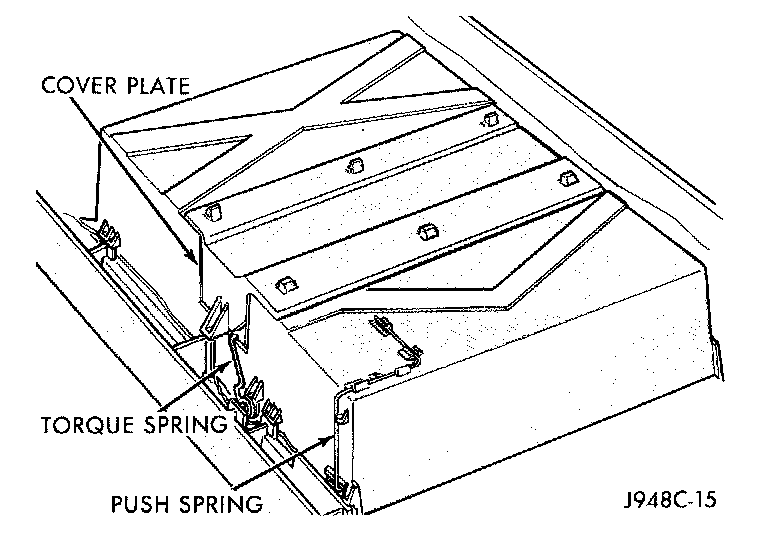

Sunglasses Storage Bin Cover Plate:
3. Remove the sunglasses storage bin cover plate as shown.

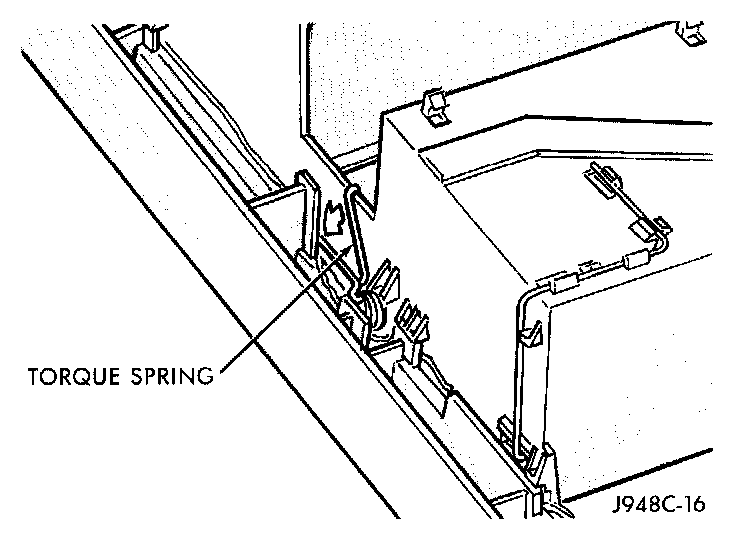

Release Torque Spring:
4. Unhook the torque spring from the wall of the console housing, and release the spring to the down position, as shown by the arrow in the image.
Sunglasses Storage Bin:
5. Remove the sunglasses storage bin door by flexing the center panel.
Remove the side of the door that has gear teeth near the pivot rod first as shown.
The gear side of the door has a short pivot rod.
Slide the door out of the compartment.
6. Remove and discard the latch spring.
7. Install a new latch spring as shown previously.
This may require flexing the housing in that area for clearance.
8. Install the sunglasses storage bin door in the open position as follows:
a. Make sure that the torque spring lines up with the slot in the long pivot rod, then insert the Tong pivot rod into the compartment.
b. Flex the center panel and snap the short pivot rod into place.
c. Hook the torque spring back over the wall.
d. Cycle the door several times to ensure that the door functions properly.
9. Snap the cover plate back into position as shown previously.
Some pressure from the inside of the bin may be required to engage all six snaps.
