Overhead Console Reading/Courtesy Lamp Bulb

Reading/Courtesy Lamp Bulbs

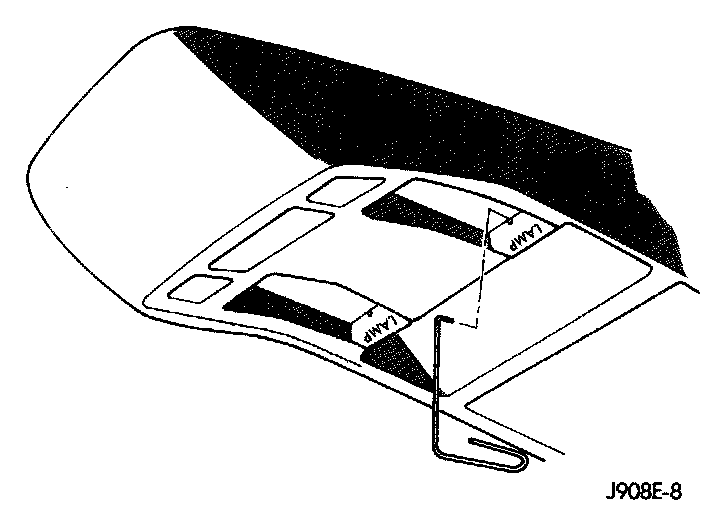

1. Make a hook in the end of a large paper clip or wire (approximately 0.06 inches in diameter).
Insert the wire into the hole in the lens and pull downward as shown.

2. Set the lens aside and replace the bulb.

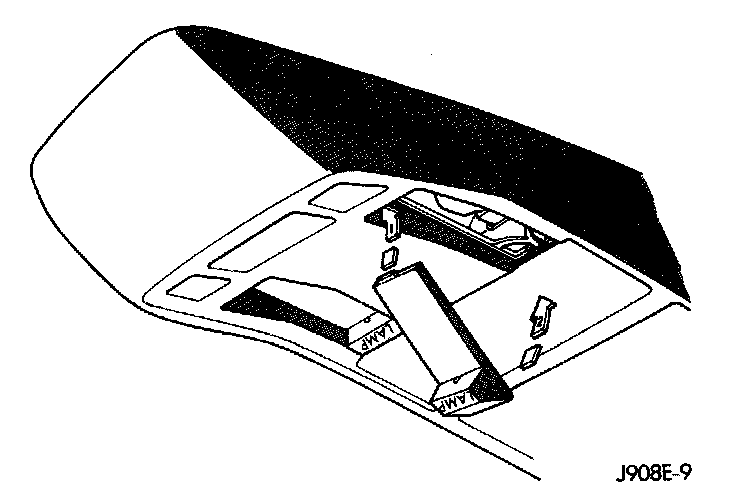

3. Replace the lens by inserting the tab on the thin portion of lens into the mating slot on the console.
Push upwards on the opposite end of the lens until it snaps into place as shown.
