Connecting Rod Bearing: Application and ID

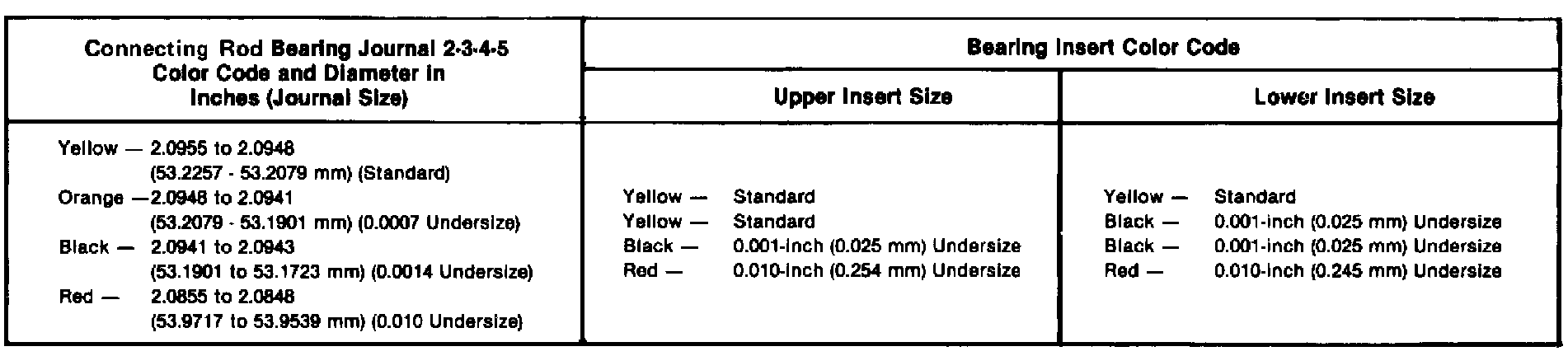

Fig. 14 Connecting Rod Bearing Chart:

The connecting rod journal is identified by a color coded paint mark on adjacent cheek or counterweight toward flanged (rear) end of crankshaft. Color codes used to indicate journal sizes and corresponding bearing sizes are listed in Fig.14.
