Windshield Wiper Diagnosis

1. Remove circuit breaker from fuse block and turn ignition switch to ACCESSORY or ON.
a. Measure voltage at the battery side of the circuit breaker cavity. Meter should read battery voltage. If not, repair wiring from ignition switch.
b. Measure resistance across circuit breaker terminals. Meter should read zero ohms. If not, replace failed circuit breaker.
2. Unplug wiring harness connector (multi-function switch side) from intermittent wiper module and turn ignition switch to ACCESSORY or ON.
a. Measure voltage at unplugged connector terminal D, Meter should read battery voltage. If not, repair wiring back to circuit breaker through multi-function switch connector cavity 4. Refer to Multi-Function Switch Diagnosis for additional service information.
b. Turn wiper switch to LOW. Measure voltage at unplugged connector terminal E. Meter should read battery voltage. If not, repair wiring from wiper switch and/or refer to Multi-Function Switch Diagnosis.
c. Turn wiper switch to HIGH. Measure voltage at unplugged connector terminal C. Meter should read battery voltage. If not, repair wiring from wiper switch and/or refer to Multi-Function Switch Diagnosis.
3. With ignition switch OFF and wiring harness connector (multi-function switch side) still unplugged.
a. Measure resistance between unplugged connector terminals A and G while rotating wiper switch from minimum to maximum DELAY Meter should read from zero to 300K ohms. If not, repair wiring from wiper switch and/or refer to Multi-Function Switch Diagnosis.
b. Measure resistance between unplugged connector terminals D and G while rotating wiper switch from minimum to maximum DELAY. Meter should read from zero to 300K ohms. If not, repair wiring from wiper switch and/or refer to Multi-Function Switch Diagnosis.
4. Unplug wiring harness connector (wiper motor side) from intermittent wiper module. Turn wiper switch to LOW or HIGH, then plug both unplugged harness connectors to each other. Turn ignition switch to ACCESSORY or ON.

CAUTION: DO NOT move the wiper switch to DELAY with the intermittent wiper module removed from the circuit. If the switch is moved to the DELAY position during the next step, the switch will be damaged.

a. Test wiper operation in LOW and HIGH speed modes, and test washer operation. If these modes were inoperative, but are OK now, replace failed intermittent wiper module. If not, reinstall intermittent wiper module and go to next step.

CAUTION: When replacing intermittent wiper module, be certain to use the correct replacement module. If an incorrect substitution is used, the wiper delay will be incorrect.

5. Turn ignition switch to ACCESSORY or ON, and turn wiper switch to LOW or HIGH. Measure voltage at either intermittent wiper module connector terminal F and move wiper switch to OFF. Meter should show battery voltage until wipers park, and then zero volts. If OK, go to step 6. If not, check wiring to wiper motor and perform Multi-Function Switch Diagnosis, then go to step 6.

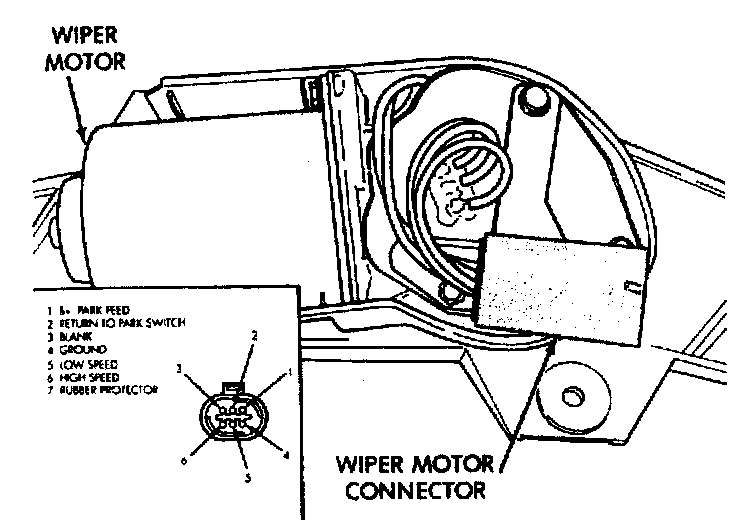

6. To test the wiper motor, turn the ignition switch to ACCESSORY or ON. Position the wiper switch and probe the motor connector as indicated in the following steps.
a. Wiper switch in OFF position, measure resistance between terminal 4 and a good ground. Meter should read zero ohms. If not, repair wiring to ground.
b. Wiper switch in any position, measure voltage at terminal 1. Meter should read battery voltage. If not, repair wiring to intermittent wiper module.
c. Wiper switch in LOW, measure voltage at terminal 5. Meter should read battery voltage. If OK, but if wipers do not operate, replace failed wiper motor. If not, repair wiring to intermittent wiper module.
d. Wiper switch in HIGH, measure voltage at terminal 6. Meter should read battery voltage. If OK, but wipers do not operate, replace failed wiper motor. If not, repair wiring to intermittent wiper module.
e. Wiper switch in LOW or HIGH, voltmeter connected to terminal 2. Turn wiper switch to OFF and observe meter. Meter should read battery voltage when switch goes to OFF, then zero volts after wipers park. If battery voltage present, but wipers fail to park, replace failed wiper motor. If no battery voltage present, repair wiring to intermittent wiper module.
