Daytime Running Lamp Control Unit: Service and Repair

The headlamps on vehicles sold in Canada, will go on when the ignition is turned on. This provides a constant lights on condition while the ignition switch is in the run position and the park brake is not engaged. The lamps illuminate at less than 50% of normal intensity.

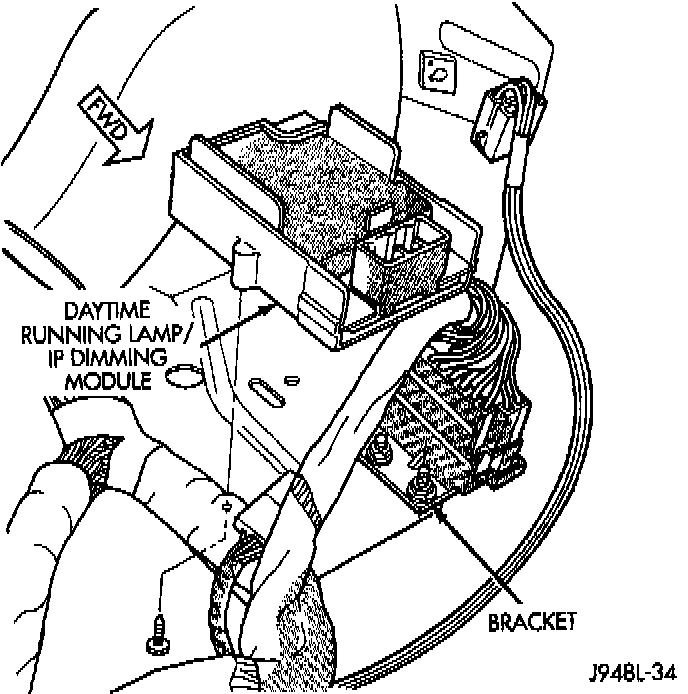

The Daytime Running Light Module (DRL) is located on a bracket, to the left of the steering column, on the underside of the instrument panel.

1. Remove screws holding module and bracket to vehicle.






2. Disconnect electrical connector.

To install module, reverse the removal procedures.
