Jeep Truck
>>
1995
>>
Grand Cherokee 4WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Temperature Control (ATC)
>>
Chrysler Collision Detection Bus

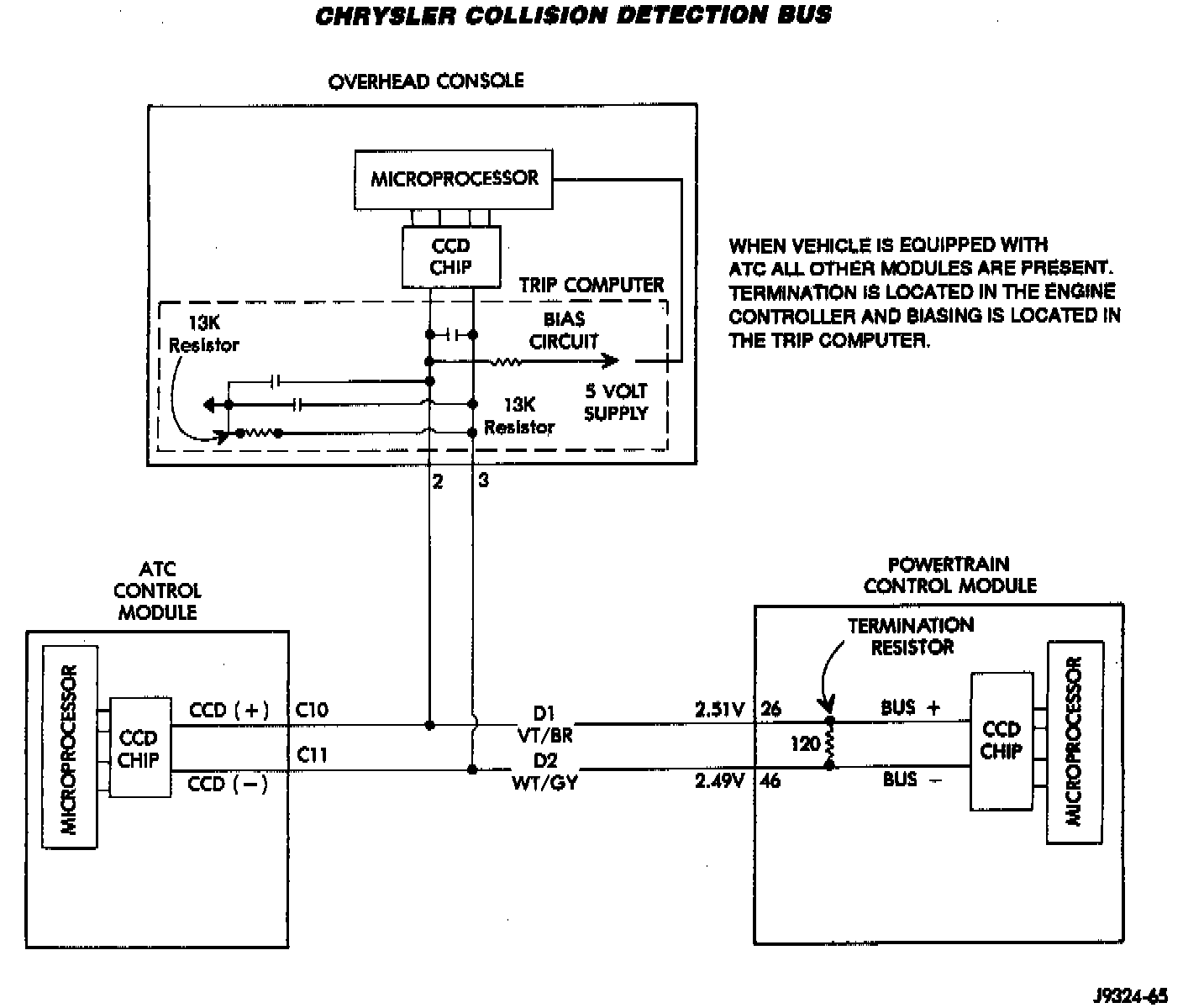

Chrysler Collision Detection Bus
CCD Bus:
