Jeep Truck
>>
1995
>>
Grand Cherokee 4WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Automatic Temperature Control (ATC)
>>
Automatic Temperature Control (ATC) System
Automatic Temperature Control (ATC) System

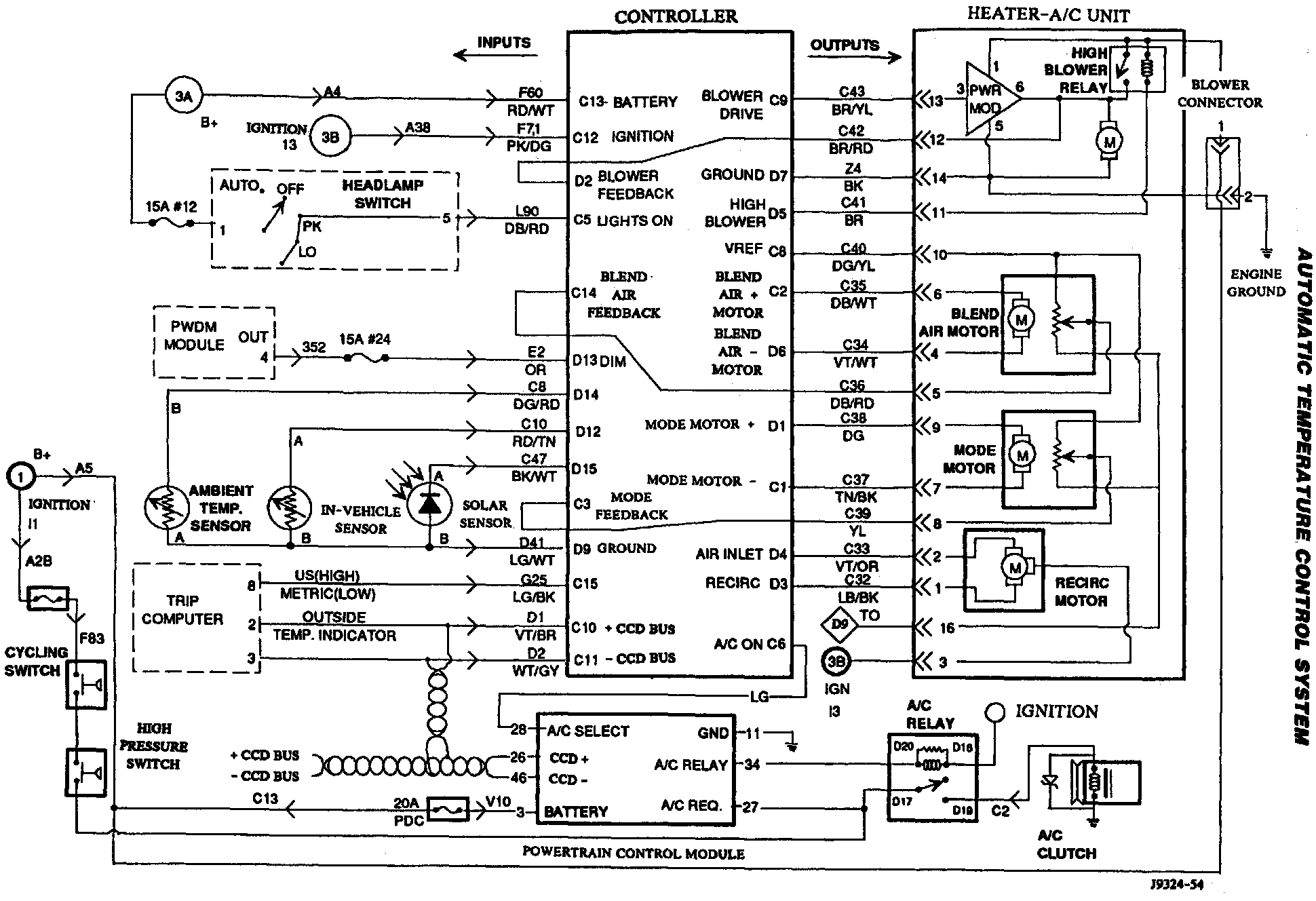

Automatic Temperature Control System Circuit:
