Home
>>
Jeep Truck
>>
1995
>>
Grand Cherokee 4WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>

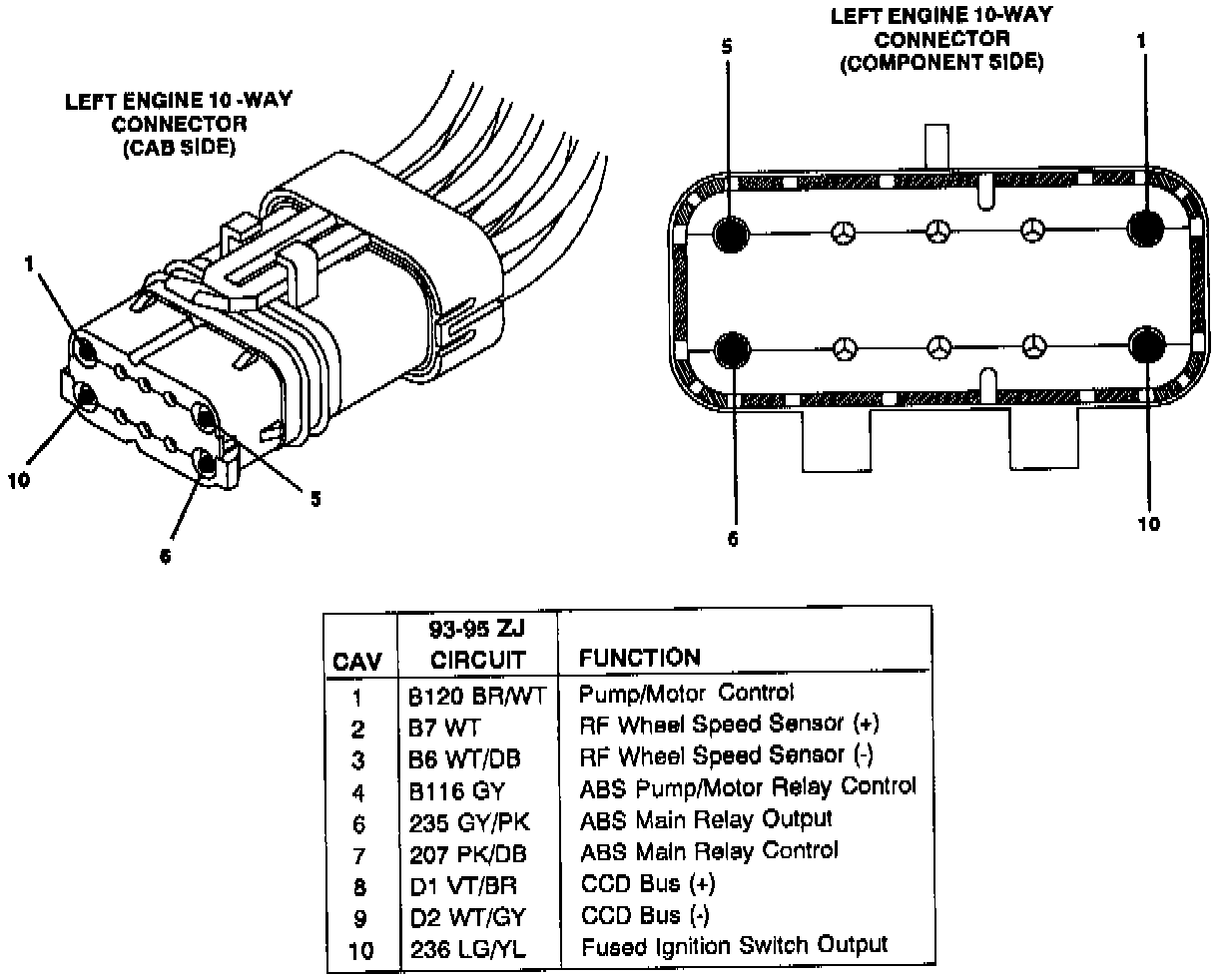

Left Engine 10-Way Connector
Left Engine 10-Way Connector
Left Engine 10-Way Connector:
