Door Sensor/Switch (For Alarm): Service and Repair

REMOVAL
1. Remove screw from demister opening at front of door.
2. Remove screw and door handle cover.
3. Remove screw from under armrest.
4. Remove screw from bottom of hand hold in armrest.

Trim Panel Removal:

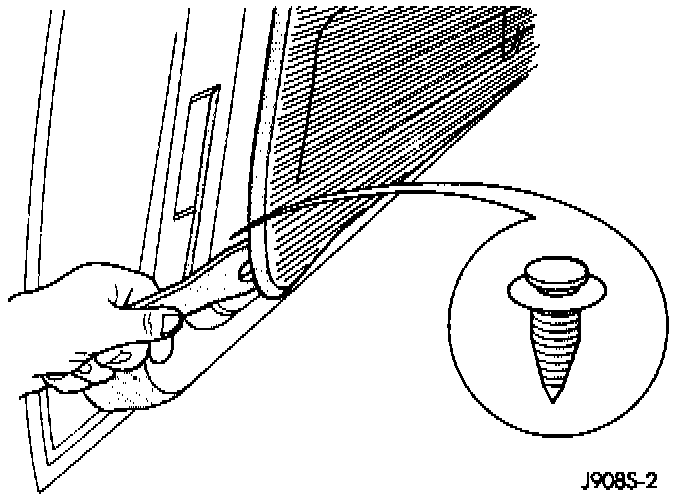

5. Remove the trim panel with a wide flat blade tool. To aid in removal of the trim panel, start at the bottom of the panel.
6. Remove the plastic water dam sheet.

Door Disarm Switch:

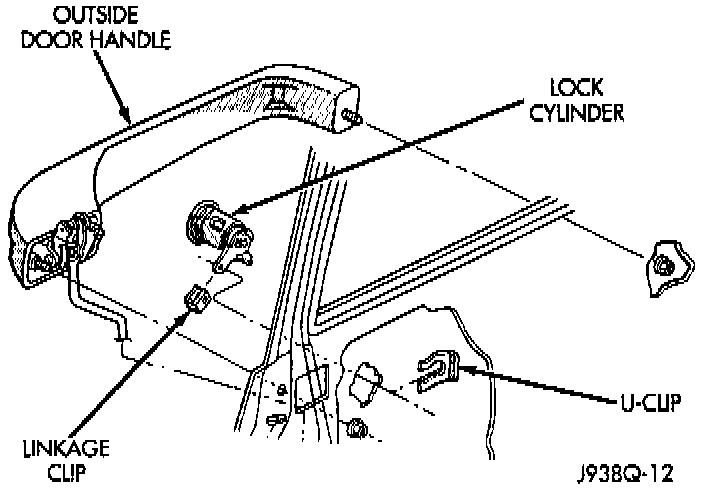

7. Remove the U-clip holding the lock cylinder and disarm switch.
8. Pull the lock cylinder out of the door.

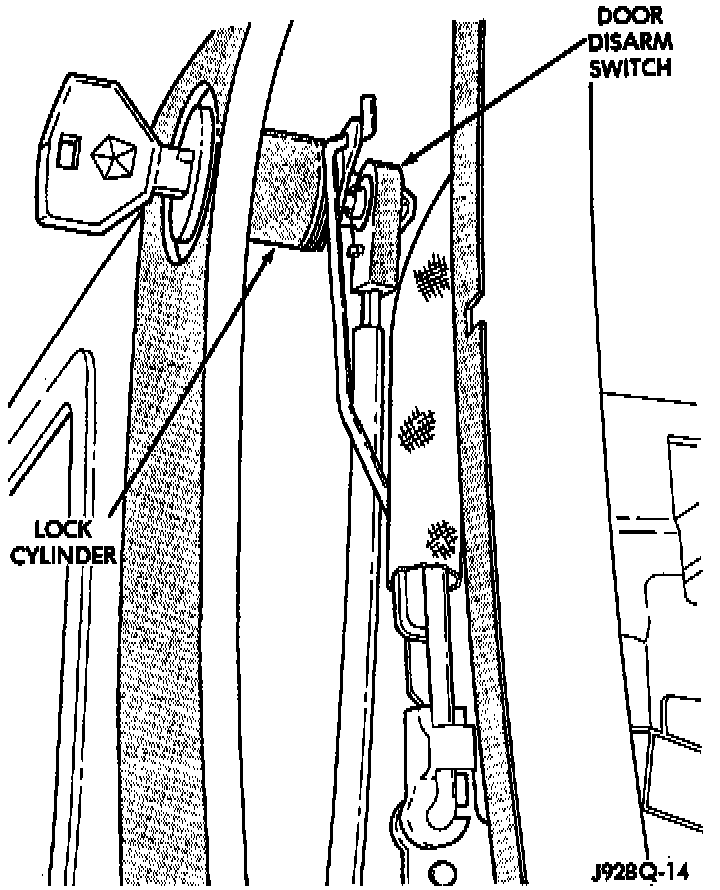

9. Pry the door disarm switch off the back of the lock cylinder.
10. Remove harness clip from door sheet metal.
11. Unplug the harness connector and remove the switch.

INSTALLATION
1. Push the door disarm switch onto the lock cylinder.
2. Install lock cylinder in door with U-shaped clip.
3. Connect harness and fasten clip to door.
4. Install door trim panel.
5. Install linkage and control panel.
