General Specifications

DIMENSIONS
Compression Pressure: 689 kPa (100 psi)
Gasket Thickness (Compressed): 1.2065 mm (0.0475 inch)

TORQUE

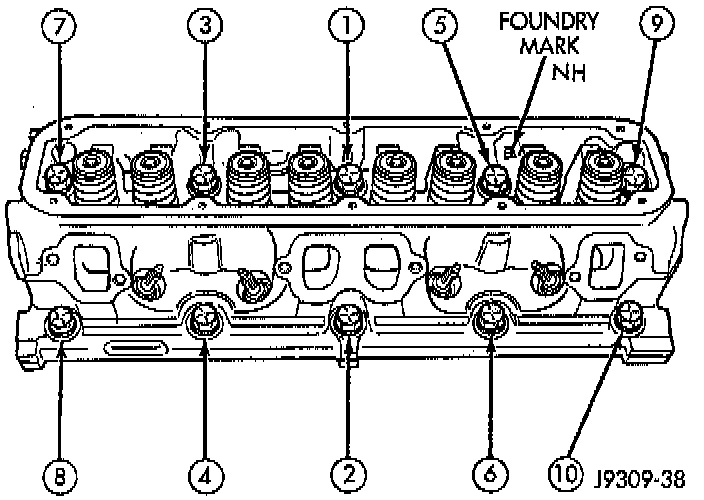

Tighten Bolts In A 2 Step Process:
1st Step: 68 Nm (50 ft. lbs.)
2nd Step: 143 Nm (105 ft. lbs.)

Cylinder Head Collar Studs: 13 Nm (115 inch lbs.)
