Sensor Testing

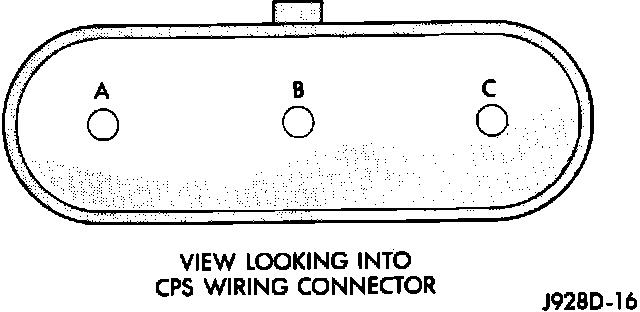

Crankshaft Position Sensor Wiring Connector:

NOTE: To perform a complete test of the Crankshaft Position Sensor (CPS) and its circuitry, refer to the appropriate Diagnostic Charts. To test the CPS only, refer to the following:

PROCEDURE
1. Near the rear of the right cylinder head, disconnect CPS wiring harness connector from main wiring harness.

2. Place an ohmmeter across terminals B and C of the CPS connector. The meter reading should be open (infinite resistance). Replace sensor if resistance is indicated.
