Electrical Diagrams

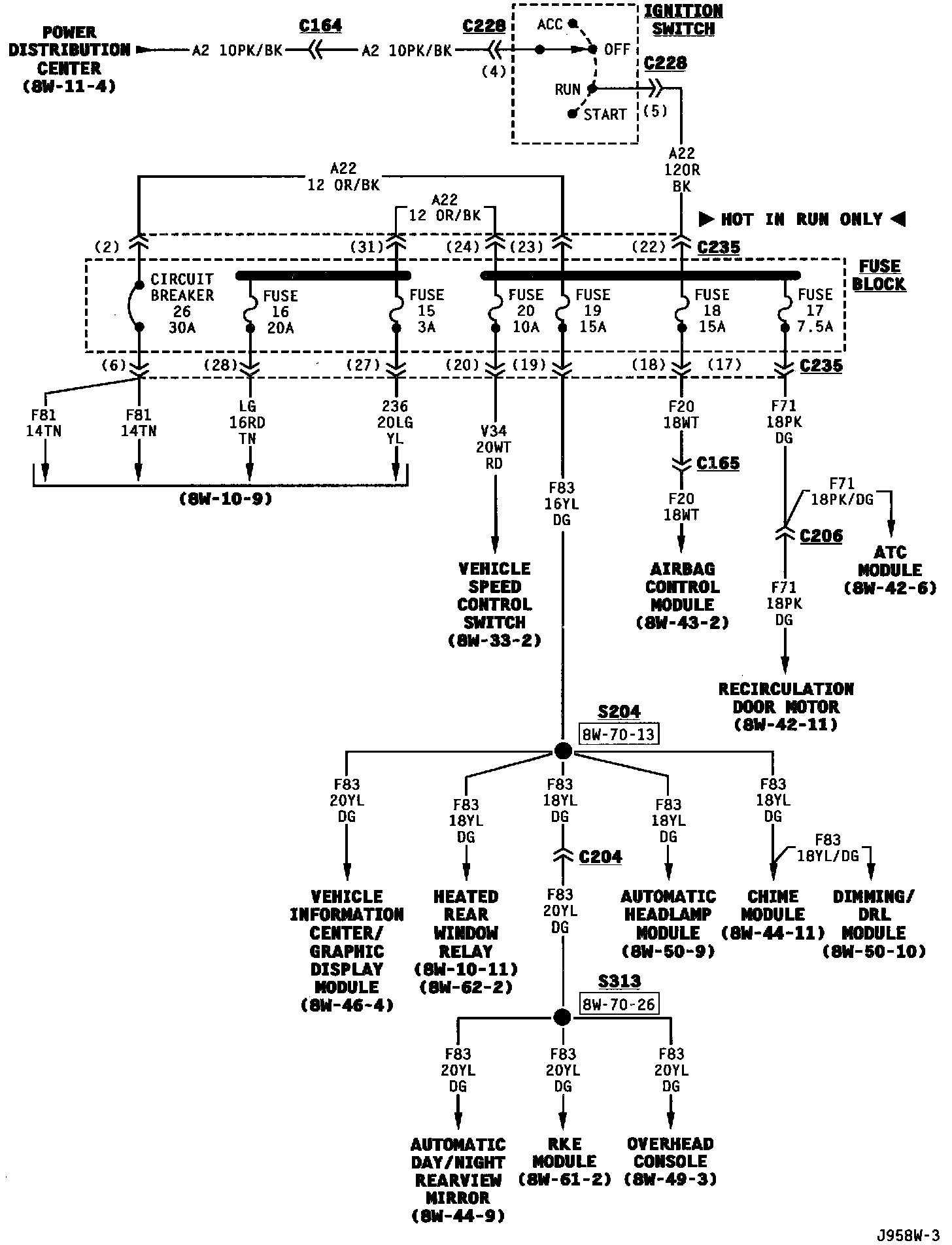

Fuse Block (Part 1 Of 10):

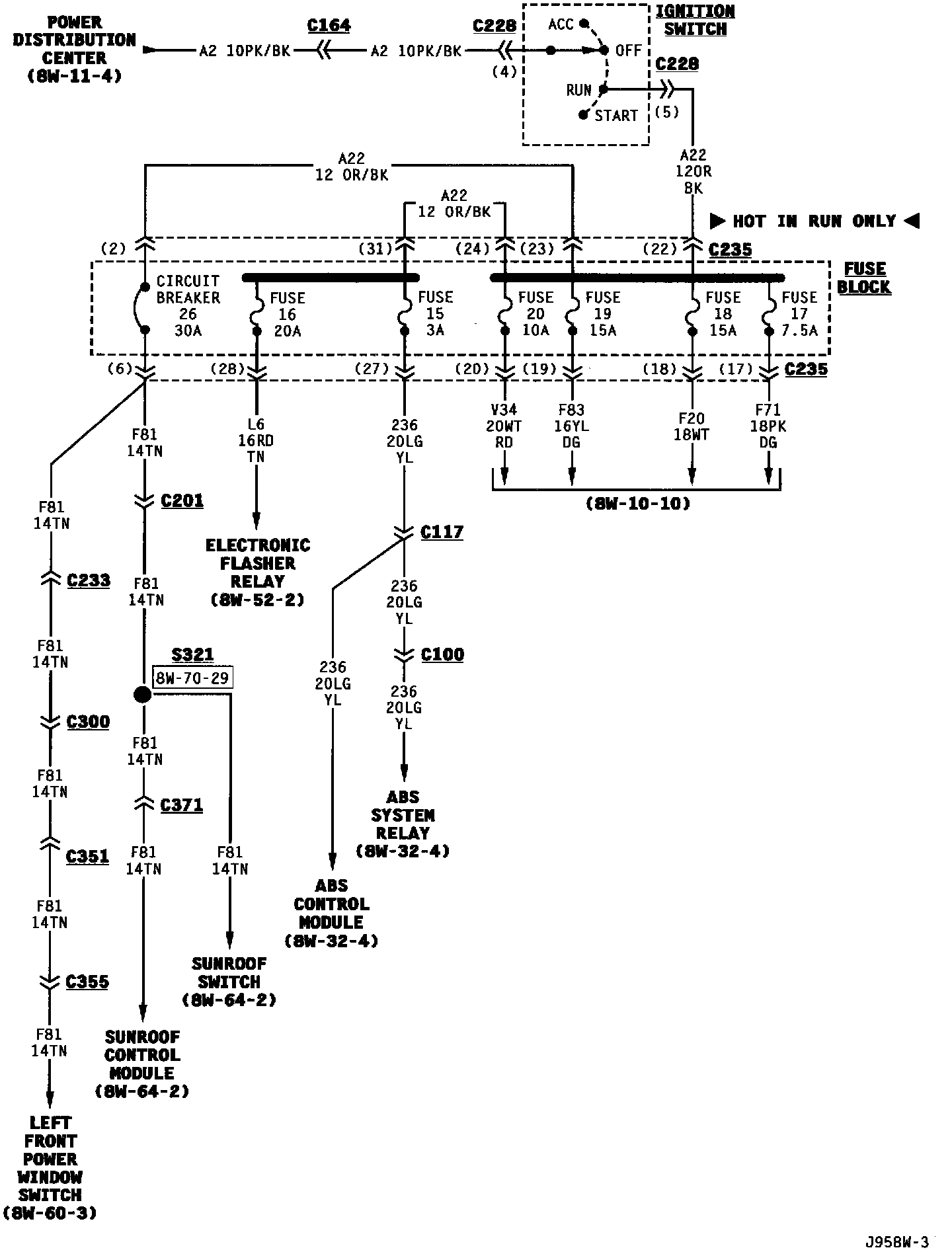

Fuse Block (Part 2 Of 10):

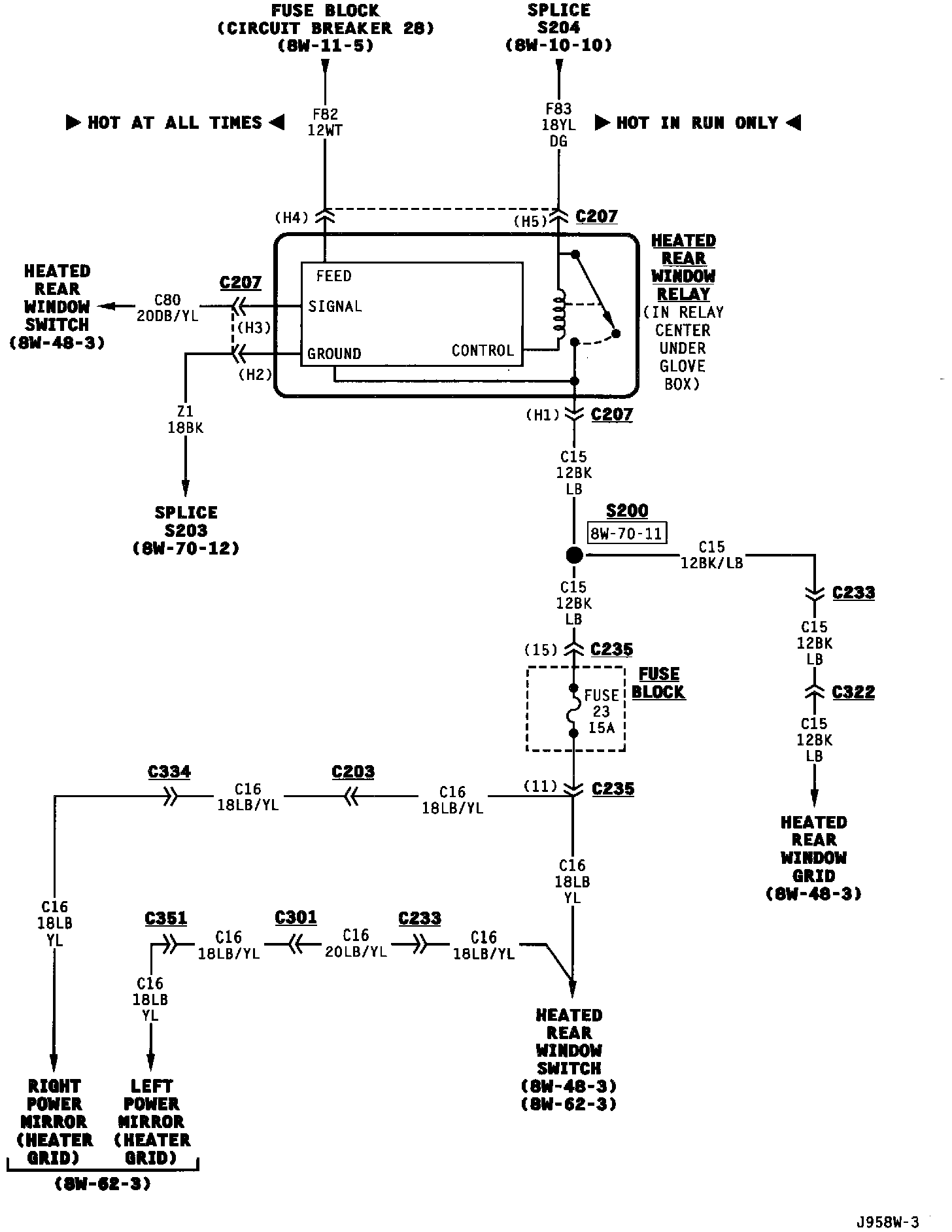

Fuse Block (Part 3 Of 10):

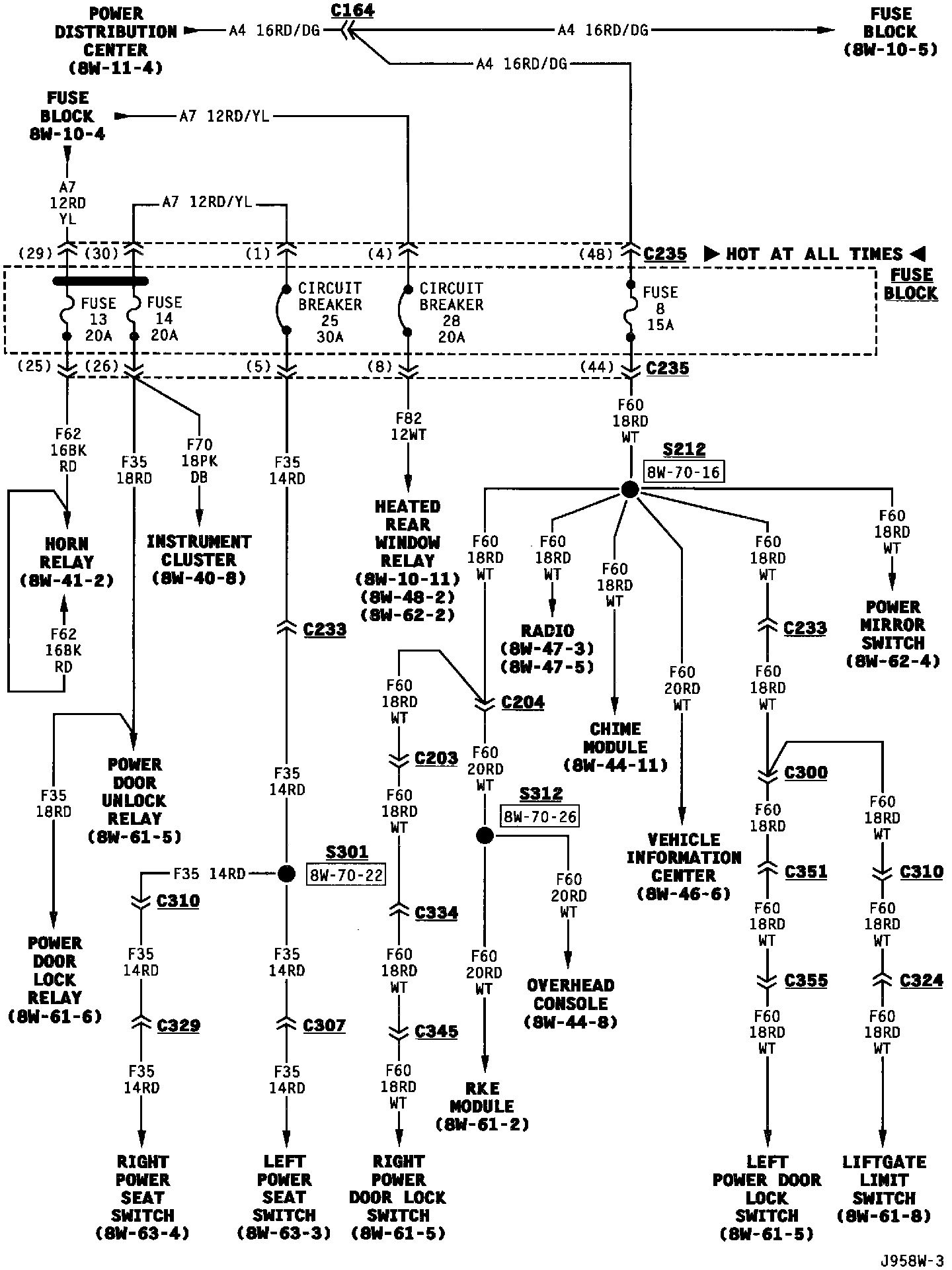

Fuse Block (Part 4 Of 10):

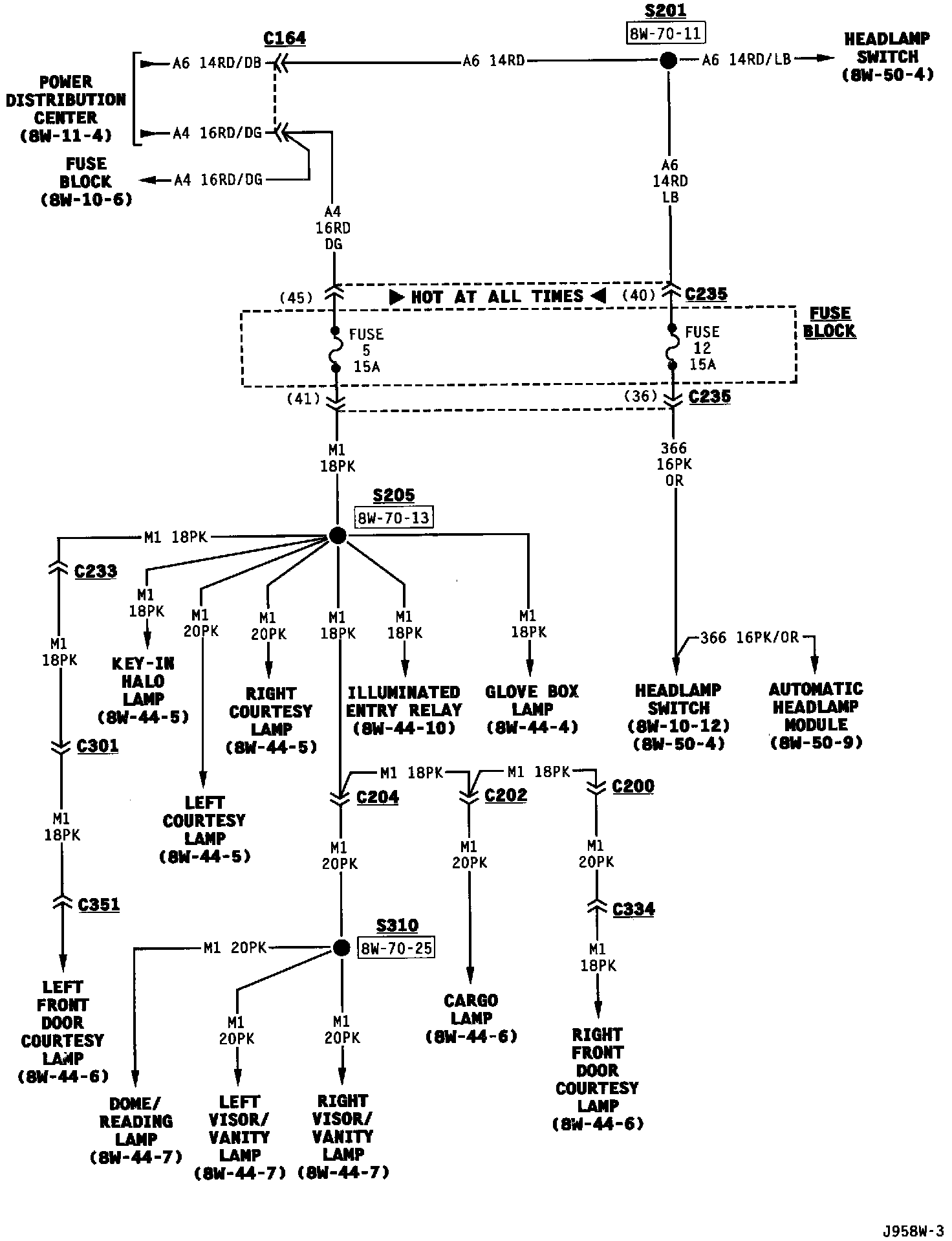

Fuse Block (Part 5 Of 10):

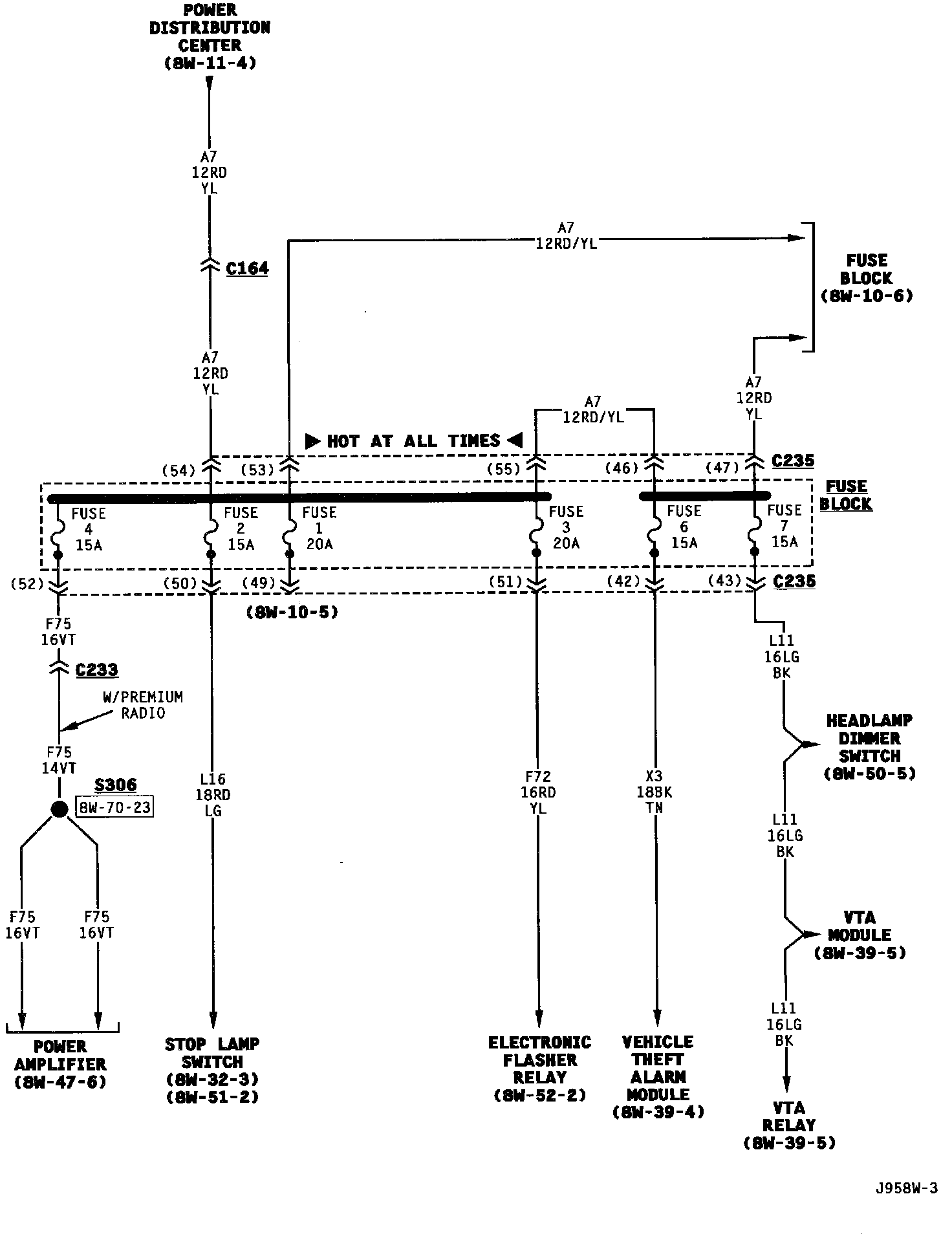

Fuse Block (Part 6 Of 10):

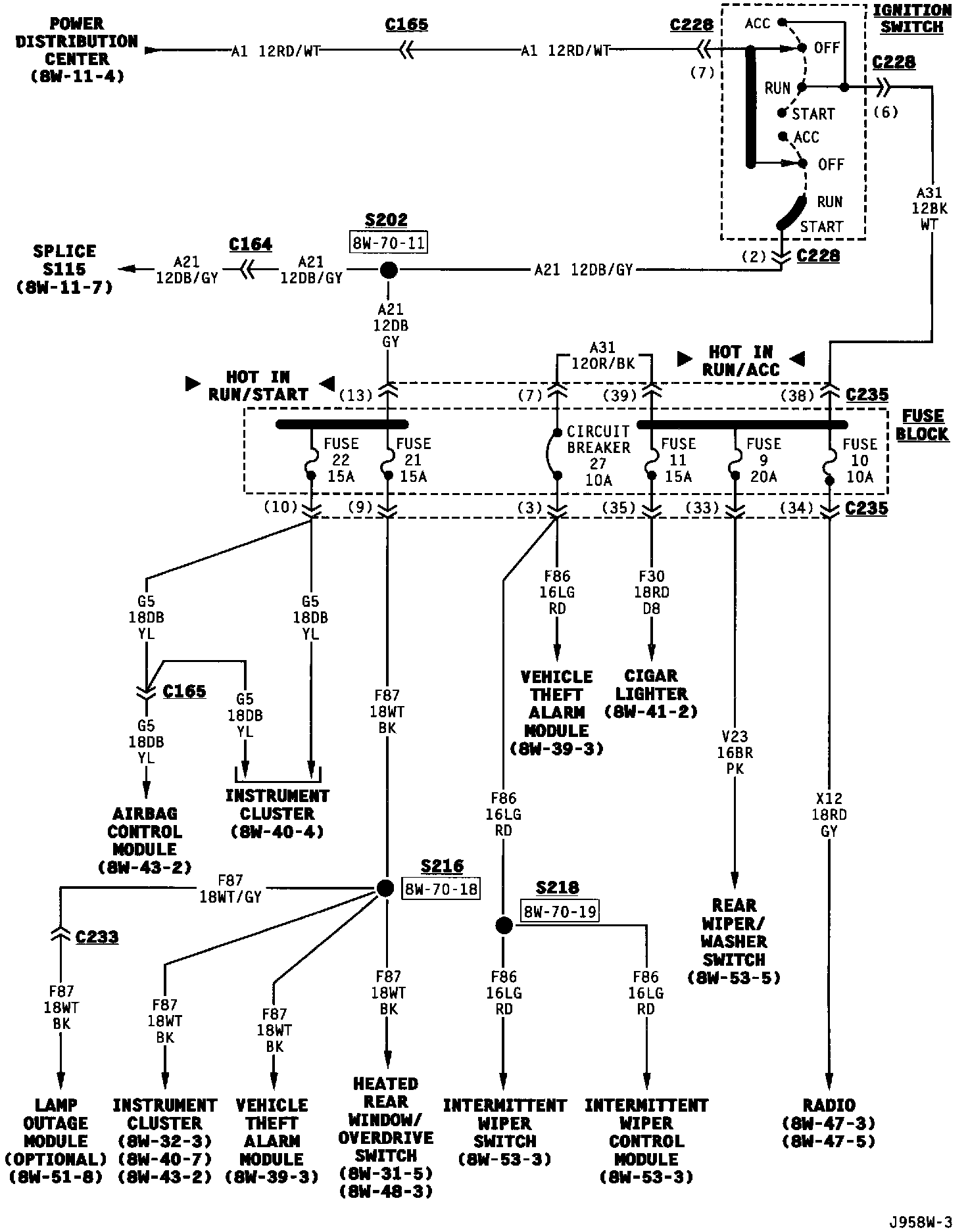

Fuse Block (Part 7 Of 10):

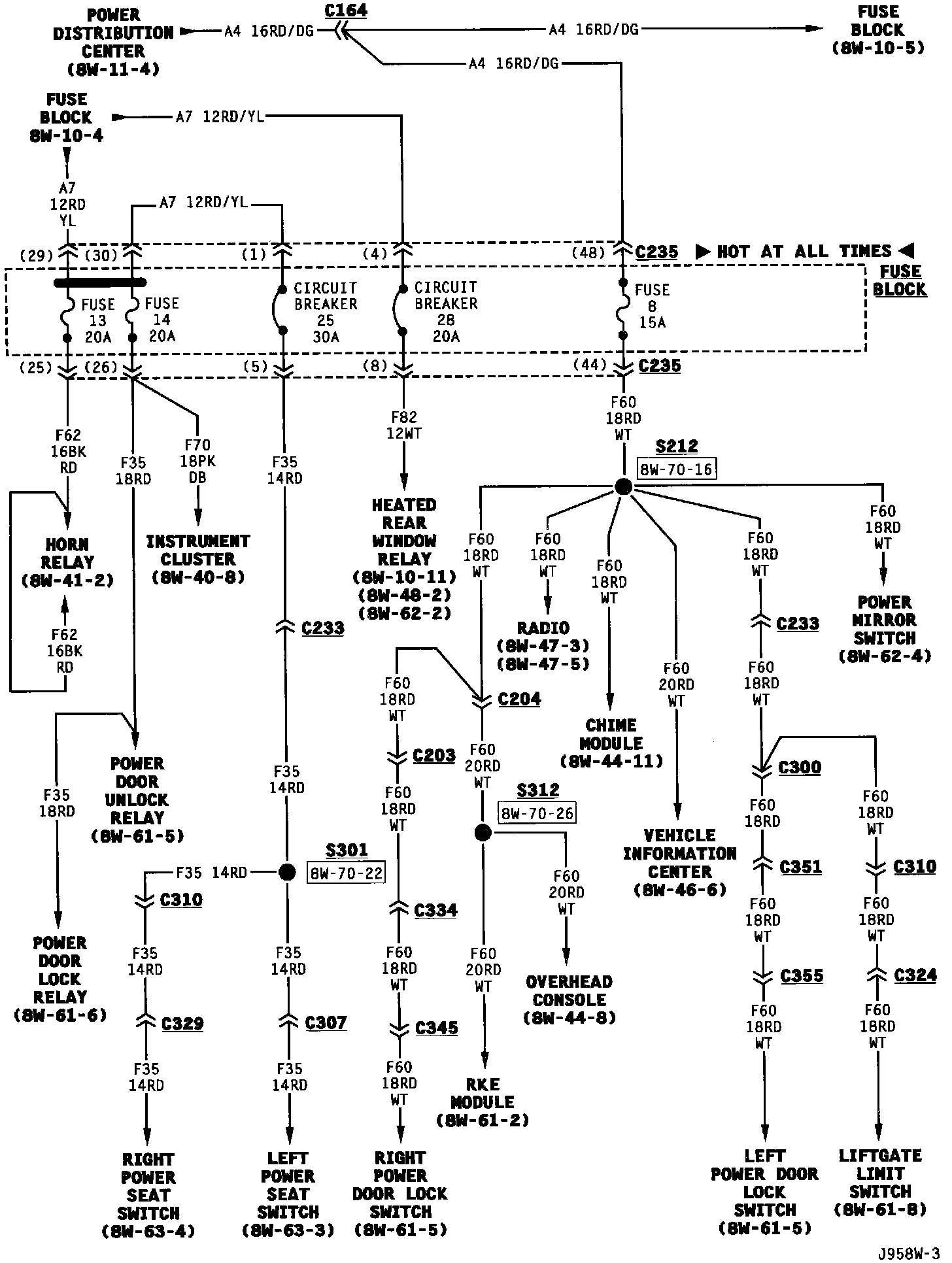

Fuse Block (Part 8 Of 10):

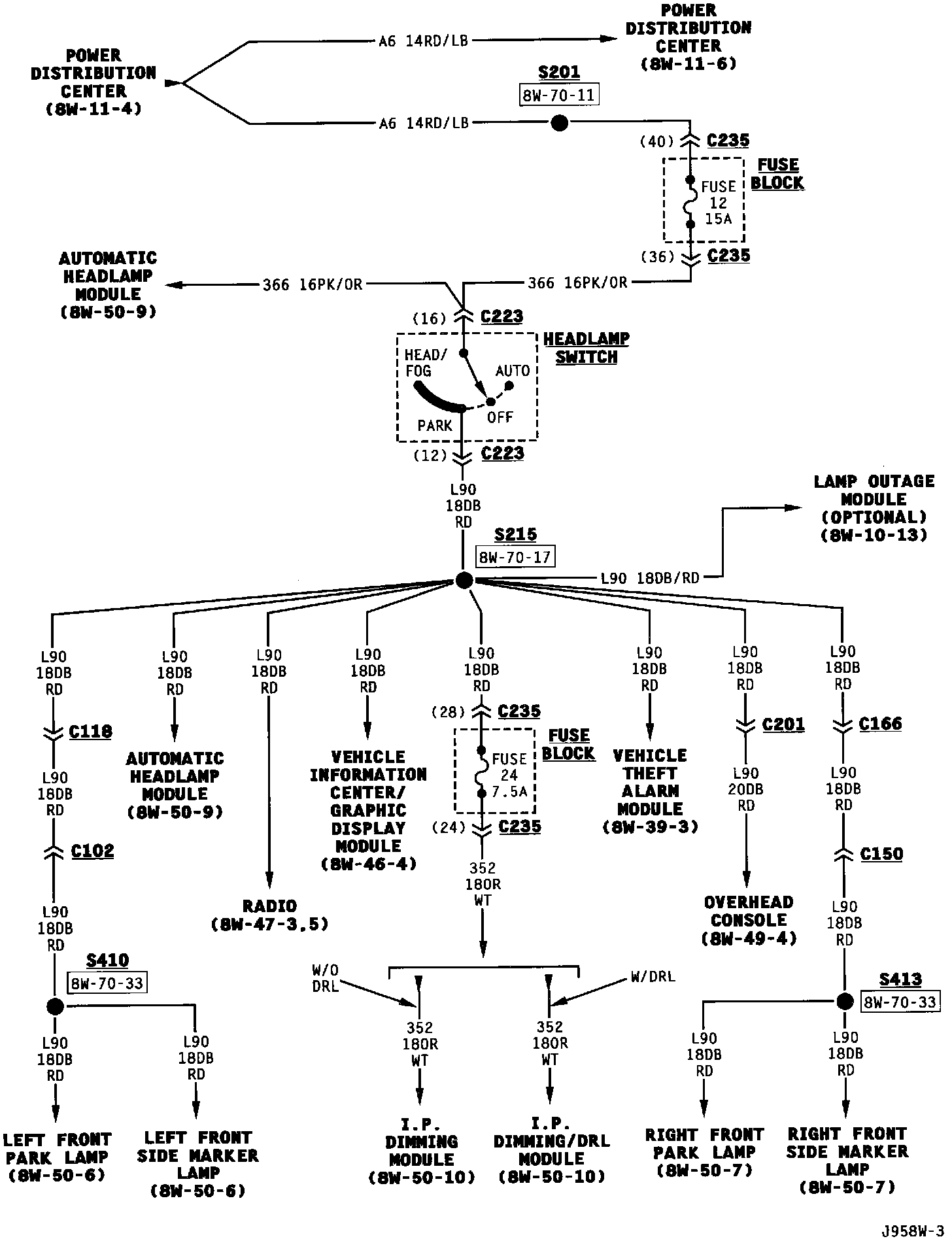

Fuse Block (Part 9 Of 10):

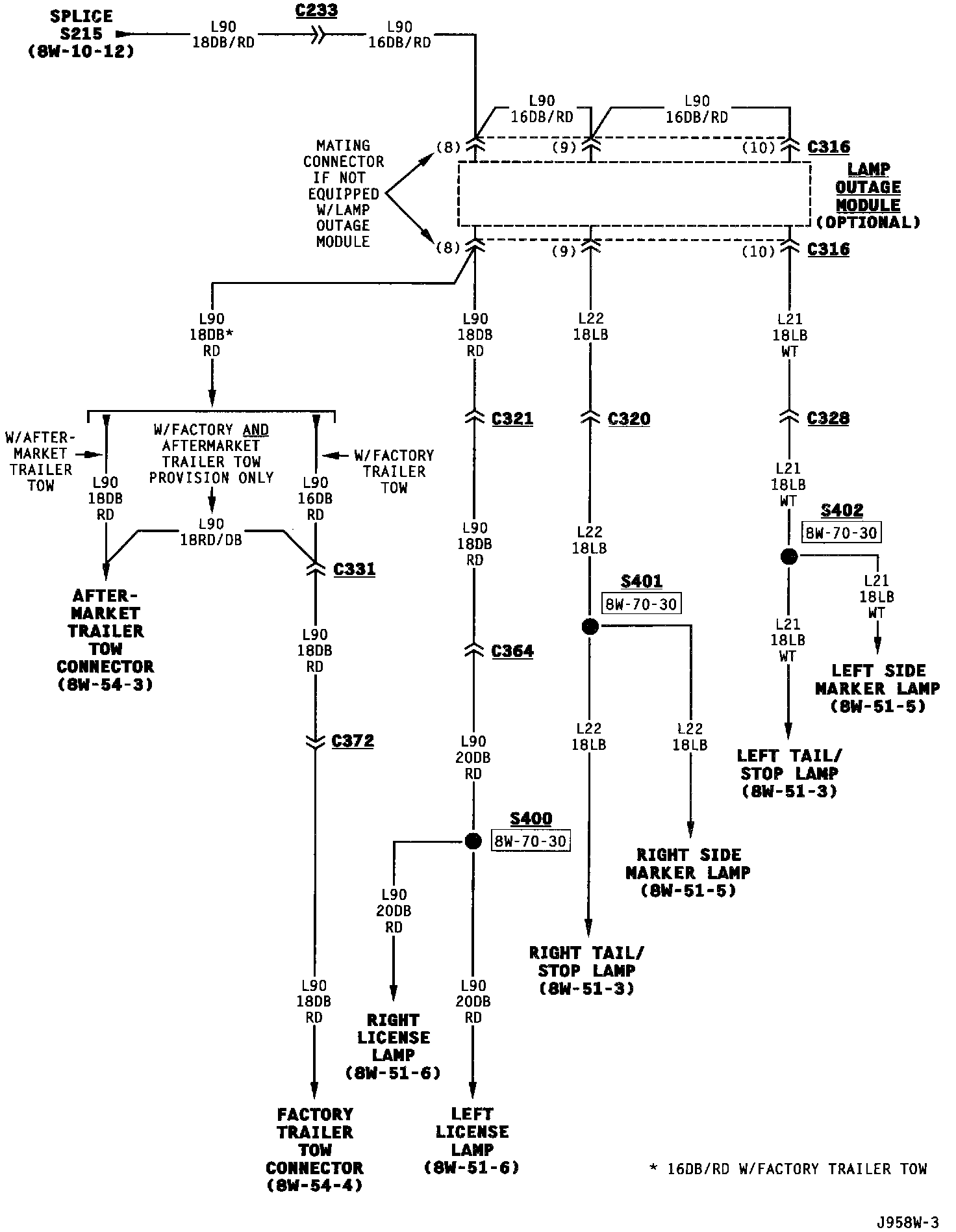

Fuse Block (Part 10 Of 10):

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
