Jeep Truck
>>
1995
>>
Grand Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

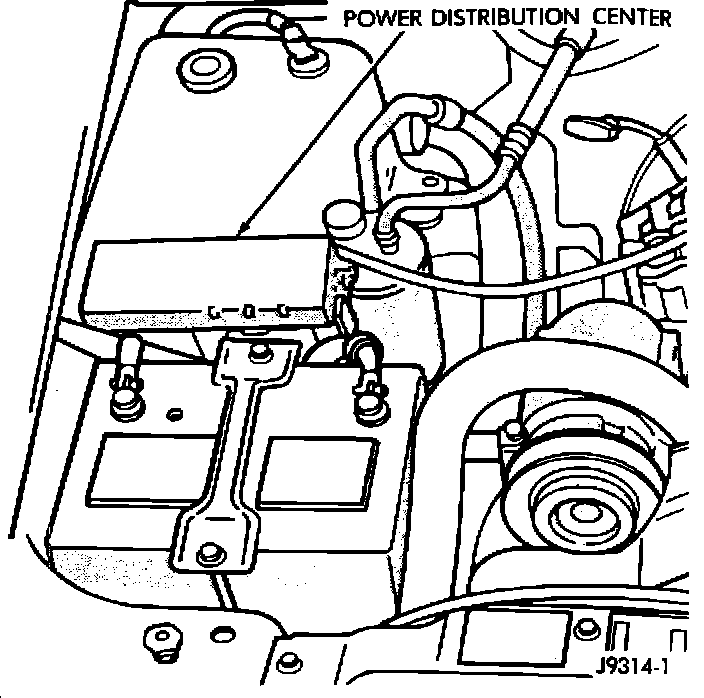

Top Of Power Distribution Center:

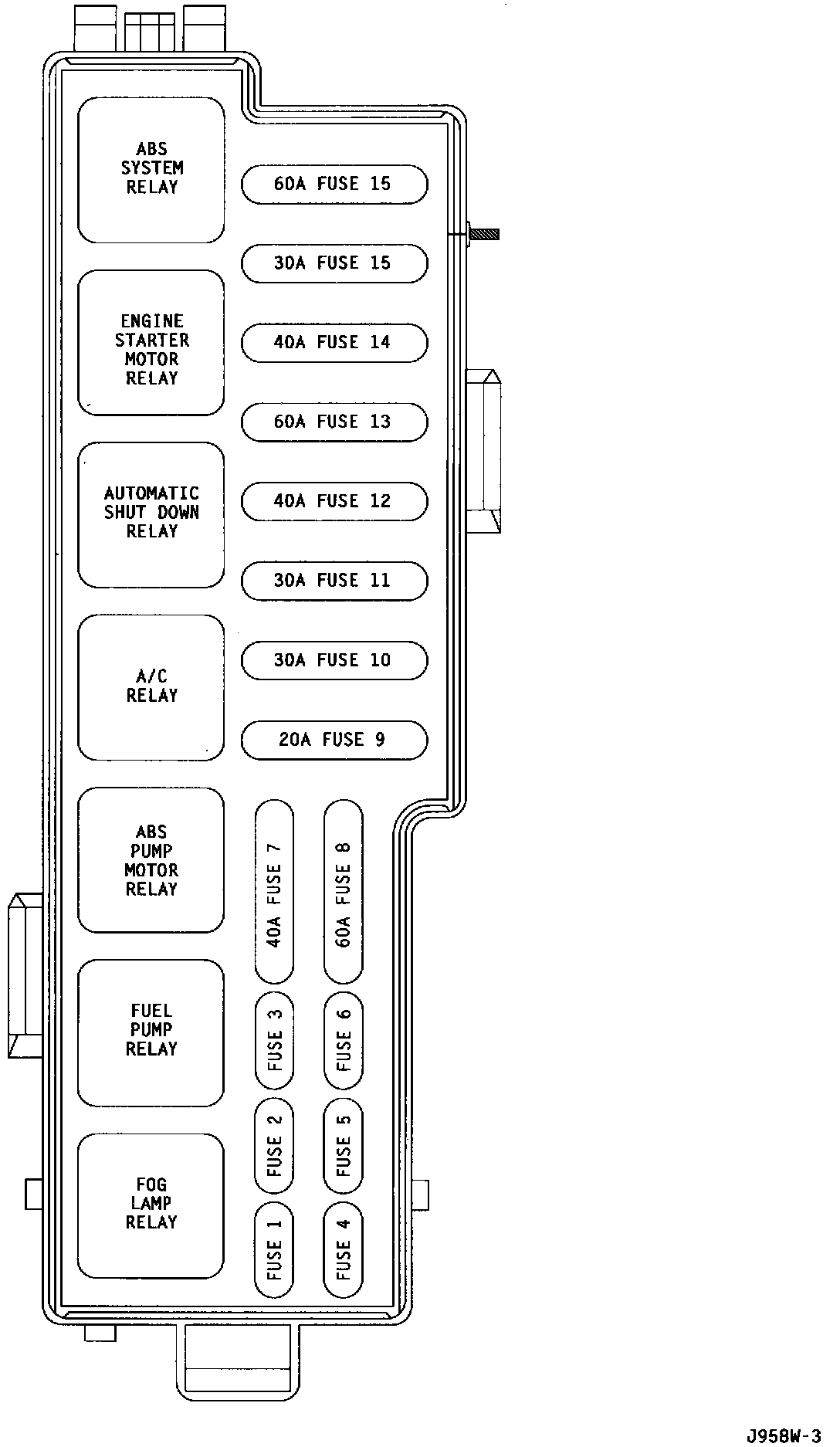

Power Distribution Center:
The Automatic Shutdown
(ASD)
relay is located inside the Power Distribution Center, next to the battery.
