Power Distribution

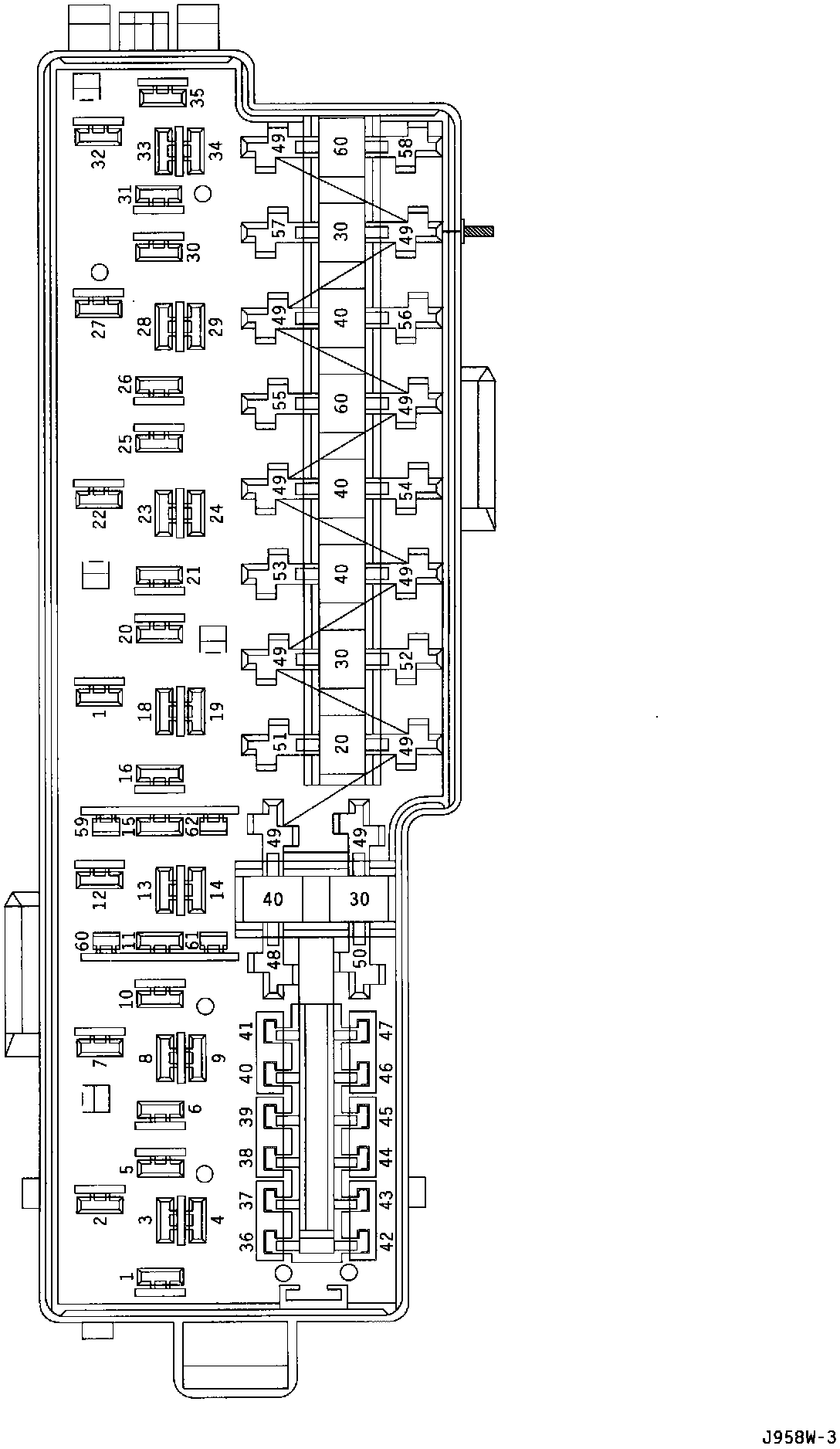

Top Of Power Distribution Center:




Back Of Power Distribution Center:






NOTE: To view sheets referred to in these diagrams, Diagrams Electrical
