Removal

REVIEW ALL WARNINGS AND CAUTIONS IN THIS GROUP BEFORE PERFORMING THIS OPERATION.

1. Recover refrigerant from A/C system.
2. Disconnect A/C lines.
3. Remove hose clamps and dash grommet retaining screws.

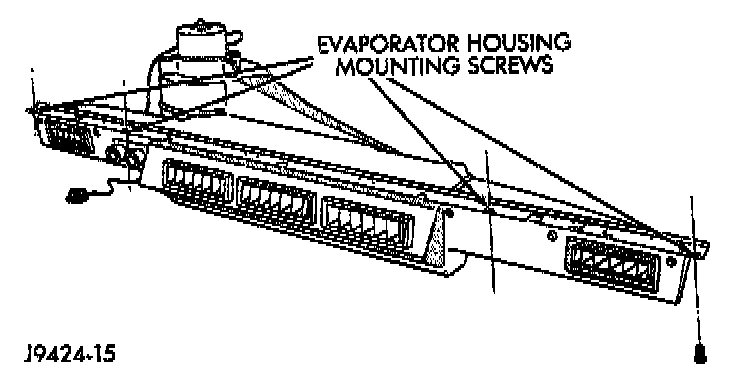

4. Remove the evaporator housing-to-instrument panel attaching screws and the housing mounting bracket screw.
5. Lower the evaporator housing and pull the hoses and hose grommet through the dash opening.

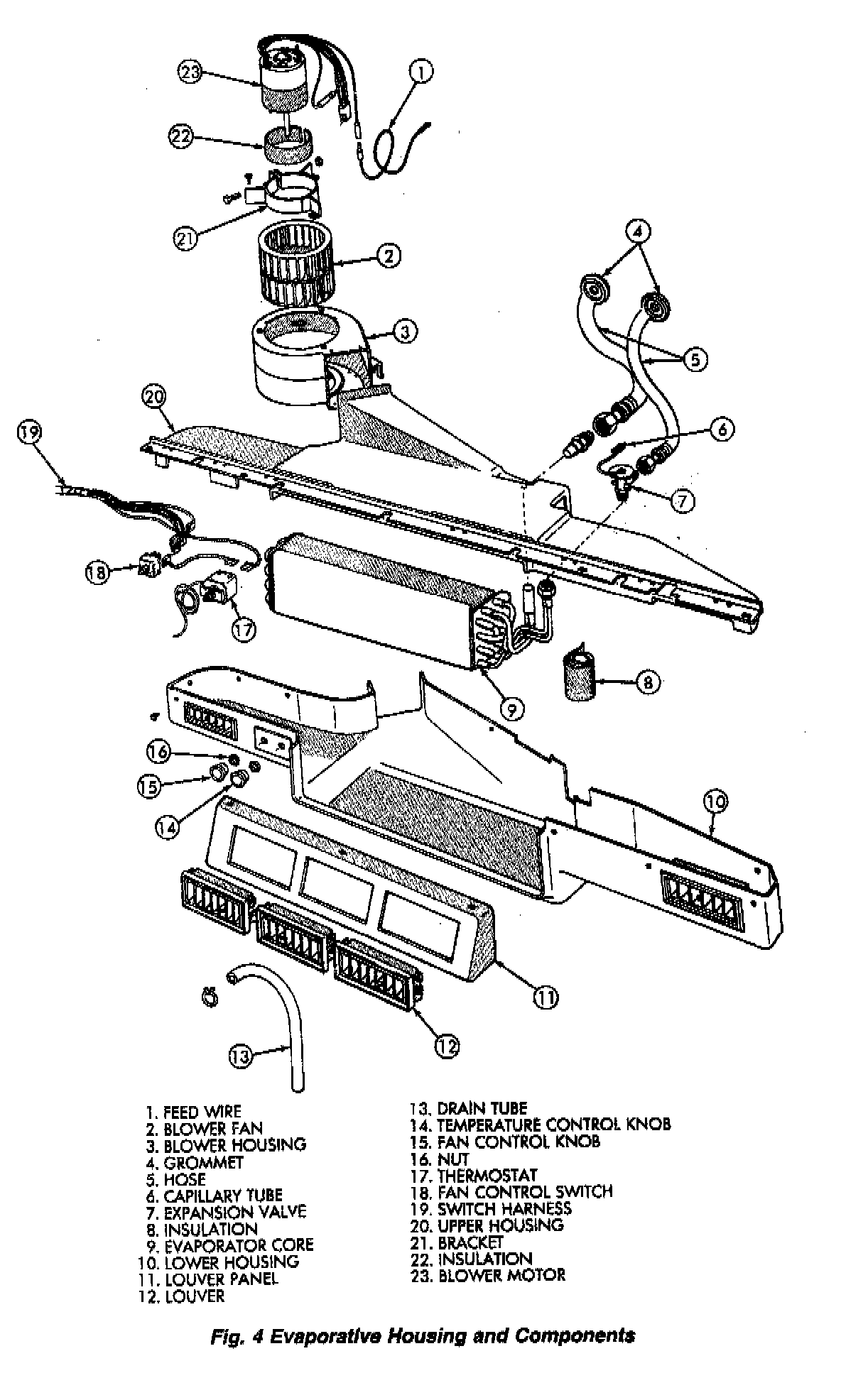

6. Remove upper housing and remove evaporator. The evaporator core, control switches, expansion valve, blower motor and housing can be serviced after removing evaporator housing.
