Rear Door Window Regulator

REMOVAL
1. Remove the door trim panel and waterdam.

Regulator-to-Glass Screw Removal/Installation:

2. Remove the window glass attaching screw, bushing and retainer from the regulator. Support the glass.

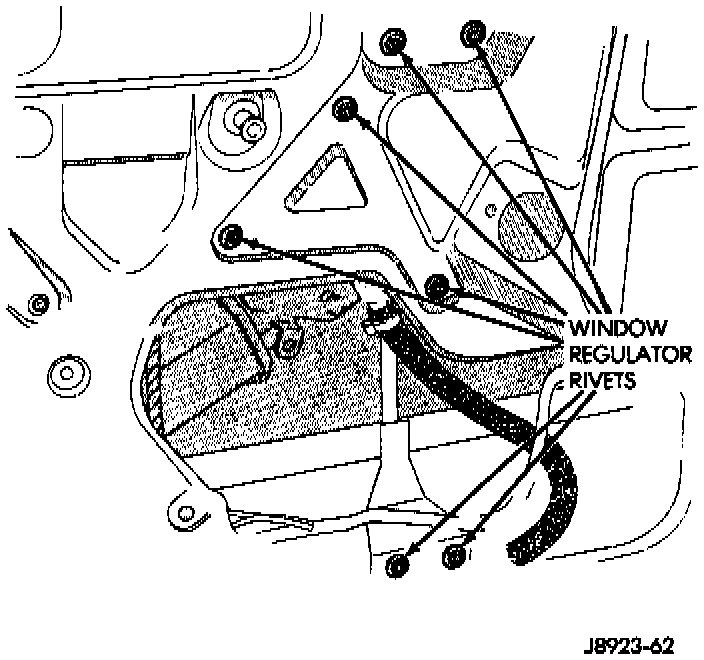

Window Regulator Rivet Locations:

3. Remove the regulator rivets by driving out the rivet center with a punch. Next, drill out the rivet body with a 1/4 inch diameter drill bit.
4. Power window: disconnect the wire harness connector from the regulator drive motor.
5. Remove the regulator and drive motor, if equipped.

INSTALLATION
1. Position window regulator and, if equipped, drive motor within the door panels.

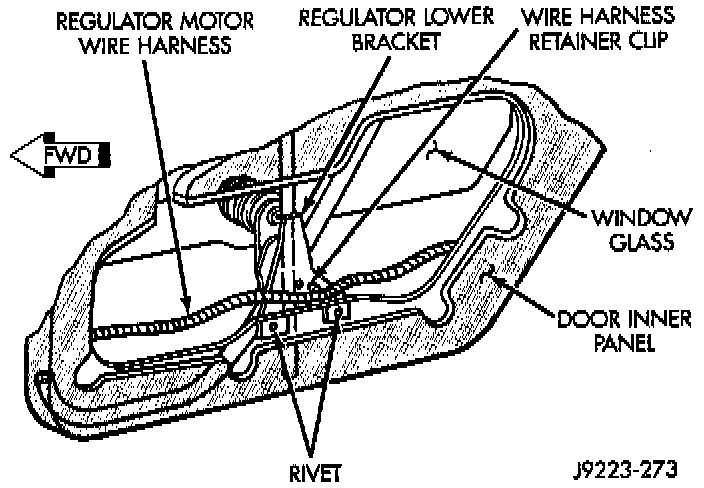

Power Regulator Lower Bracket Rivet Installation:

2. Attach the regulator to door inner panel with replacement rivets or with screws and nuts.
3. Connect the regulator wire harness connector.
4. Position the window glass at the regulator and install the retainer, bushing and screw.
5. Tighten the glass screw to 4 Nm (36 in-lbs) torque.
6. Install the waterdam and trim panel.
