Jeep Truck
>>
1995
>>
Cherokee 4WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Testing and Inspection
>>
Troubleshooting
Troubleshooting

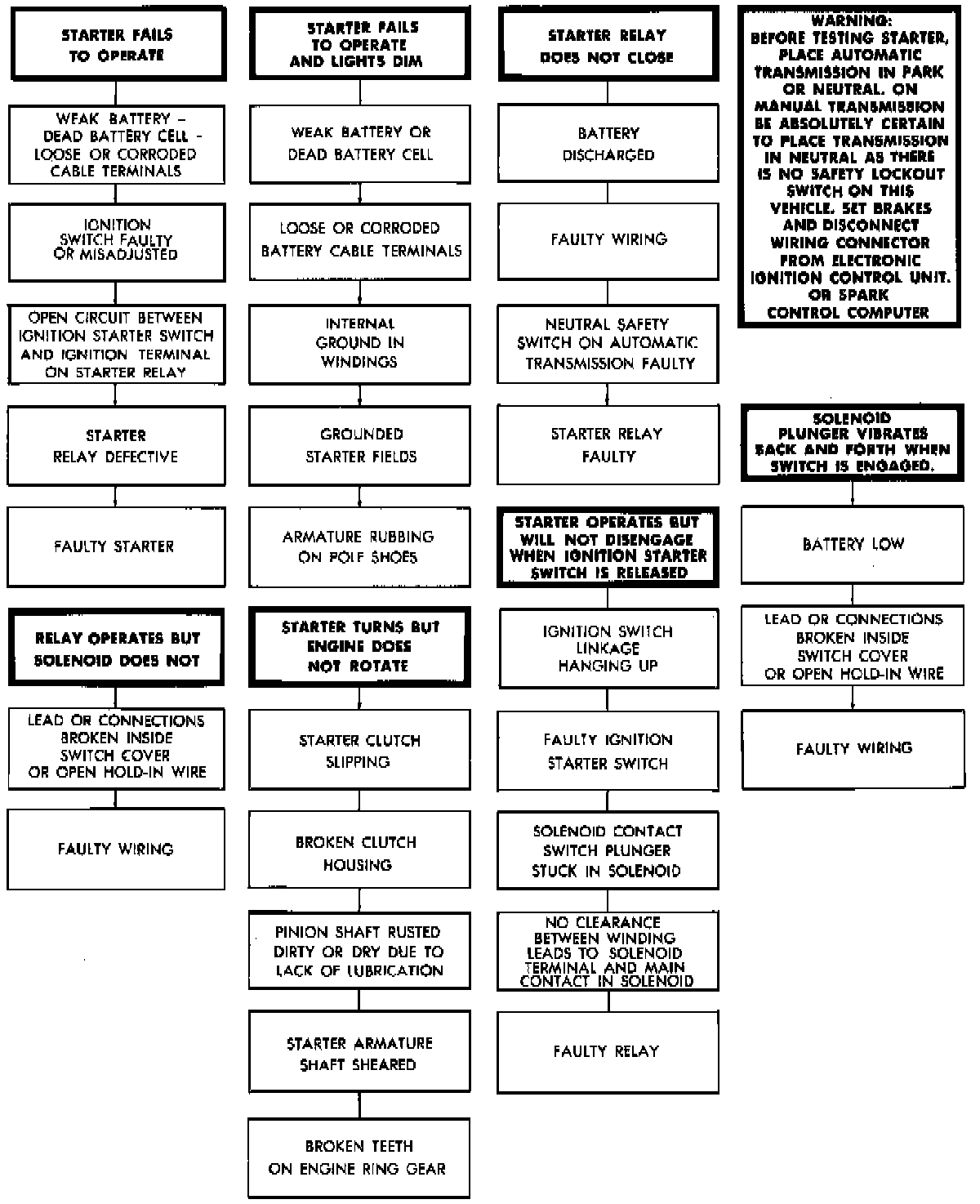

Fig 1 Starter Motor Troubleshooting:

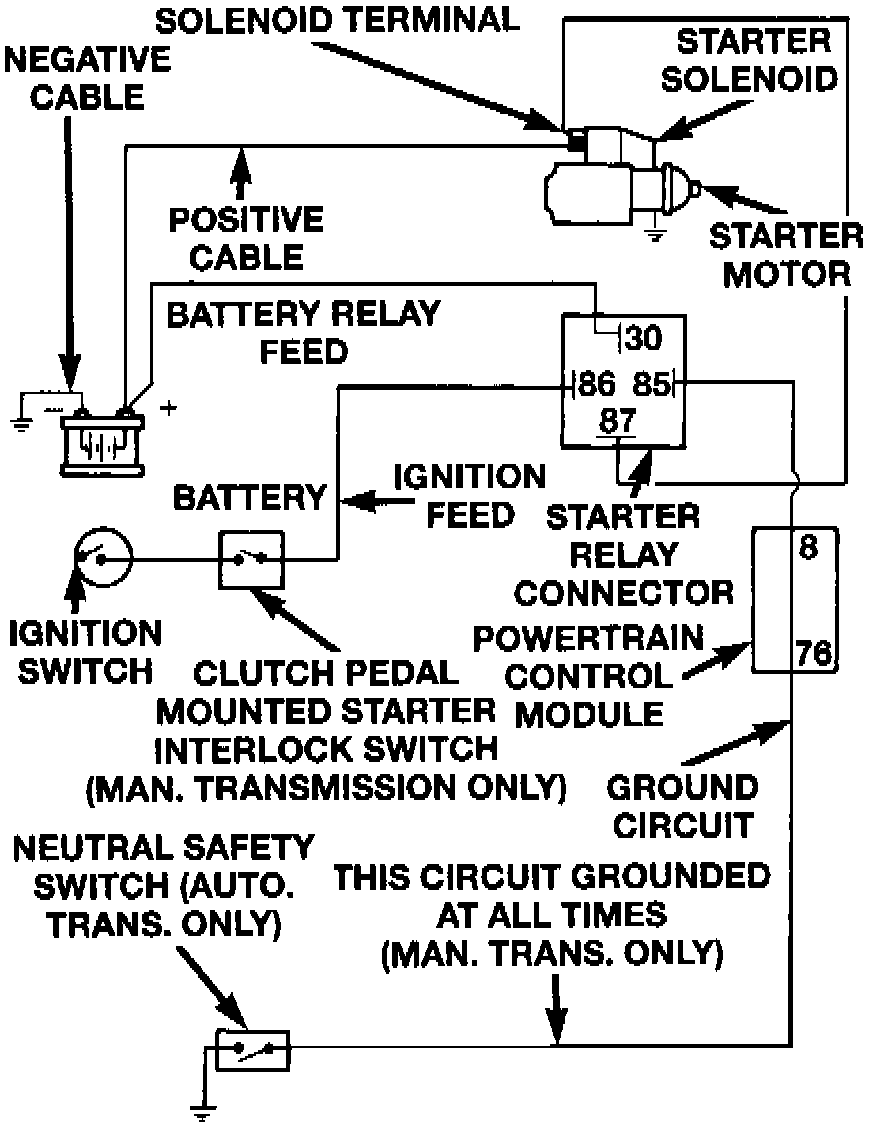

Fig 2 Starting System Components:
