Jeep Truck
>>
1995
>>
Cherokee 4WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

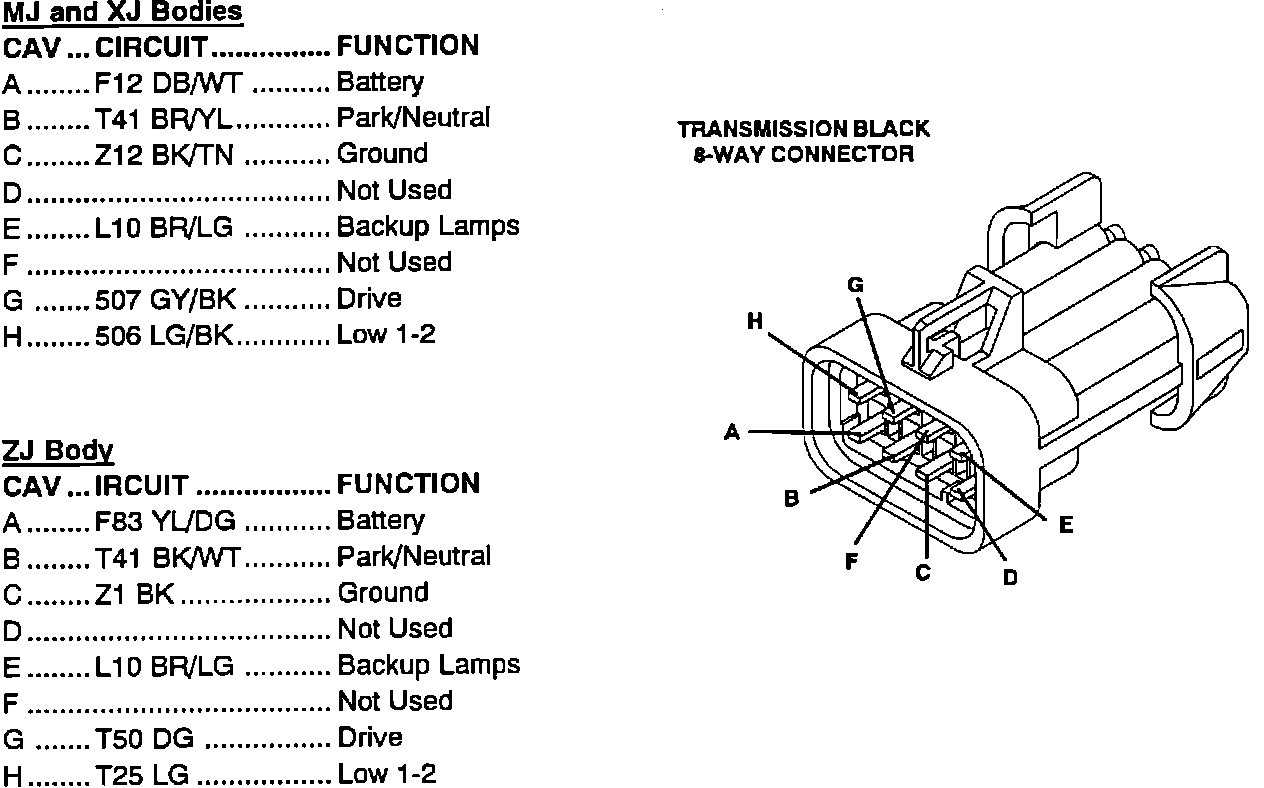

Transmission 8-Way Connector (Black)
Transmission 8-Way Connector (Black)
Transmission 8-way Connector (Black) Pinout ID:
