Jeep Truck
>>
1995
>>
Cherokee 4WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Schematic
Schematic

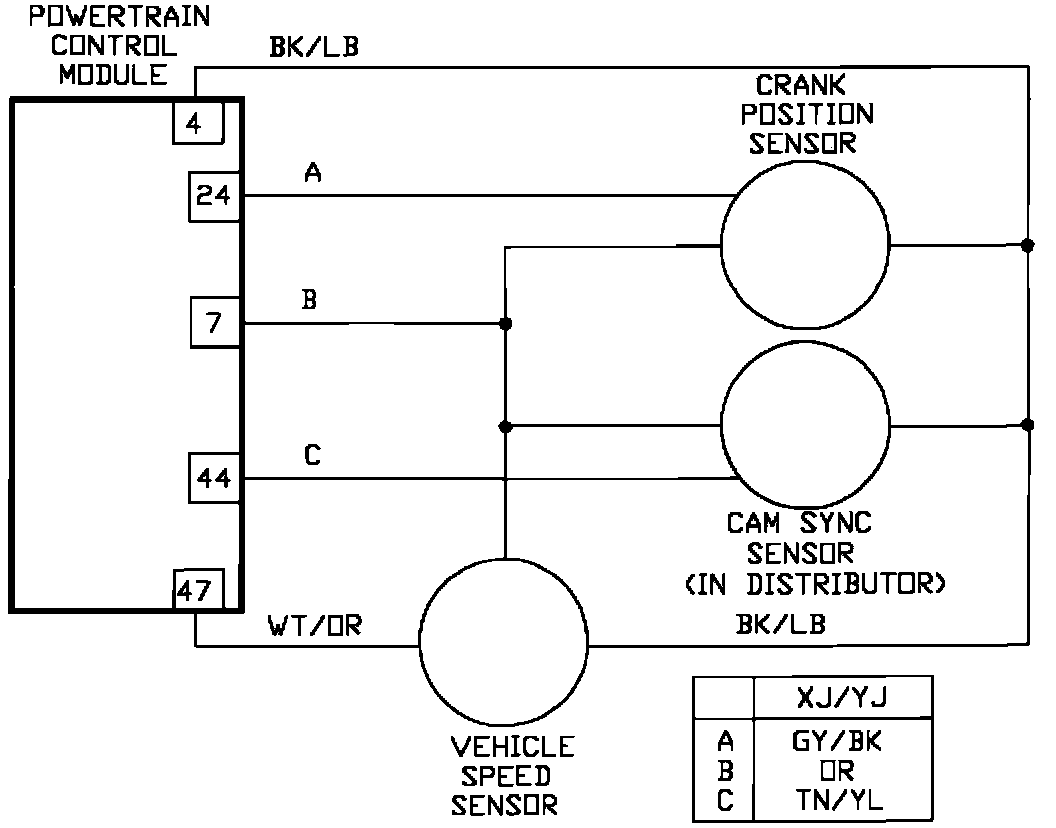

VSS Circuit:
