Seals and Gaskets: Service and Repair

AXLE SHAFT OIL SEALS







(1) Remove the inner axle shaft seals with a pry bar.

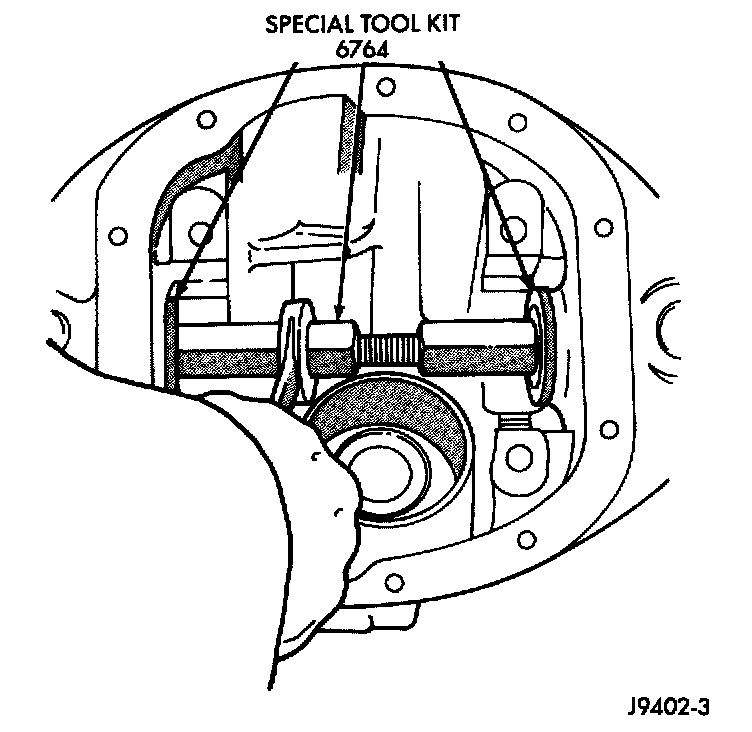

(2) Install oil seals with Discs 6798 and Turn-buckle 6797. Tighten tool until disc bottoms in housing.
