Speedometer Gear, A/T: Service and Repair

REMOVAL
1. Raise and support vehicle.
2. Remove components necessary to gain access to rotor and drive gear, then disconnect speedometer cable and/or speed sensor.

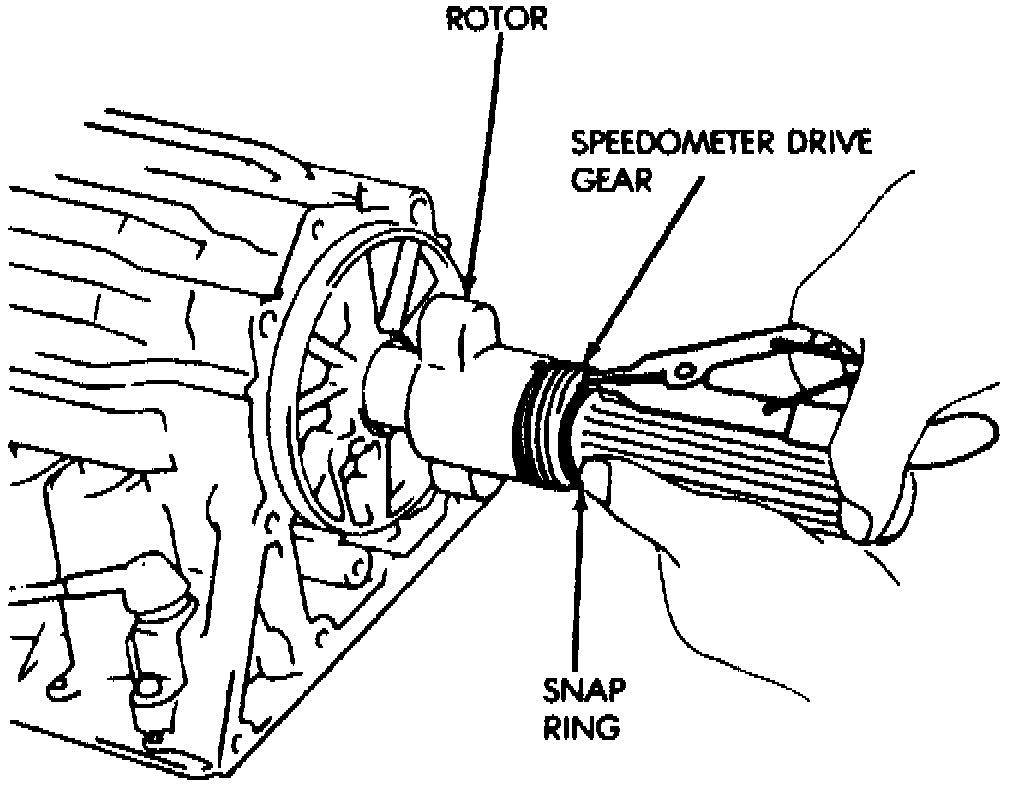

Fig. 23 Speedometer Drive Gear:

3. Remove extension or adapter housing, then the speedometer drive gear snap ring, Fig. 23.
4. Remove speedometer drive gear and spacer (if equipped), then the rotor by carefully prying it off output shaft using wood dowel or hammer handle.

INSTALLATION
1. Clean all sealing surfaces on transmission case and extension/adapter housing.
2. Install rotor, spacer (if equipped) and drive gear on output shaft, then the drive gear snap ring, Fig. 23.
3. Apply a bead of suitable RTV sealer to transmission case sealing surface and install extension/adapter housing and bolts. Tighten bolts to specifications.
4. Install components removed to gain access to rotor drive gear.
