Shift Interlock Cable: Adjustments

1. Shift transmission into Park, then place ignition switch in Lock position.
2. Remove shift lever bezel and console screws, then raise bezel and console to access cable.

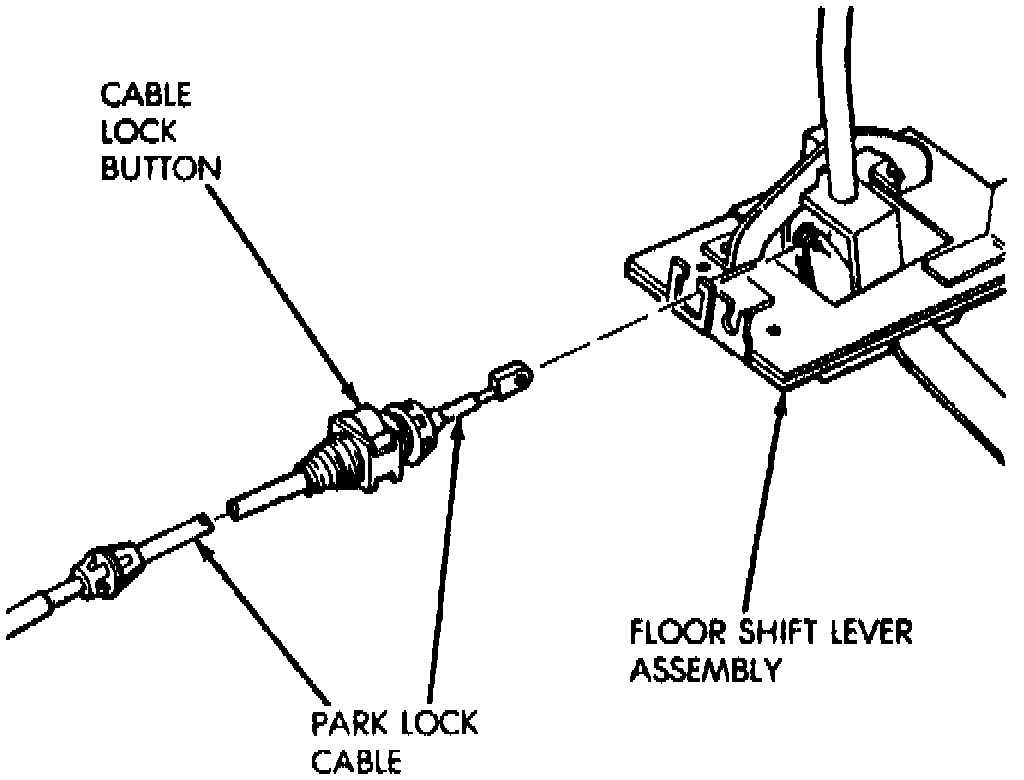

Fig. 5 Park Lock Cable:

3. Pull cable lock button up to release cable, Fig. 5, then pull cable forward. Release cable and press cable lock button down until it snaps in place.
4. Check movement of shift release handle button or shift release lever. No movement should be possible until ignition is in the On position. Place shift lever into the Neutral position. If adjustment is correct, ignition lock cylinder will not be able to be placed in the Lock position when transmission shift lever is in Neutral or Drive. With transmission in the Park position, ignition lock cylinder should turn freely.
