Jeep Truck
>>
1995
>>
Cherokee 4WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams
>>

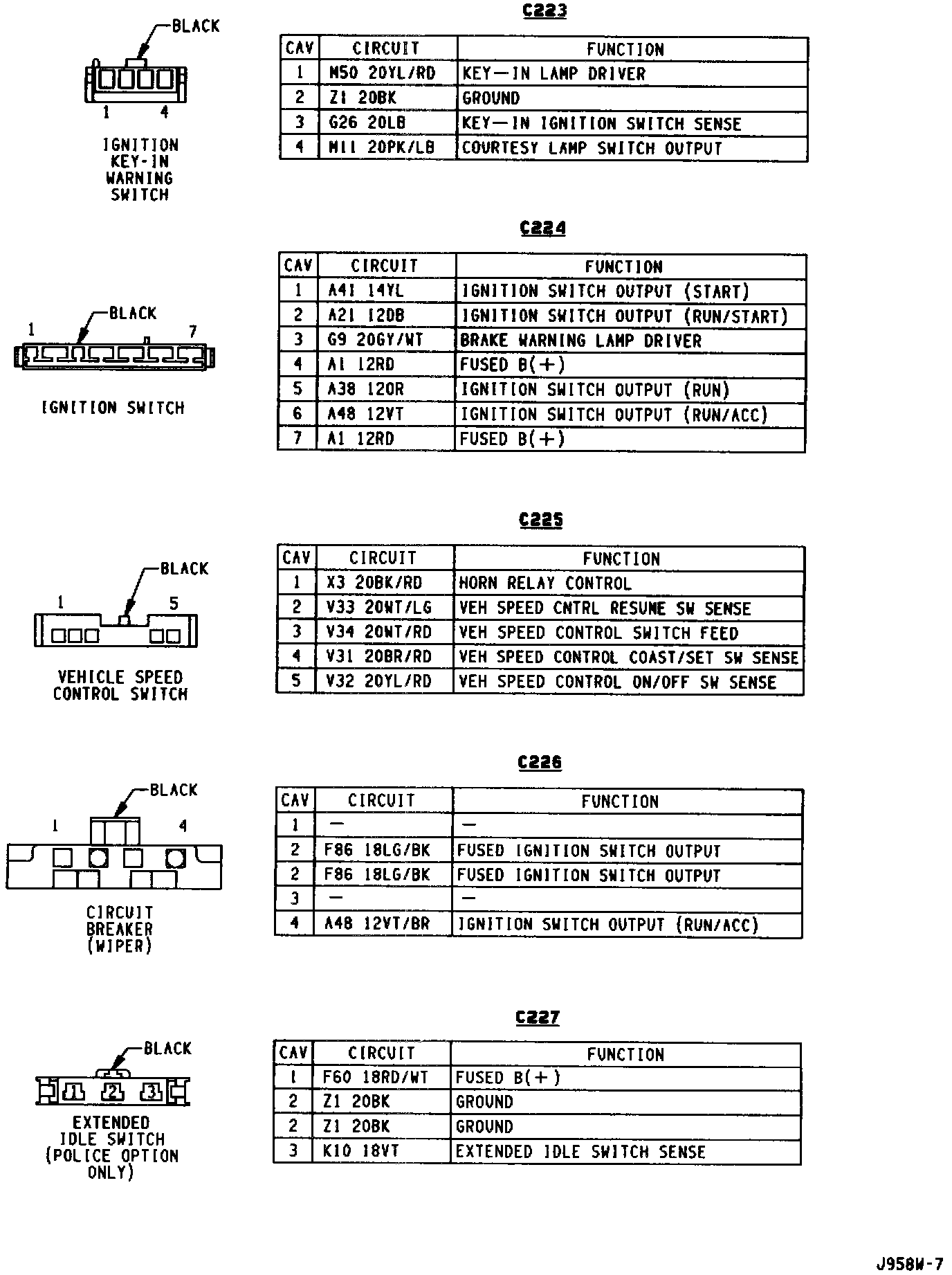

Connector Views
Connector Views
Connector Pin Outs (Part 24 Of 48):
