Fuel Pressure Test Port: Locations

WARNING: The fuel system is under constant pressure, even when the engine is OFF. Always release fuel pressure before servicing any fuel system component.

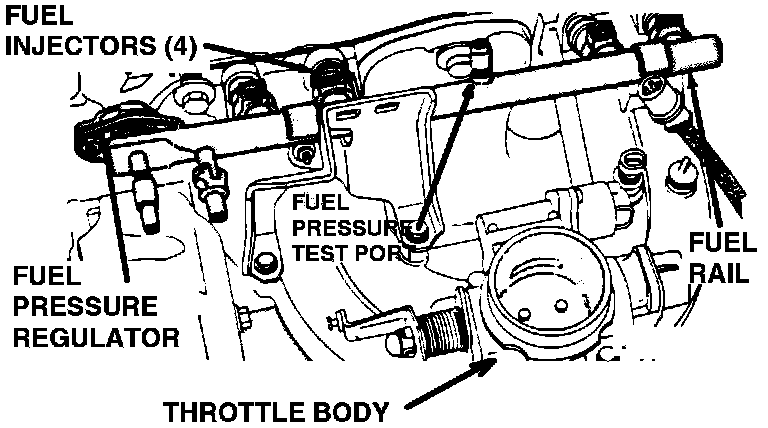

Fuel Injector Rail (Typical):

The fuel pressure test port is located on the fuel rail.
