Fuel Injector Test

Fuel Injector Diagnosis - Engine Runs Rough Or Has Miss:

PROCEDURE
1. Disconnect the fuel injector wire harness connector from the injector.

2. Place an ohmmeter across the injector terminals.

^ Resistance reading should be approximately 14.5 ohms +/- 1.2 ohms at 20°C (68°F).

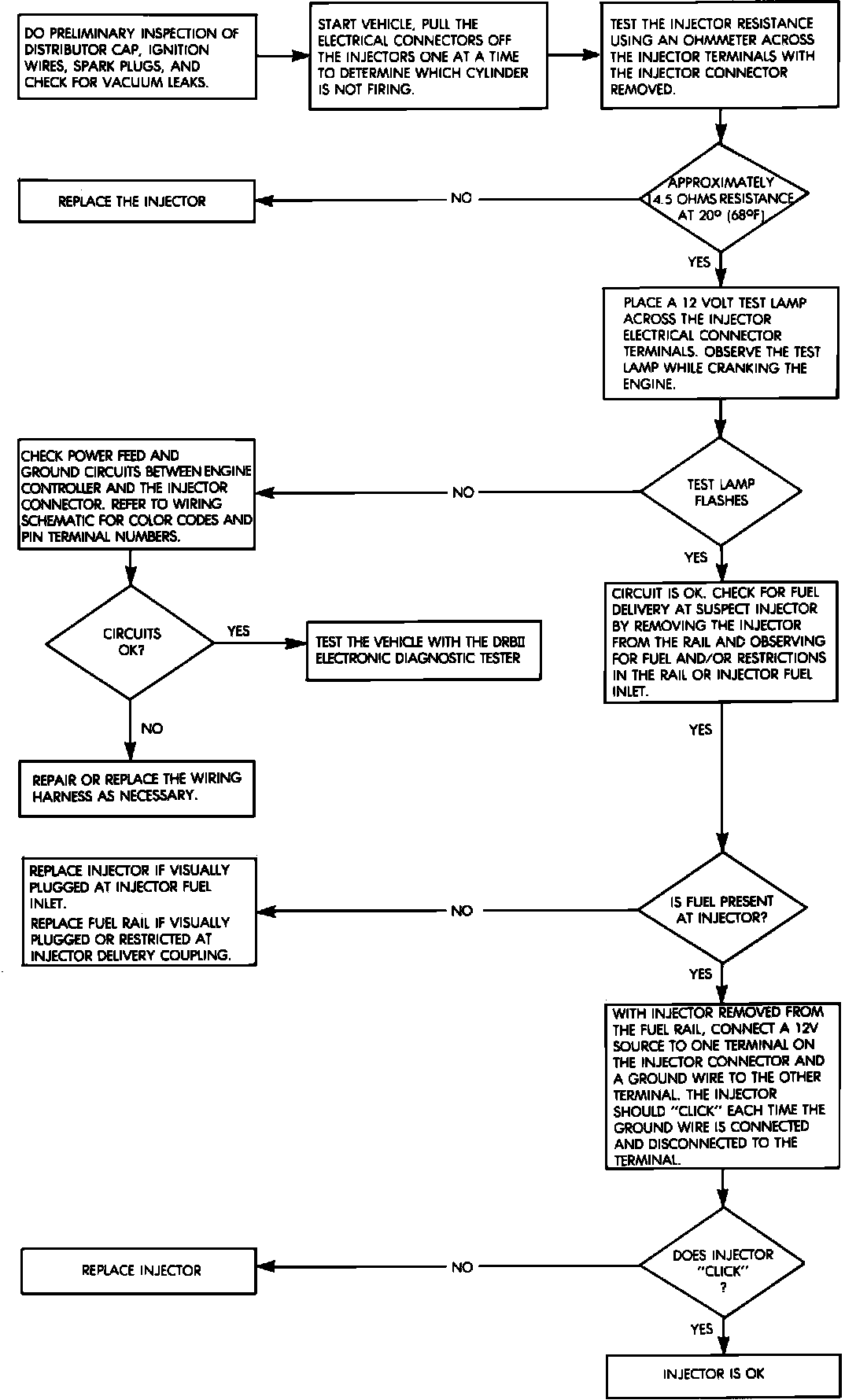

^ See IMAGE for Fuel Injector diagnosis chart.
