Jeep Truck
>>
1995
>>
Cherokee 4WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Fluid Pump Relay
Brake Fluid Pump Relay

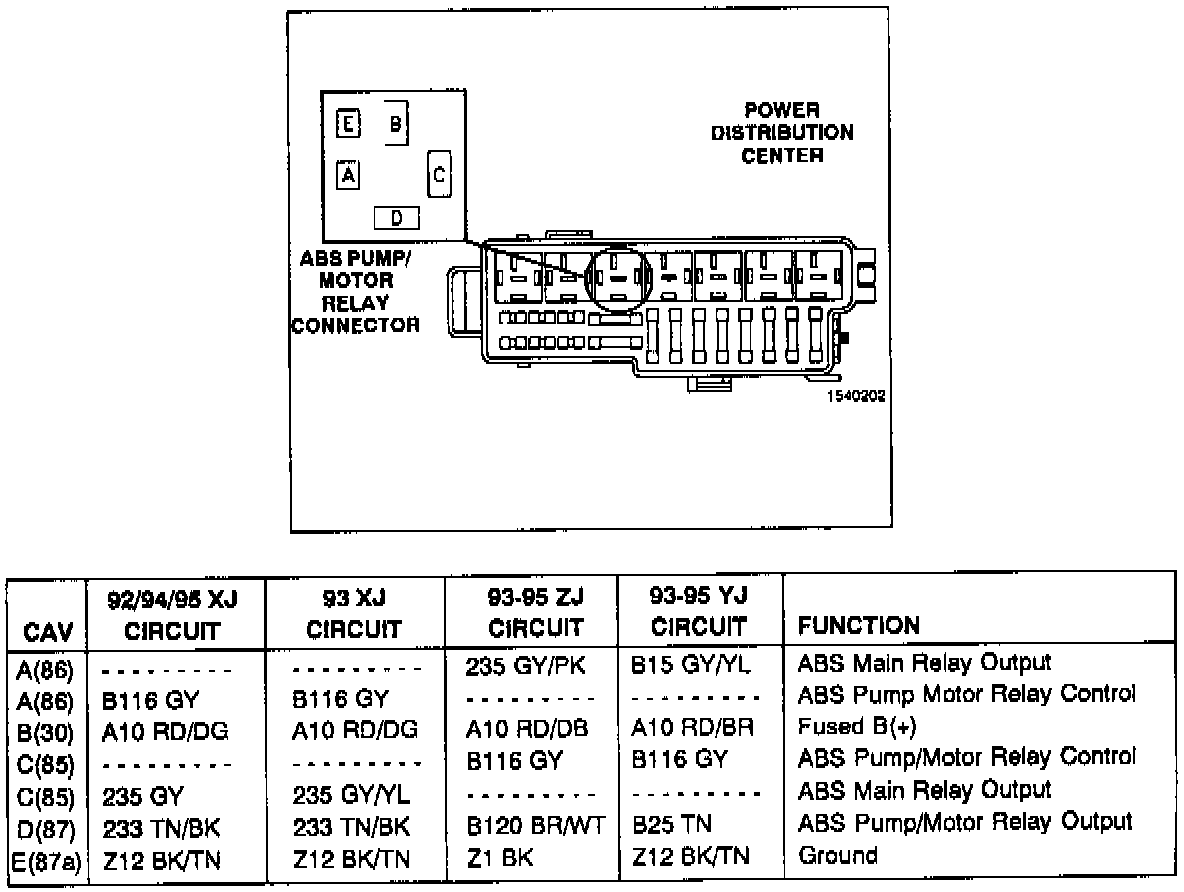

ABS Pump/Motor Relay Connector:
