Home
>>
Jeep Truck
>>
1995
>>
Cherokee 4WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Cruise Control
>>
B Speed Control Solenoid Circuits
B Speed Control Solenoid Circuits

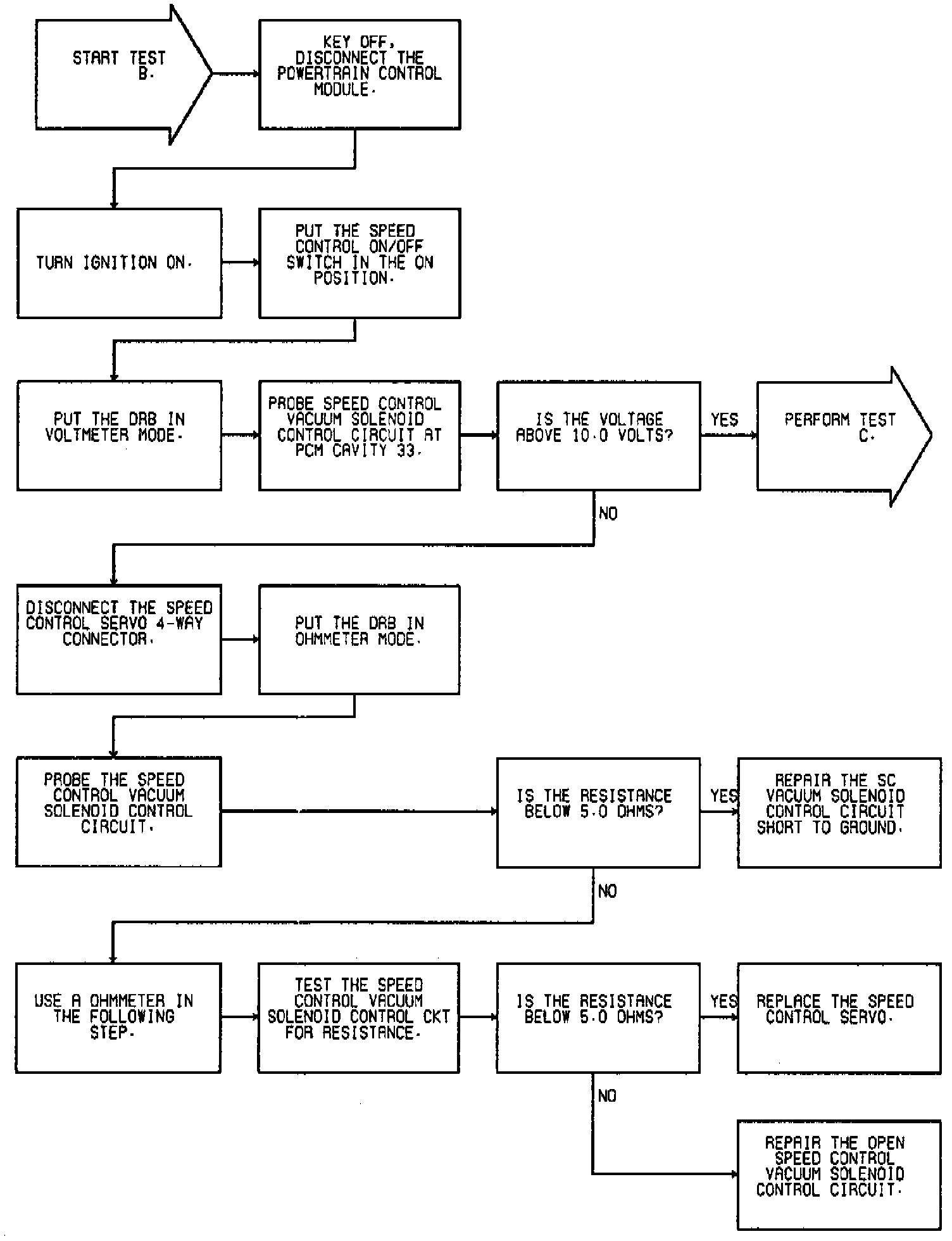

Fig. 90 Test B: Speed Control Solenoid Circuits:
