Jeep Truck
>>
1995
>>
Cherokee 4WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 15 - Pump Motor Circuit Not Working Properly
>>

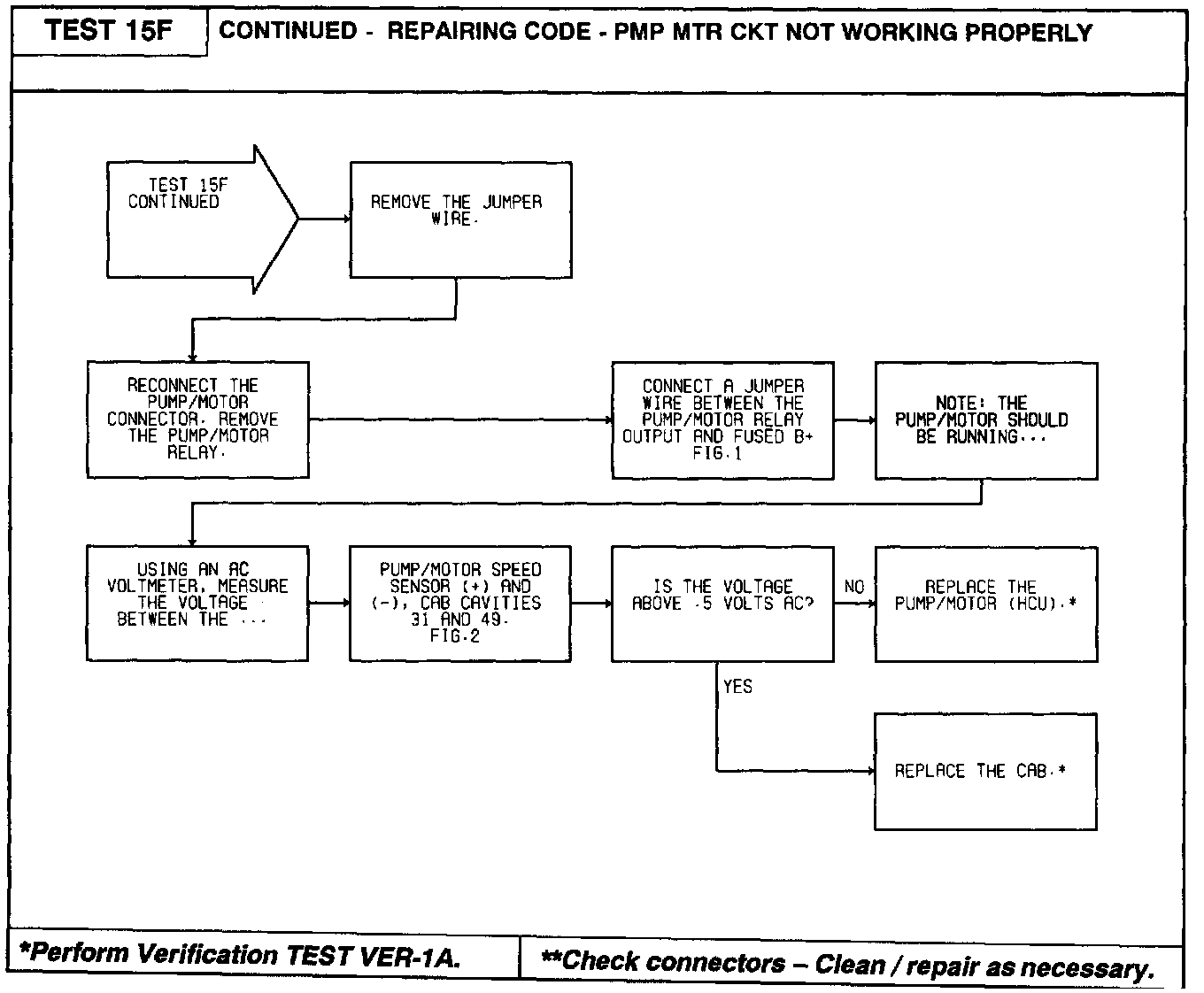

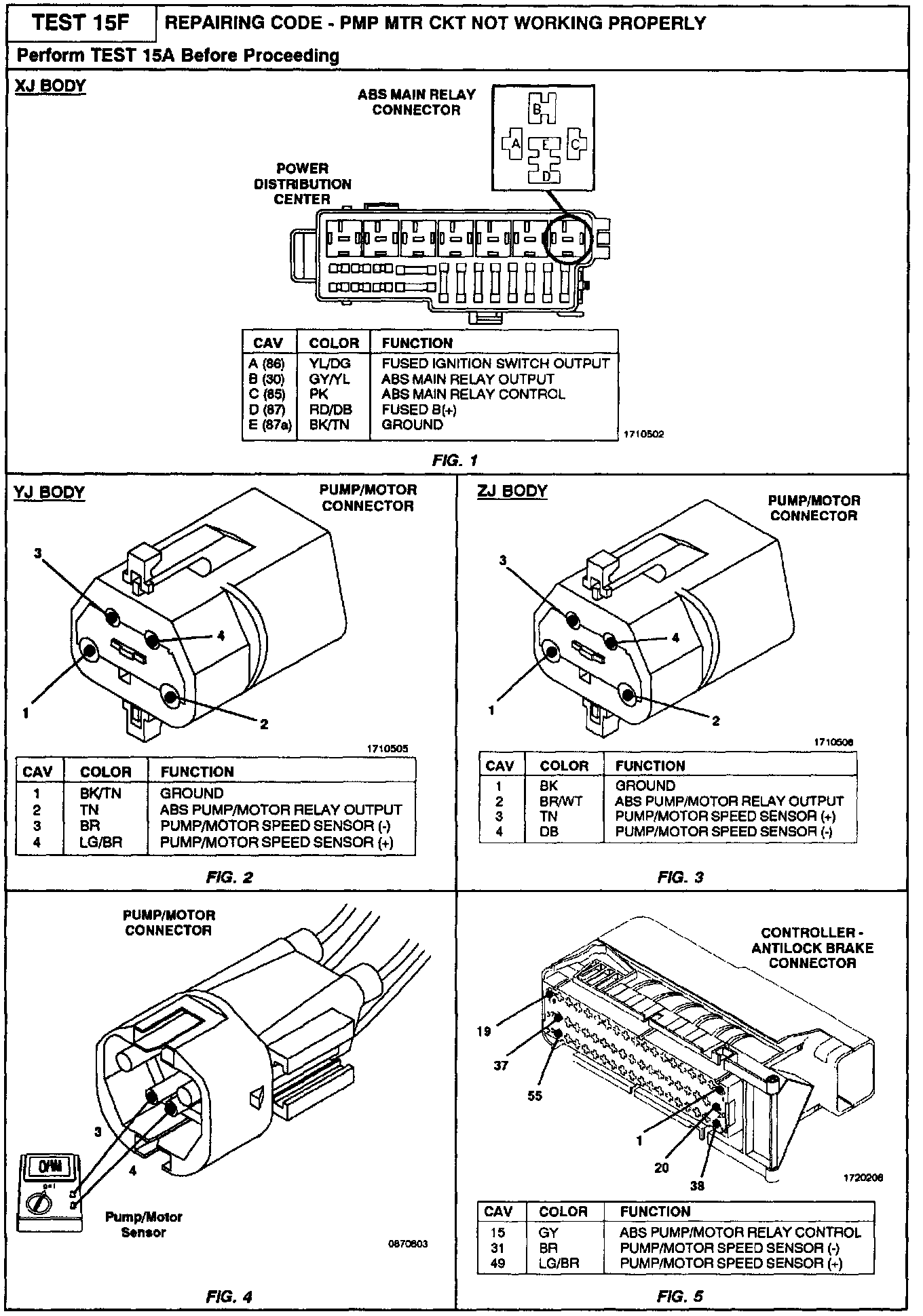

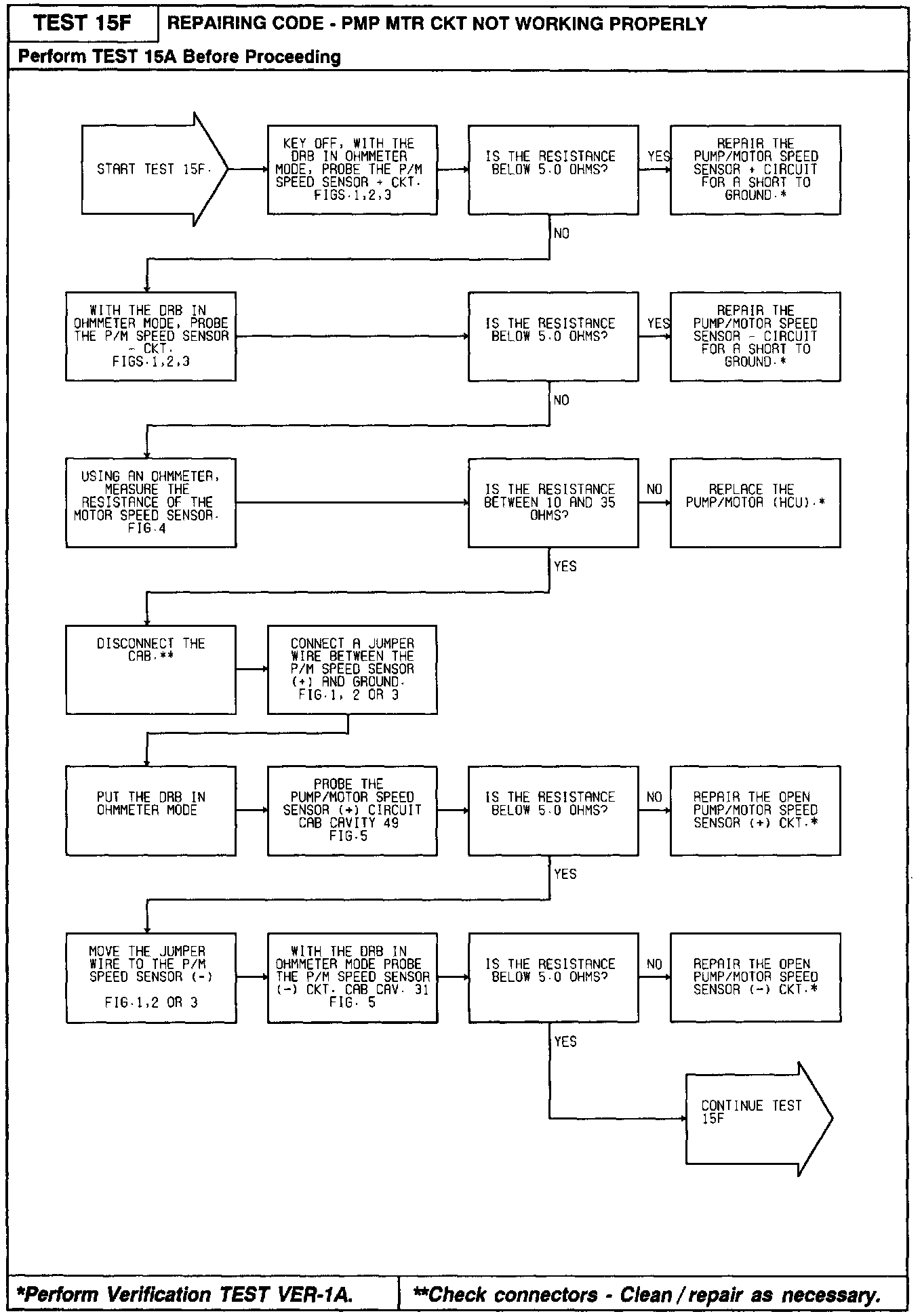

Test 15F
Test 15F
Related Images:
Diagnostic Chart:
Related Images:
Diagnostic Chart:
