Test 13A - Main Relay/Power Circuit Failure
Test 13A - Main Relay/Power Circuit Failure
Related Images:

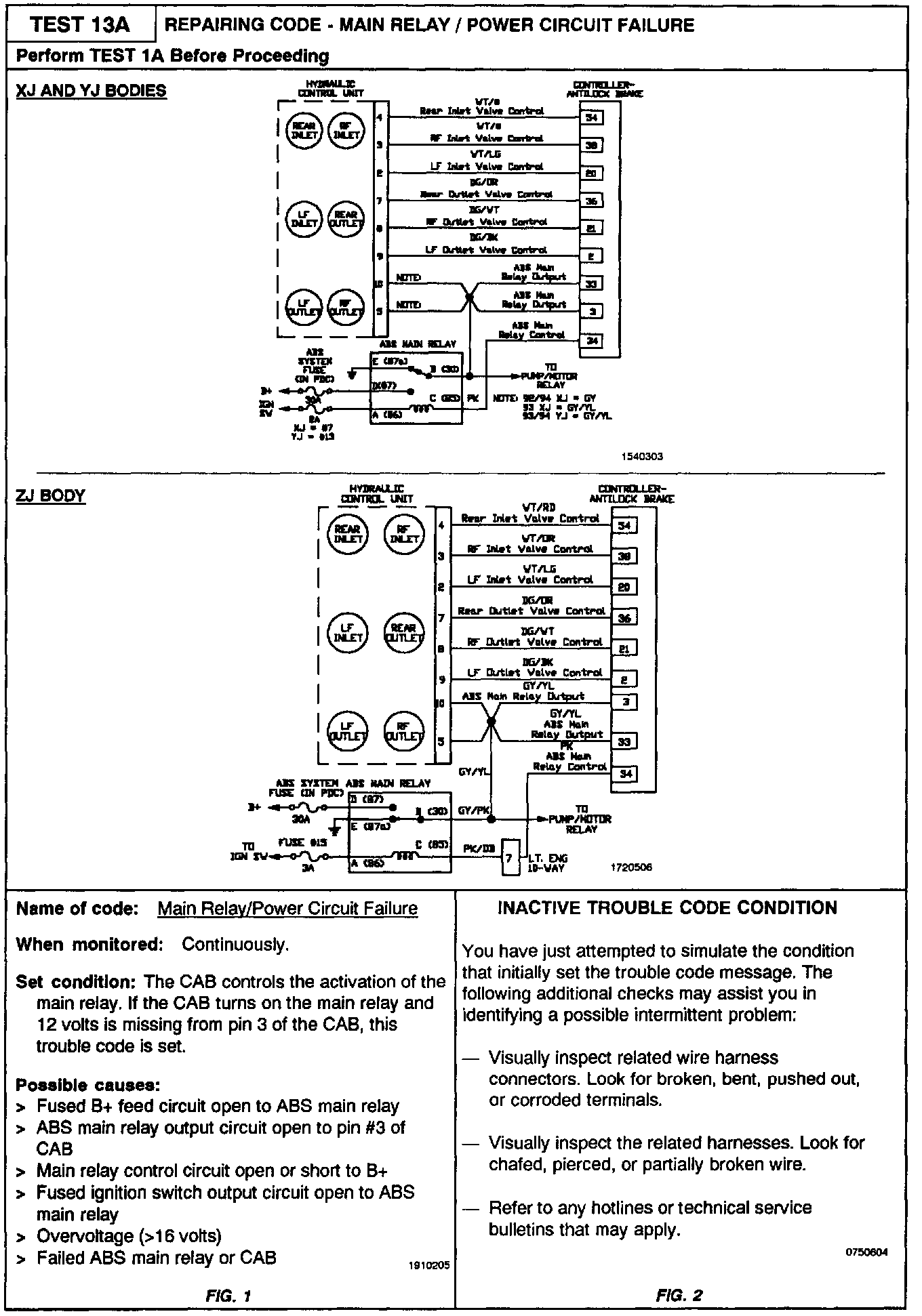

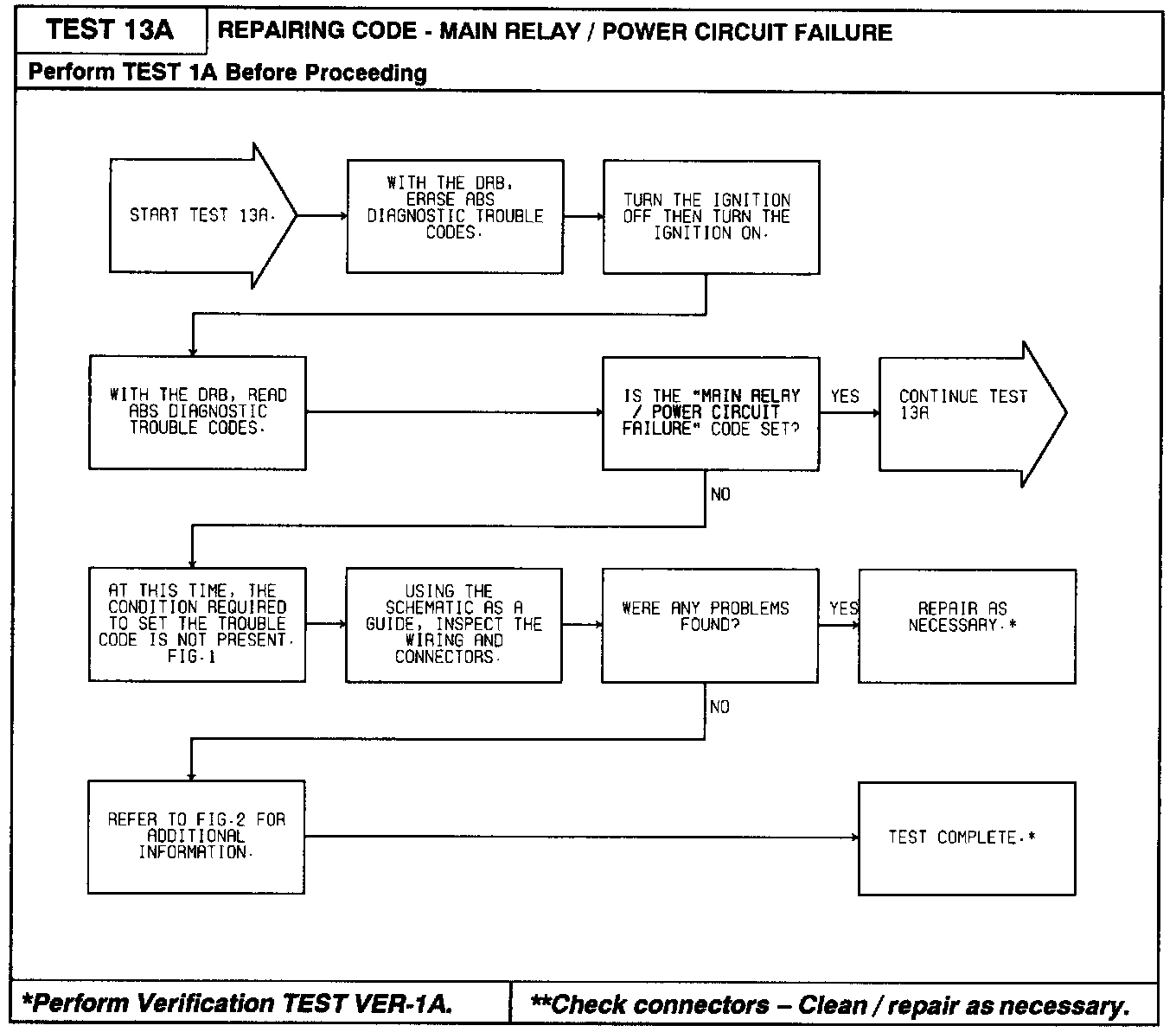

Diagnostic Chart:
Related Images:

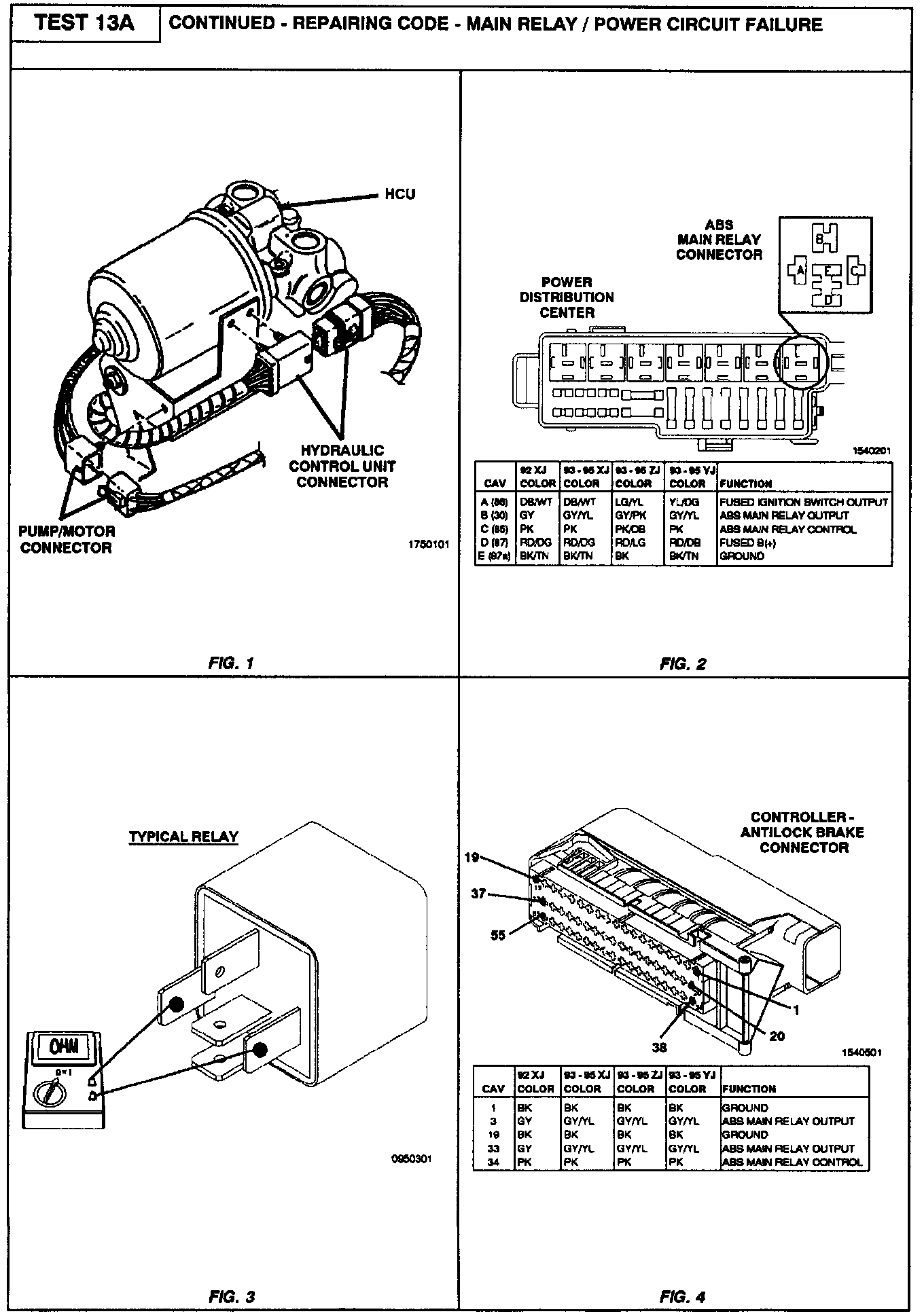

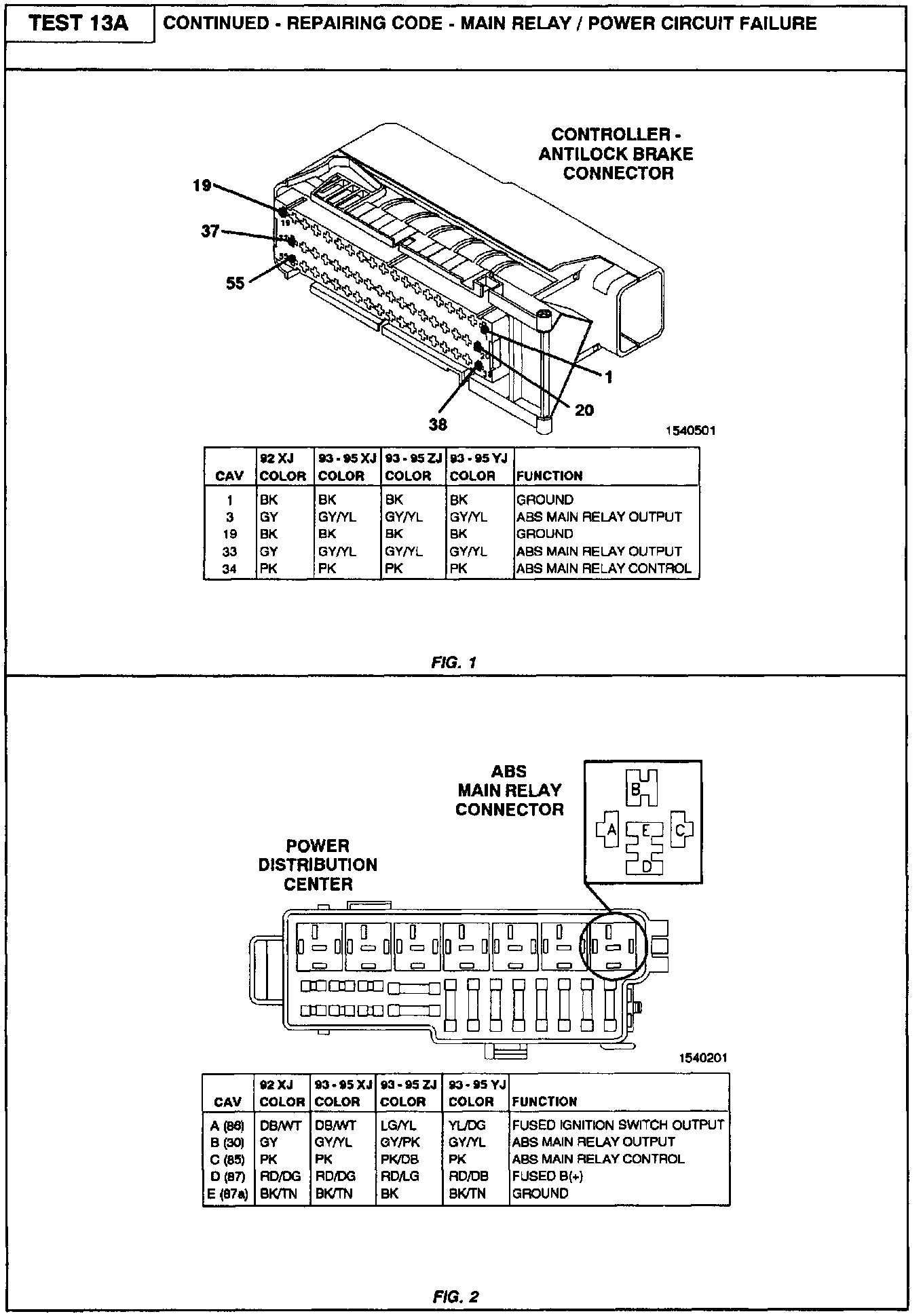

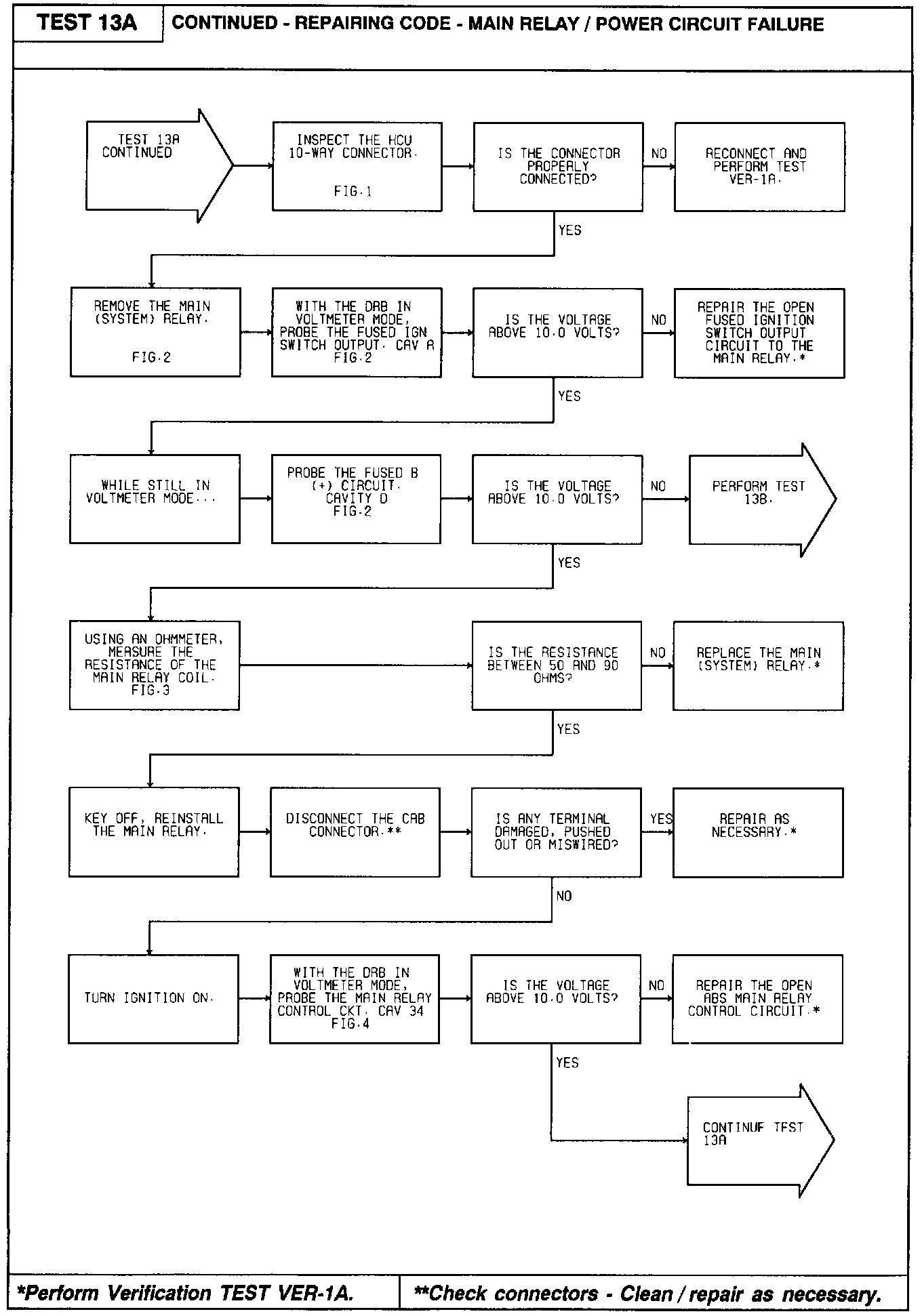

Diagnostic Chart:
Related Images:

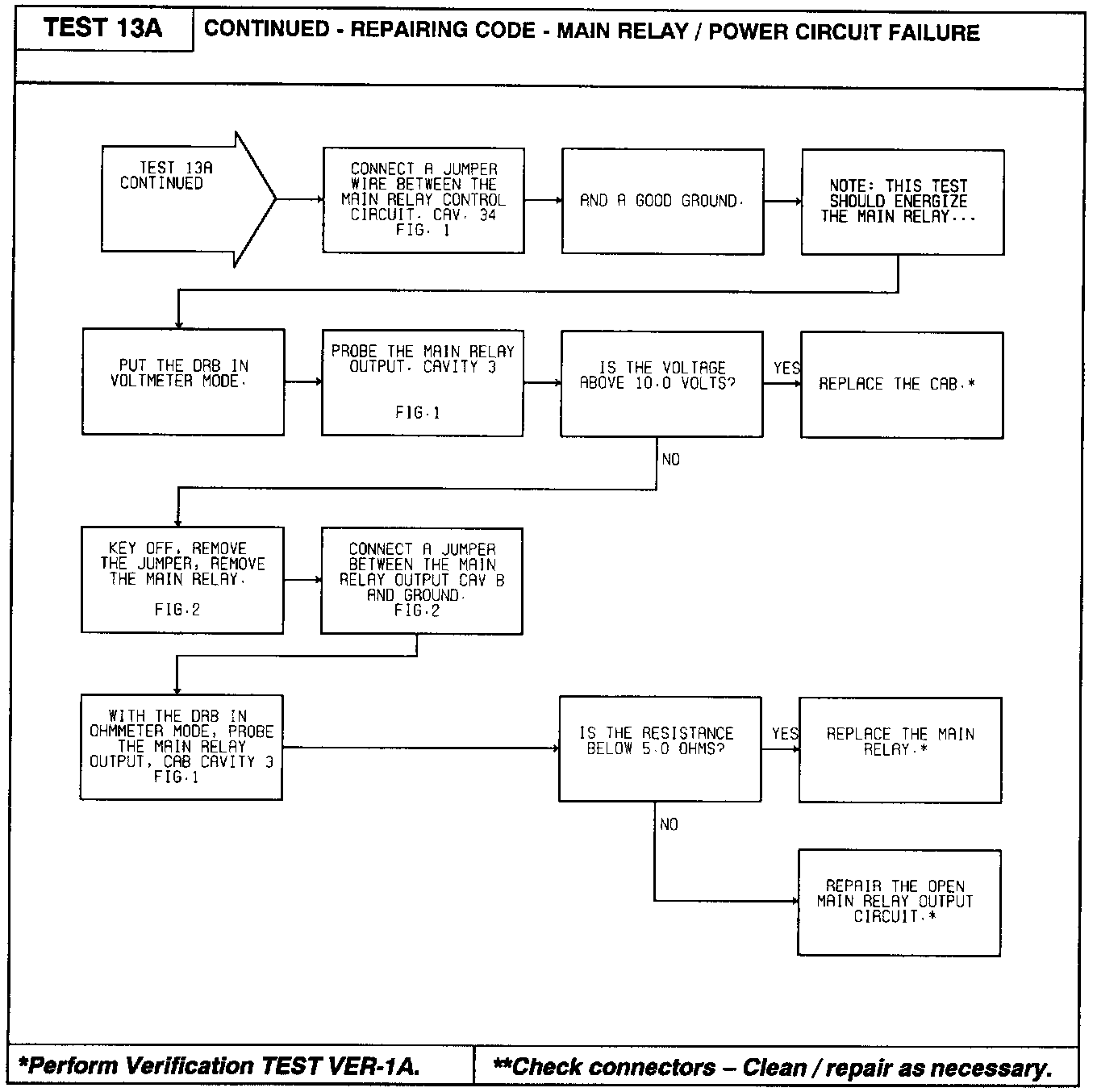

Diagnostic Chart:
