Antilock Brakes / Traction Control Systems

Chrysler does not provide any trouble code number-driven diagnostics for this system. Testing information is provided for codes retrieved via the Chrysler Diagnostic Box Readout (DRB) in code description text format only. Alldata users have reported success using the code number with description by a generic scan tool matching the description to diagnostic information listed.

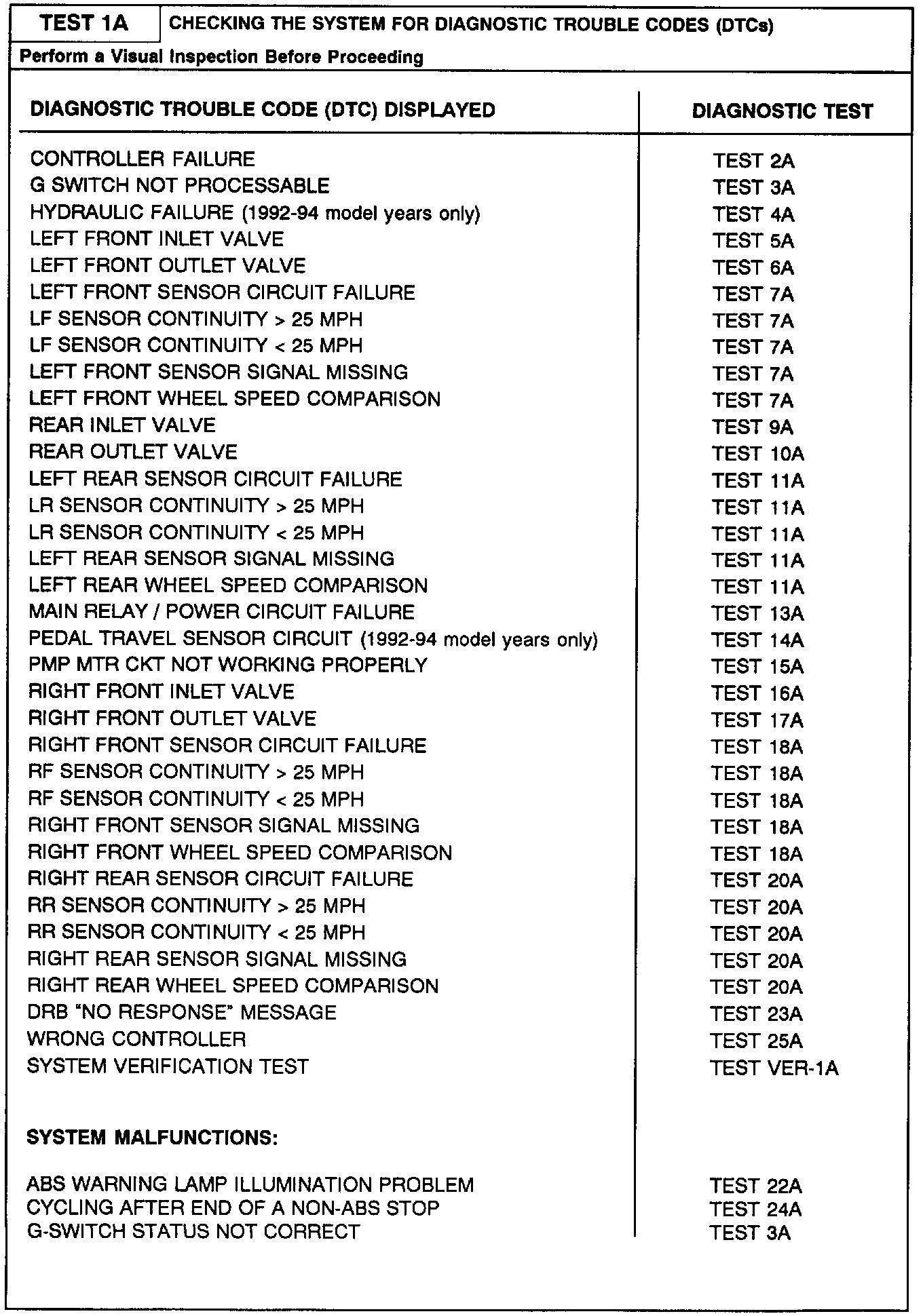

The Teves antilock brake system module may report any of the following diagnostic trouble codes:

- CAB Fault
- G Switch Not Processable
- Left Front Inlet Valve
- Left Front Outlet Valve
- Left Front Sensor Circuit Failure
- Left Front Sensor Continuity > 25 MPH
- Left Front Sensor Continuity < 25 MPH
- Left Front Sensor Signal Missing
- Left Front Sensor Speed Comparison
- Left Rear Sensor Circuit Failure
- Left Rear Sensor Continuity > 25 MPH
- Left Rear Sensor Continuity < 25 MPH
- Left Rear Sensor Signal Missing
- Left Rear Sensor Speed Comparison
- Main Relay/Power Circuit Failure
- Wrong Controller
- Pump Motor Circuit Not Working Properly
- Rear Inlet Valve
- Rear Outlet Valve
- Right Front Inlet Valve
- Right Front Outlet Valve
- Right Front Sensor Circuit Failure
- Right Front Sensor Continuity > 25 MPH
- Right Front Sensor Continuity < 25 MPH
- Right Front Sensor Signal Missing
- Right Front Sensor Speed Comparison
- Right Rear Sensor Circuit Failure
- Right Rear Sensor Continuity > 25 MPH
- Right Rear Sensor Continuity < 25 MPH
- Right Rear Sensor Signal Missing
- Right Rear Sensor Speed Comparison
