Assembly

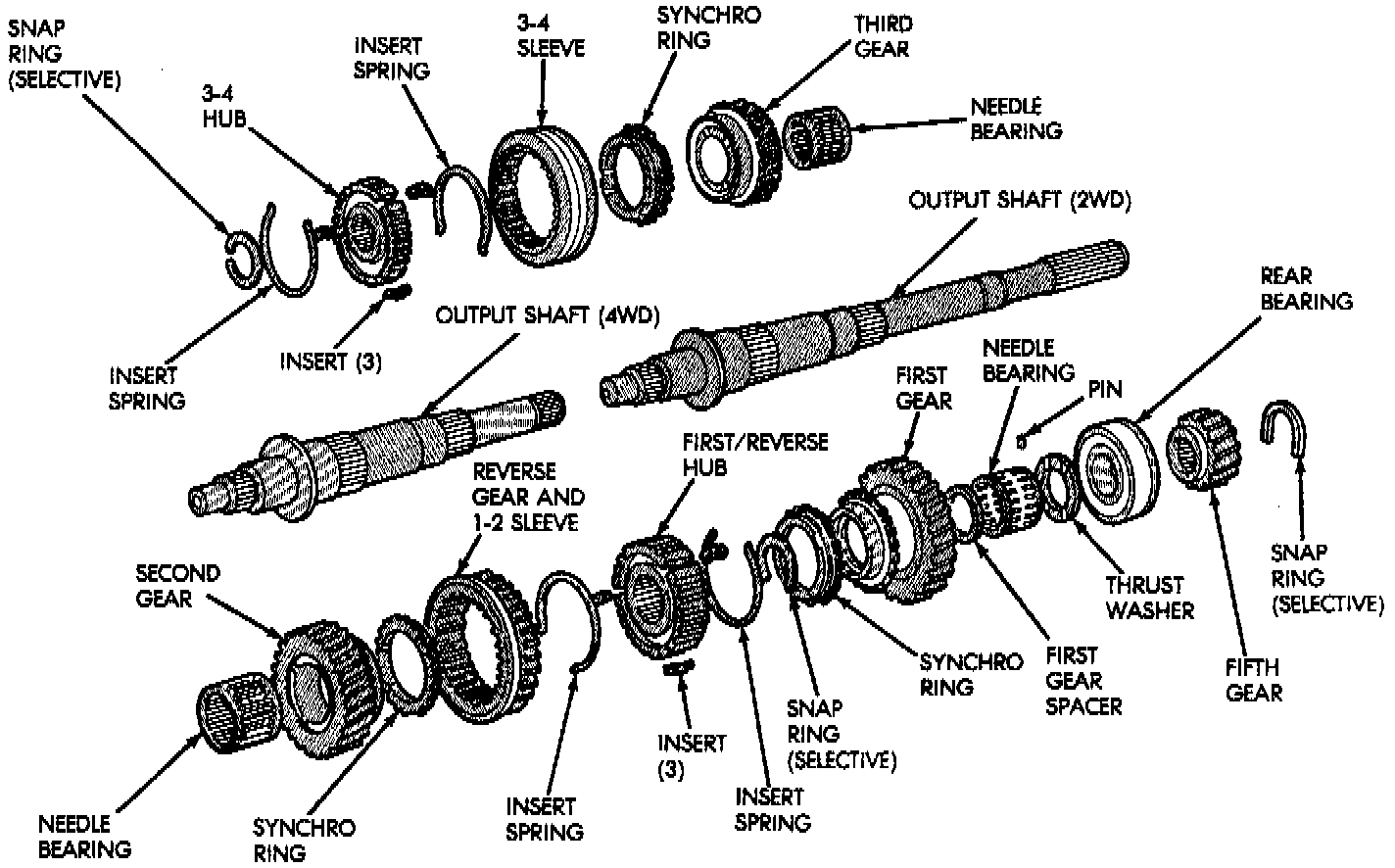

NOTE: Refer to image for parts identification during disassembly and assembly of the output shaft.

1. Lubricate transmission components with specified gear lubricant during assembly.





2. If necessary, assemble 1-2 and 3-4 synchronizer hubs, sleeves, springs and key inserts.
3. Install third gear needle bearing onto the output shaft.
4. Install third gear over bearing and onto output shaft flange.
5. Install third gear synchronizer ring to third gear.
6. Position the 3-4 synchronizer onto the output shaft.
7. Using Adapter 6761, or equivalent and a shop press, press the 3-4 synchronizer onto the output shaft.

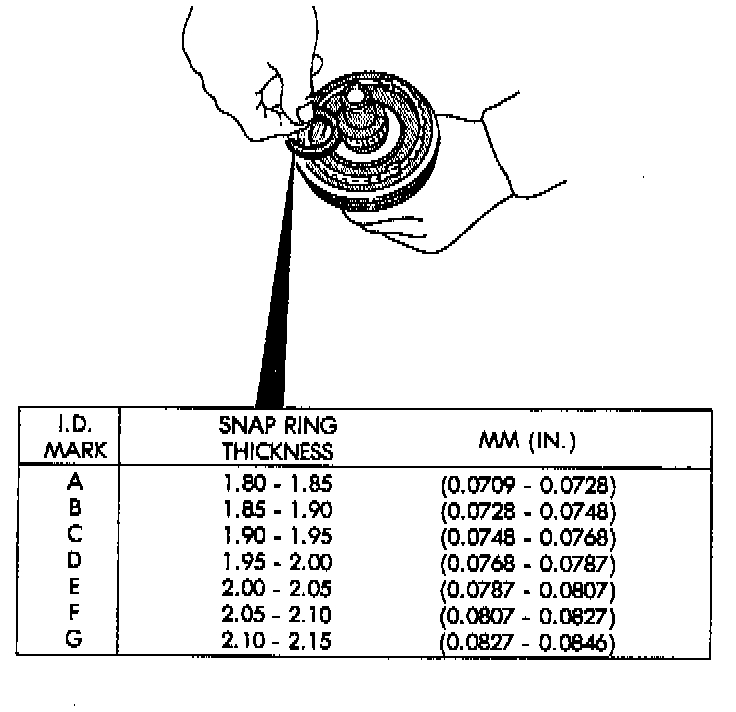

8. Select the thickest snap-ring that will fit into the snap-ring groove of the output shaft.
9. Install snap-ring to hold 3-4 synchronizer onto output shaft.

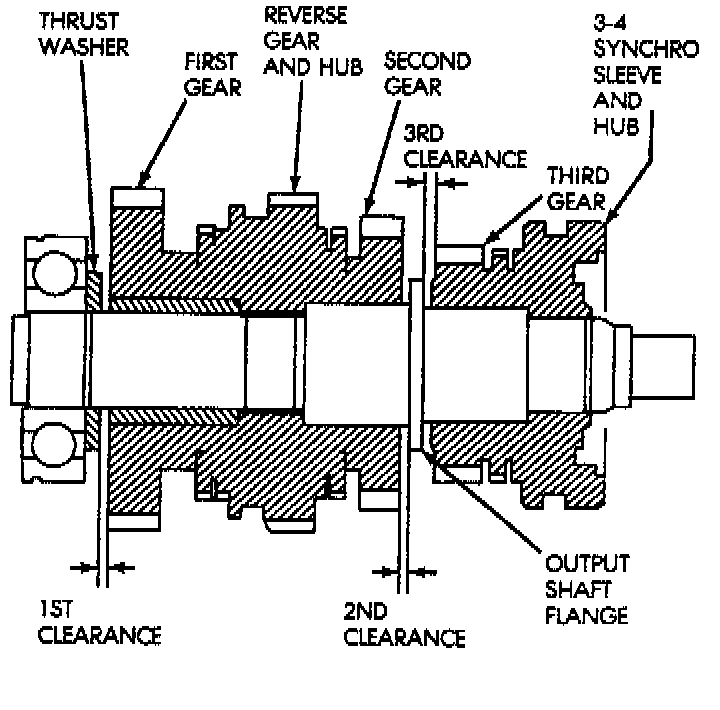

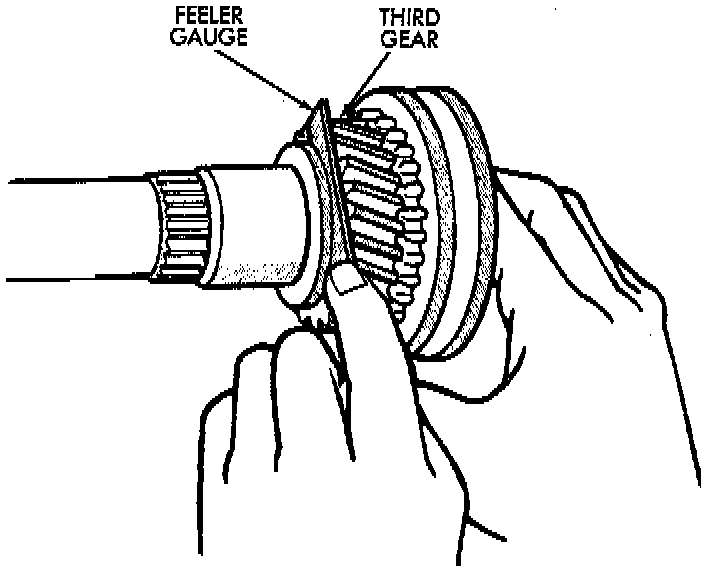

10. Verify third gear thrust clearance with feeler gauge. Clearance should be 0.10 - 0.30 mm (0.003 - 0.0118 inch). If clearance is out of specification, refer to Cleaning and Inspection.
11. Install second gear needle bearing onto output shaft.
12. Install second gear over bearing and onto output shaft flange.
13. Install second gear synchronizer ring onto second gear.
14. Position 1-2 synchronizer/reverse gear assembly onto splines of output shaft.
15. Using Driver MD-998805, Adapter 6761, or equivalents, and a shop press, press the 1-2 synchronizer/reverse gear onto the output shaft.

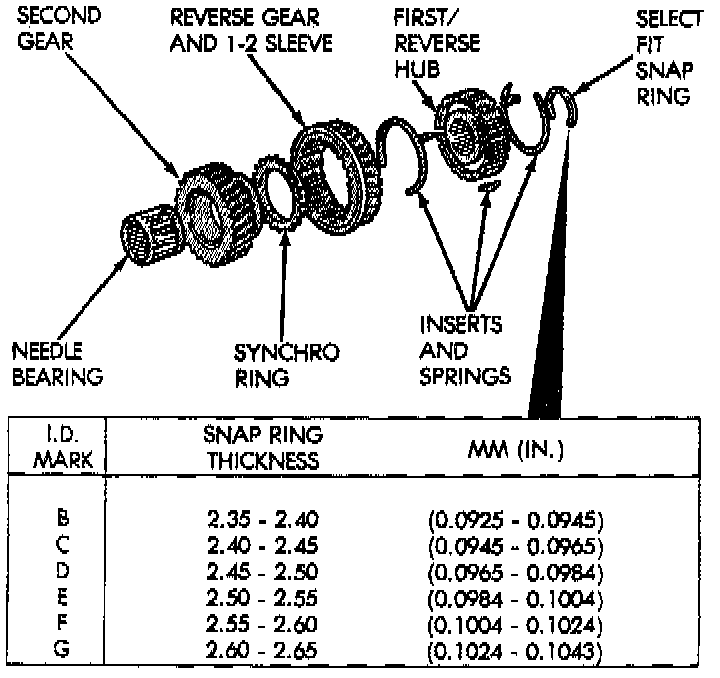

16. Select the thickest snap-ring that will fit into the snap-ring groove of the output shaft.
17. Install snap-ring to hold 1-2 synchronizer/reverse gear onto output shaft.
18. Install first gear synchronizer ring into 1-2 synchronizer/reverse gear.
19. Install the first gear spacer onto the input shaft and against the 1-2 synchronizer/reverse gear snap-ring.





20. Install first gear needle bearing onto output shaft.
21. Install first gear onto output shaft and over bearing.
22. Install the first gear thrust washer locating pin into the output shaft.
23. Install the first gear thrust washer onto the output shaft. Rotate the thrust washer until the washer locating pin aligns with the notch in the washer.
24. Position output shaft rear bearing onto output shaft. Ensure that the snap ring groove in bearing outer race is toward rear of output shaft.
25. Using Driver L-4507, or equivalent and suitable mallet, drive bearing onto output shaft.
26. Install snap-ring onto output shaft rear bearing outer race.





27. Check first and second gear thrust clearance. First gear clearance should be 0.10 - 0.40 mm (0.003 - 0.0197 inch). Second gear clearance should be 0.10 - 0.30 mm (0.003 - 0.0118 inch). If clearance is out of specification, refer to Cleaning and Inspection.
28. Position fifth gear onto output shaft with the gear's long shoulder toward the rear of shaft. Ensure that the gear and output shaft splines are aligned.
29. Using Adapter 6761, Driver L-4507, or equivalents, and a shop press, press fifth gear onto output shaft.

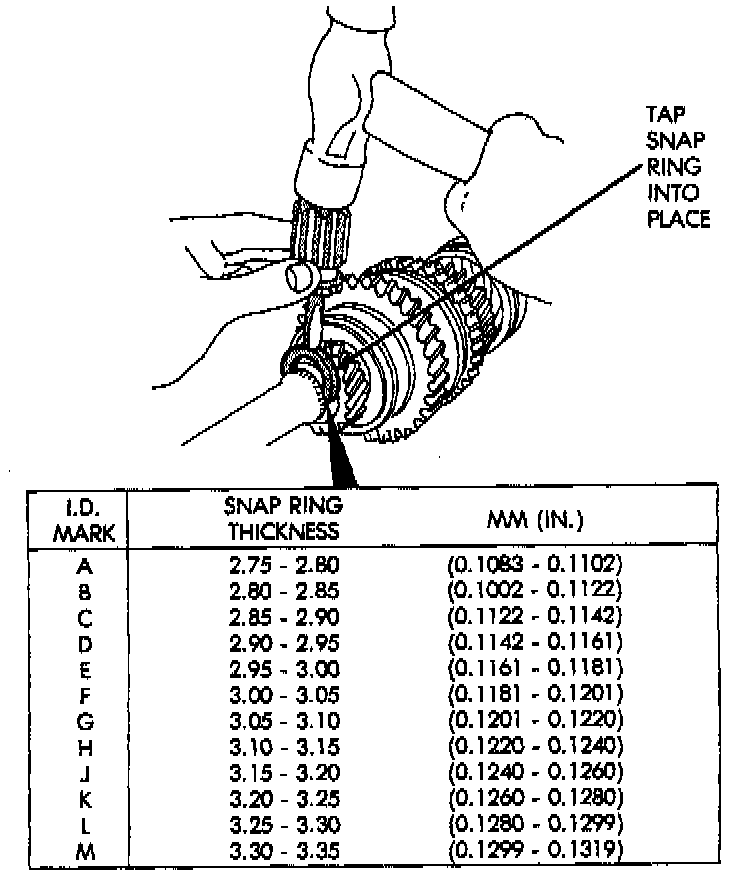

30. Select the thickest snap-ring that will fit into the snap-ring groove of the output shaft.
31. Install snap-ring to hold fifth gear onto output shaft.
32. Install output shaft pilot bearing into the input shaft.
33. Install the input shaft to the output shafts.
