Ignition Switch

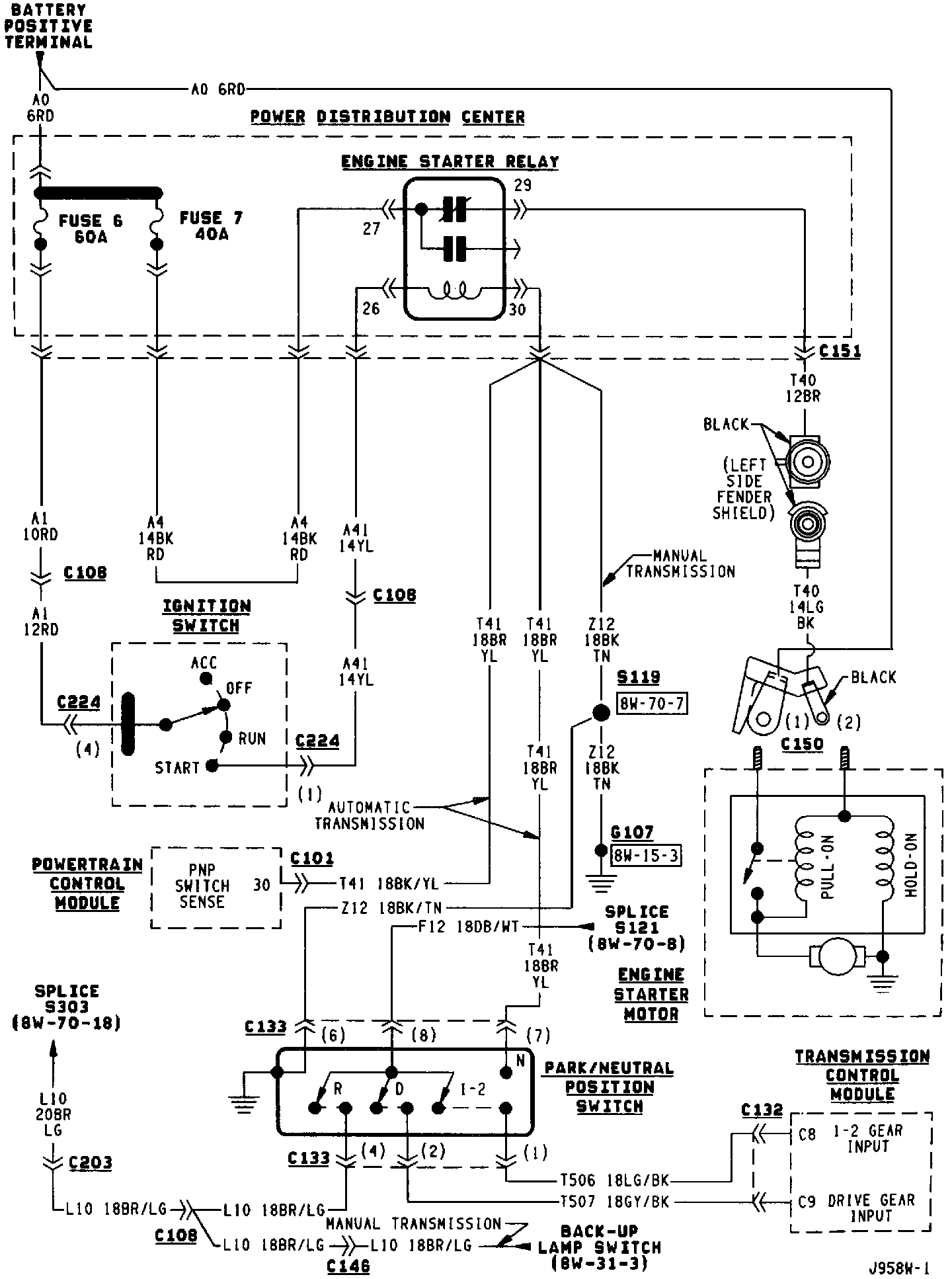

Starting System:






Ignition Switch

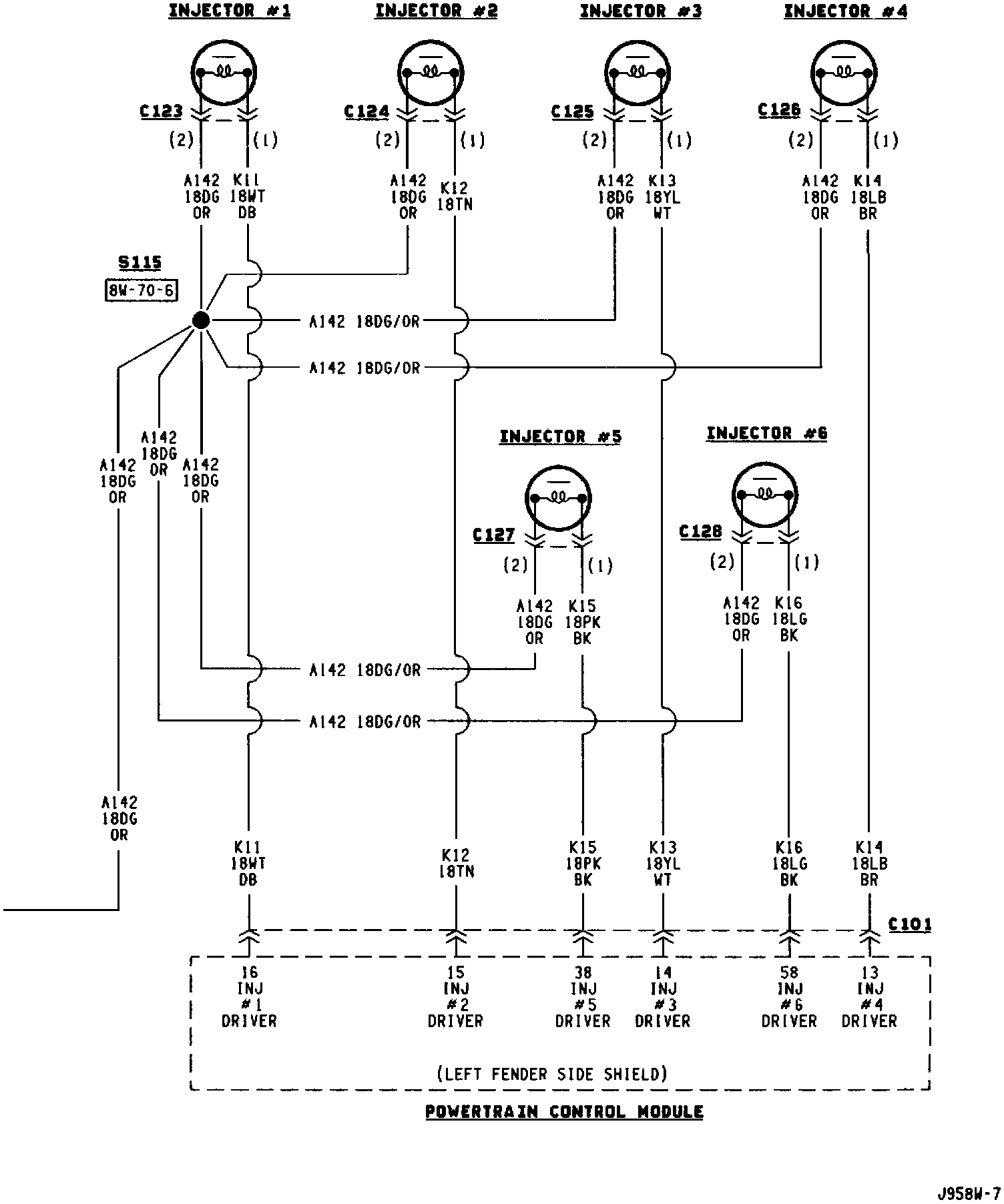

Fuel Ignition:






Fuel Ignition:






Powertrain Control Module

Powertrain ManagementDiagrams, Electrical.
