Jeep Truck
>>
1995
>>
Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Data Link Connector, A/T
Data Link Connector, A/T

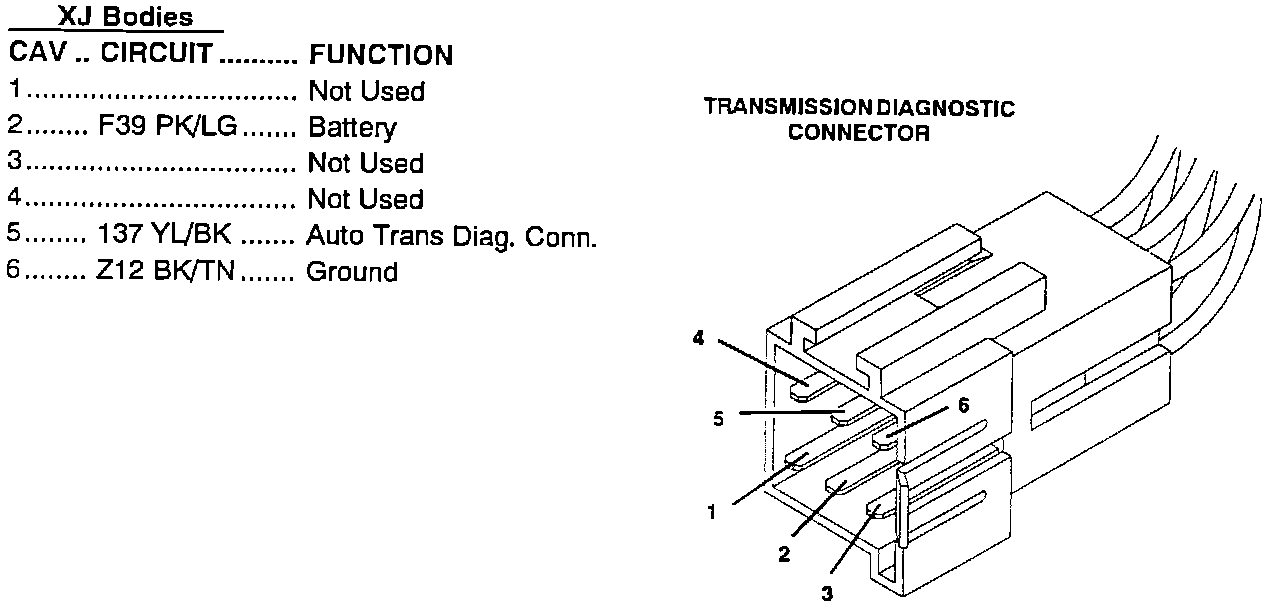

Transmission Diagnostic Connector:
