Special Tools - MS 1700 System Fault Corrections
MAY 1986320 885
MS 1700 ELECTRONIC DIAGNOSTIC TESTERS
6
RENIX THROTTLE BODY INJECTION Attention: Workshop, Parts Department
MAKE CORRECTIONS TO RENIX MS 1700 AS INDICATED BY REVISION BARS:
1986 SYSTEM FAULTS CORRECTION
General Information
There are three (3) corrections which need to be recorded in the Renix MS 1700 Electronic Diagnostic Tester Manual.
PROCEDURE
Make corrections as shown.

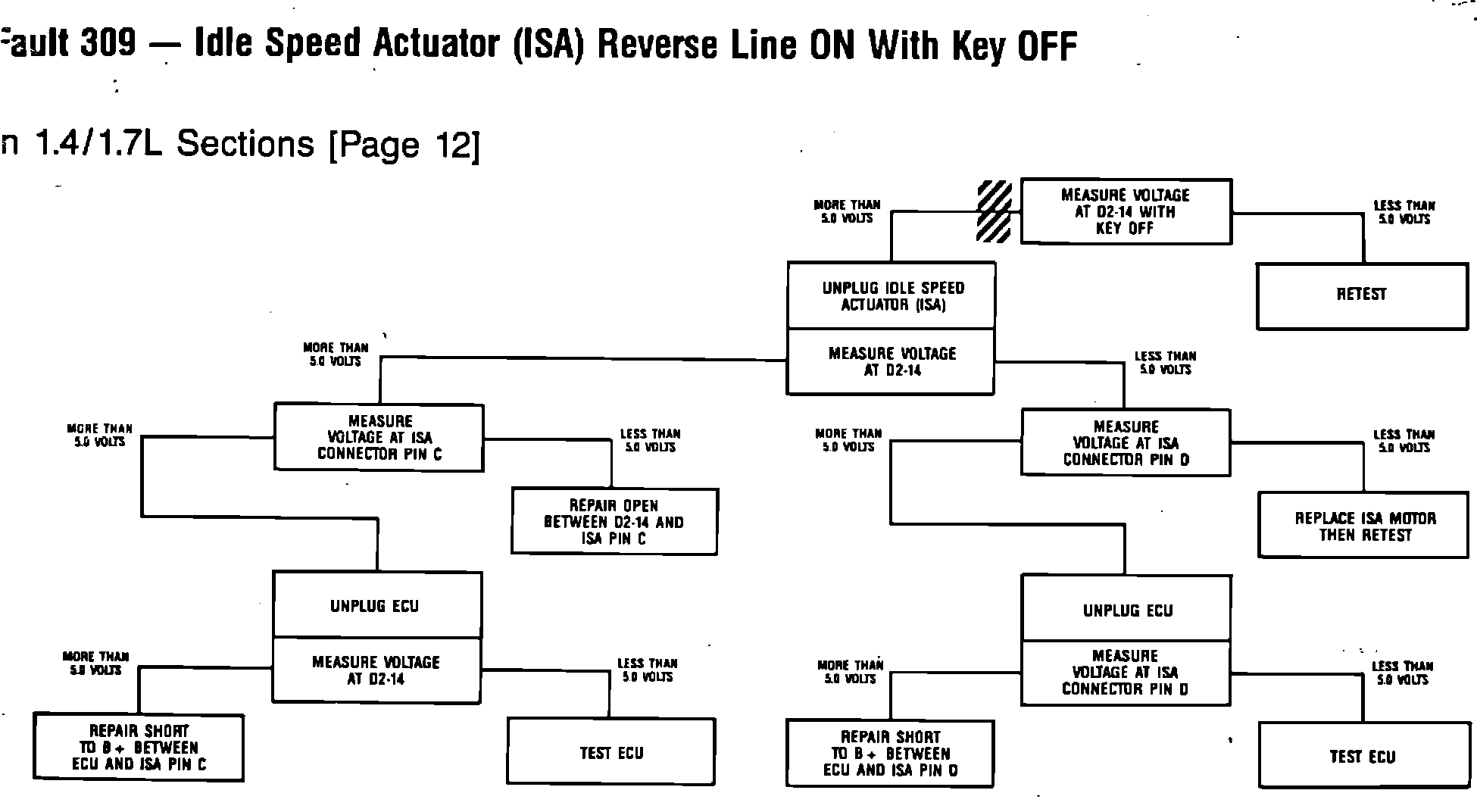

Fault 309 - Idle Speed Actuator (ISA) Reverse Line ON With Key OFF
In 1.4/1.7L Sections [Page 12]
Fault 332 - Park/Neutral Line Not Grounded With Key ON In 2.46l Section [Page 33]

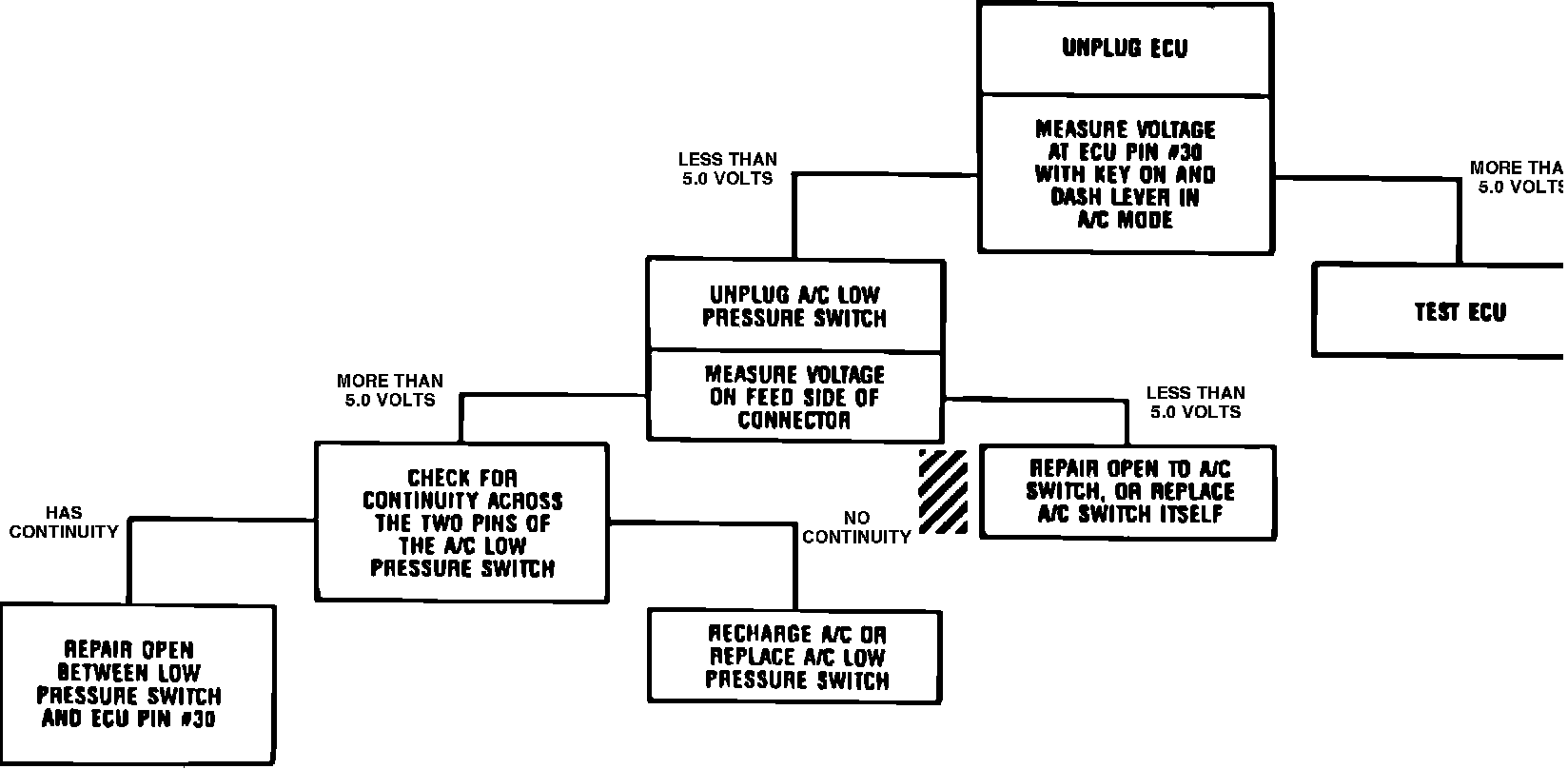

���4FIGURE 3 - FAULT 394-A/C SELECT LINE DID NOT TURN ON:
Fault 394 - A/C Select Line Did Not Turn ON
In 1.4L Section [Page 77]
In 1.7L Section [Page 78]
In 2.46L Section [Page 79]
FILING INSTRUCTIONS
Record this over the incorrect information.
File this with the other BULLETINS in the Bosch/Bendix MS 1700 Electronic Diagnostic Tester Manual
