Home >> Jeep Truck >> 1986 >> Wrangler L6-258 4.2L VIN C 2-bbl >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Locations

Housing Assembly HVAC: Locations

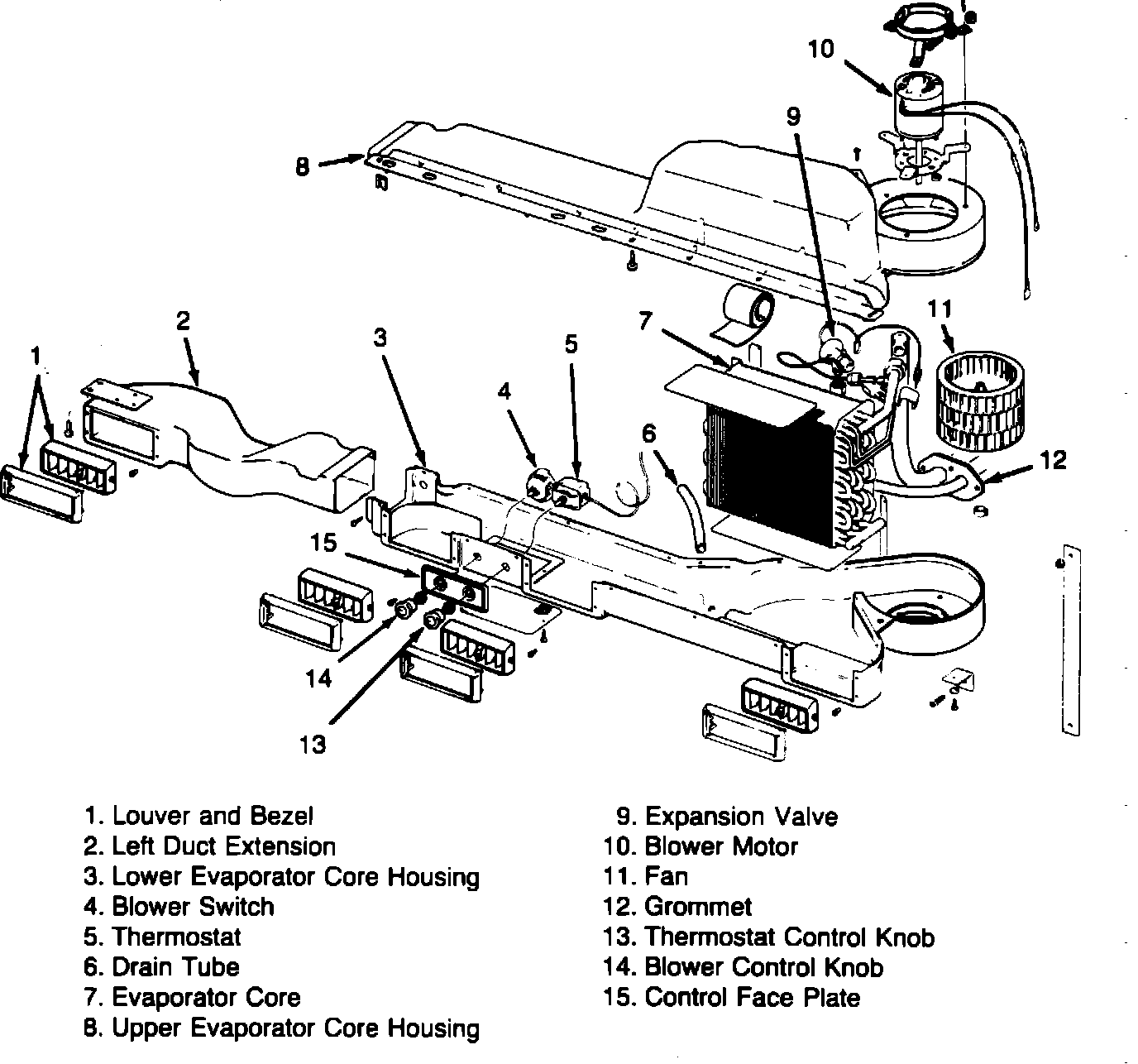

Evaporator Housing Components:
