Jeep Truck
>>
1986
>>
Wrangler L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control
Fig. 7 Cruise Control Wiring Circuit (Part 1 of 2):

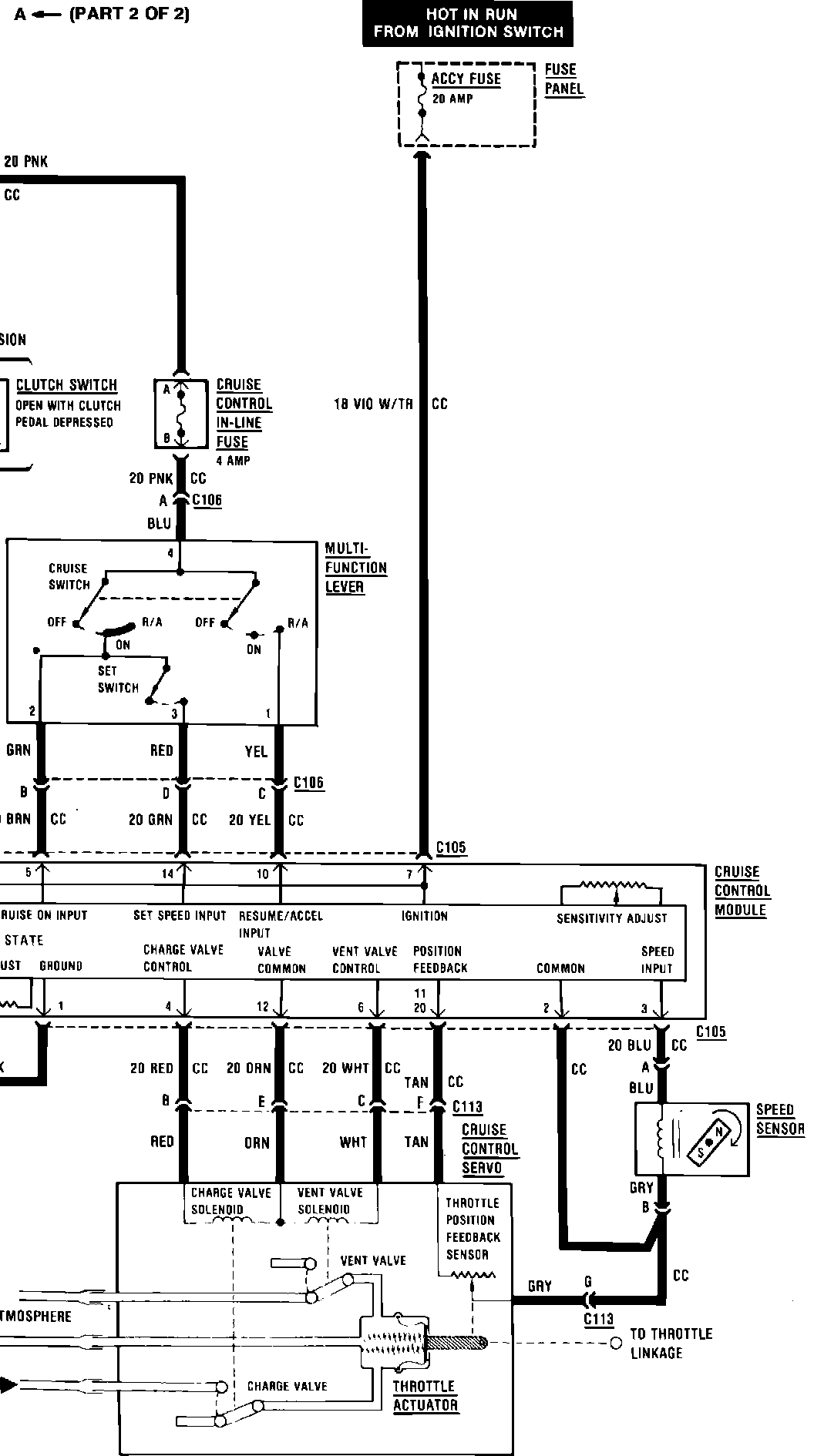

Fig. 7 Cruise Control Wiring Circuit (Part 2 of 2):
