Brake Light Switch
Brake Light Switch

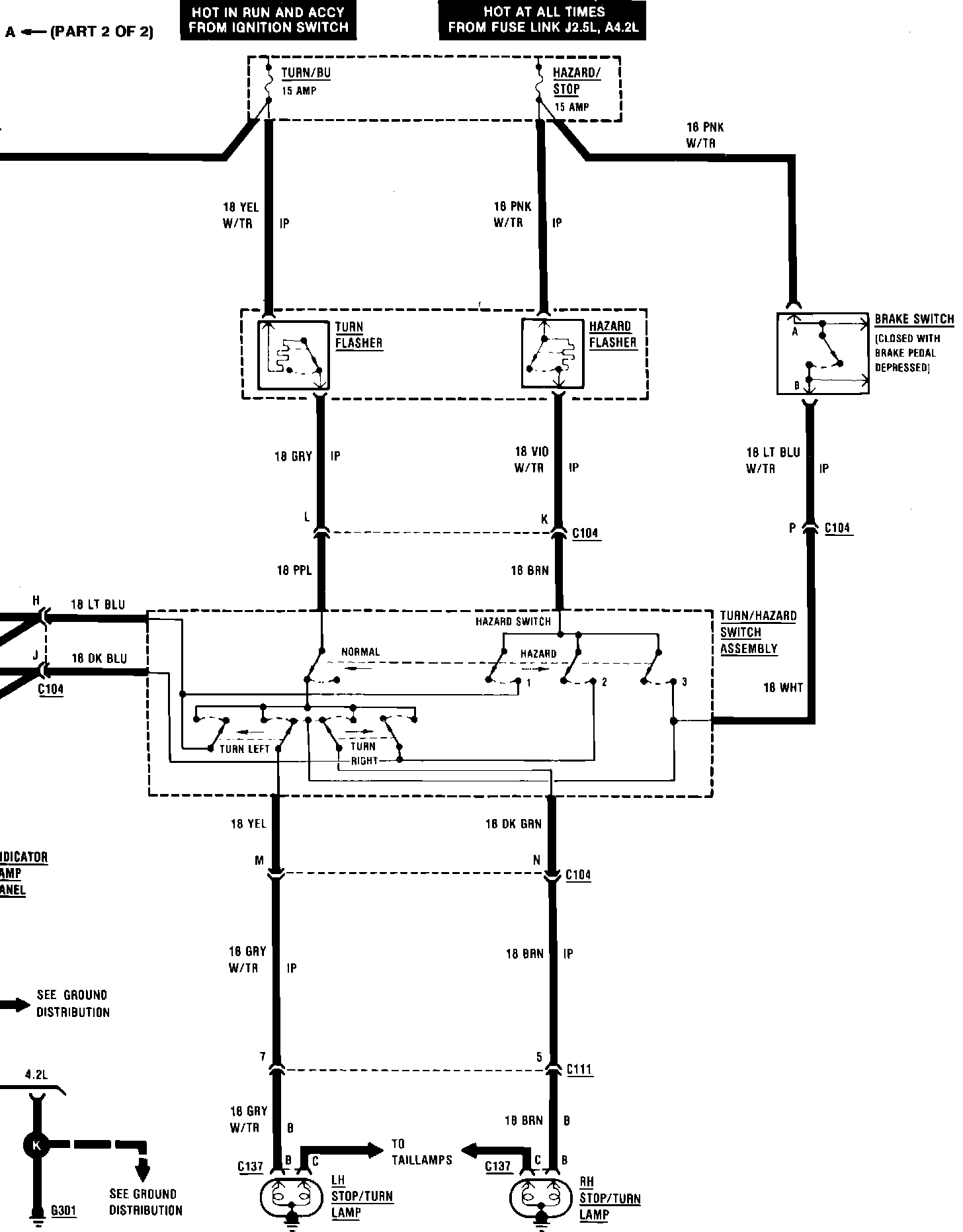

Fig. 2 Back-Up, Hazard, Stop & Turn Signal Lamp Wiring Circuit (Part 2 of 2):
