Jeep Truck
>>
1986
>>
Grand Wagoneer L6-258 4.2L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Lighting and Horns
>>
Trailer Lighting Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

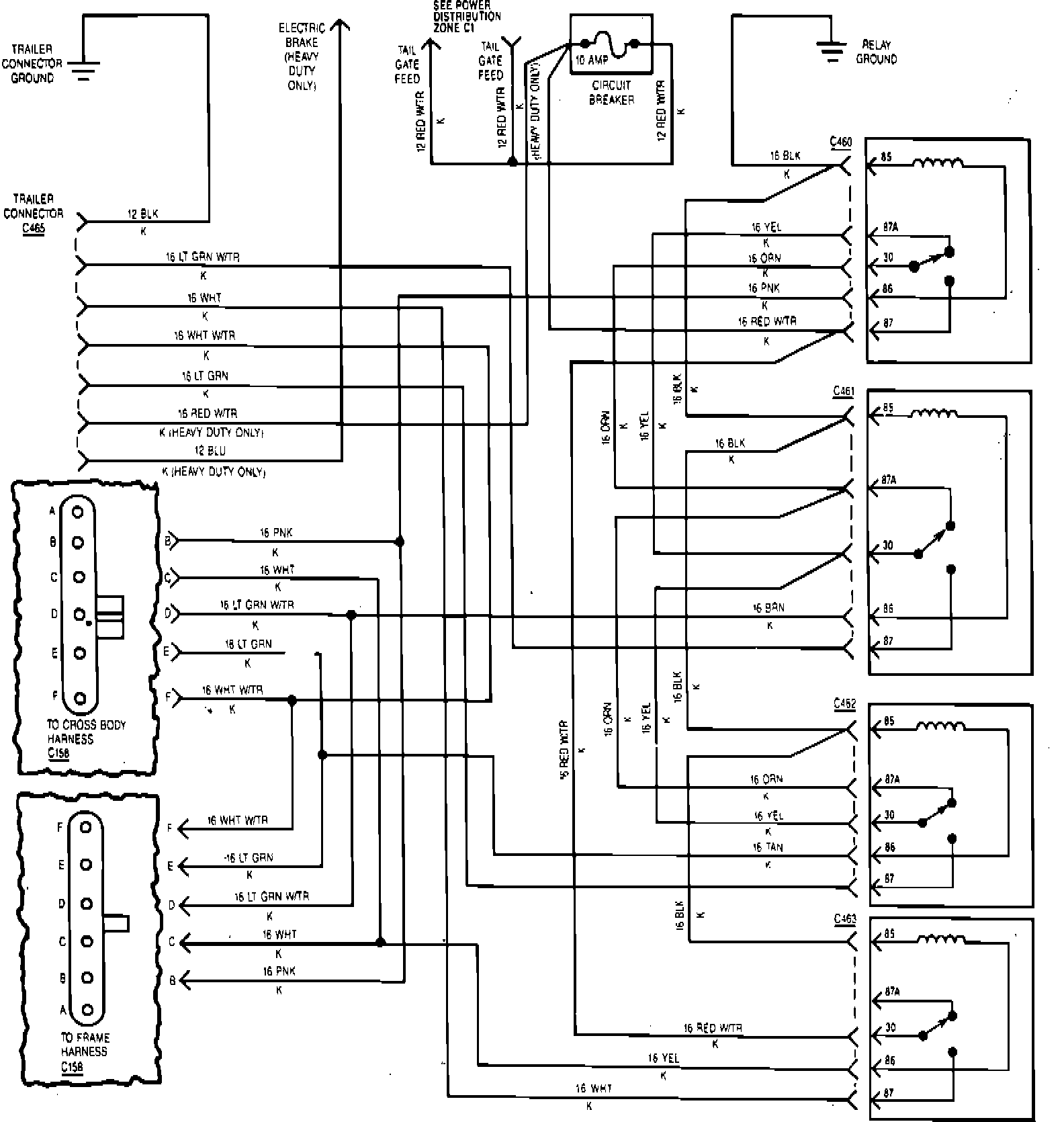

Fig. 24 Trailer Towing Package Wiring Harness:
