Timing Marks and Indicators: Locations

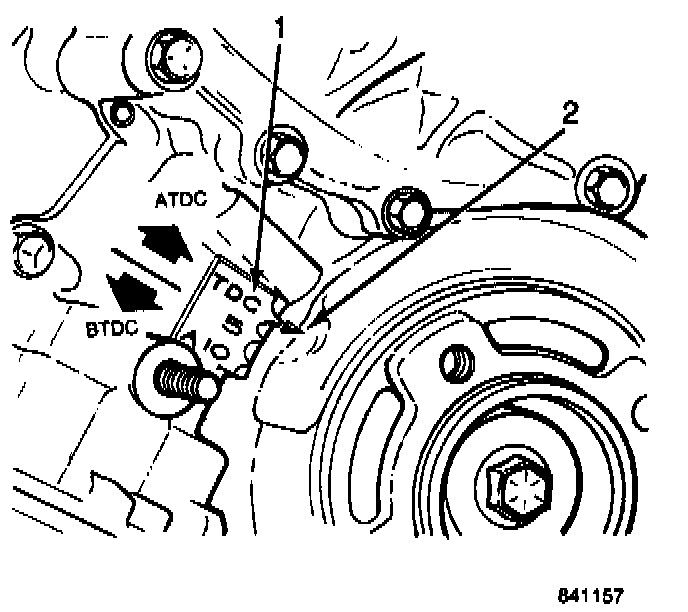

A graduated timing degree scale (1) located on the timing case cover is used for reference when timing the ignition system.
A milled index notch (2) in the vibration damper is used to align the number 1 cylinder ignition position of the crankshaft with the correct timing degree mark on the graduated scale.
