Procedure

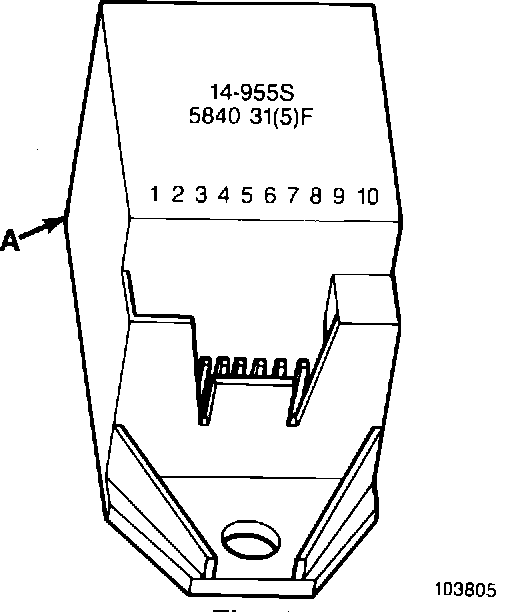

FIGURE 1:

Temperature Control Module Servicing

1. Locate the temperature control module (A). It is mounted just below the steering column, behind the air duct extension (Fig. 1).
2. Remove the temperature control module retaining screw.


3. Lower the temperature control module.

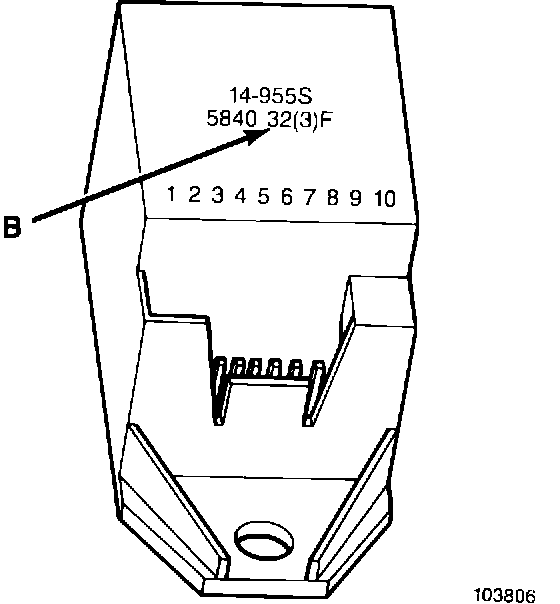

FIGURE 2:

4. Inspect the housing for correct degree marking (B) (Fig. 2).
The marking on the TCM should read:


31(5)F or 32(3)F


NOTE: These numbers are to be read: 31~F +/- 5~F (-1~C +/- 3~C) 32~F +/- 3~F (0~C +/- 2~C).

5. Replace the temperature control module if it
DOES NOT read: 31(5)F or 32(3)F and proceed to Step No. 6.


6. Start the engine.


7. Activate the A/C system.


8. Inspect to verify that the A/C system is operating properly, and that the evaporator icing condition has been eliminated.
