Battery Power Distribution
Battery Power Distribution

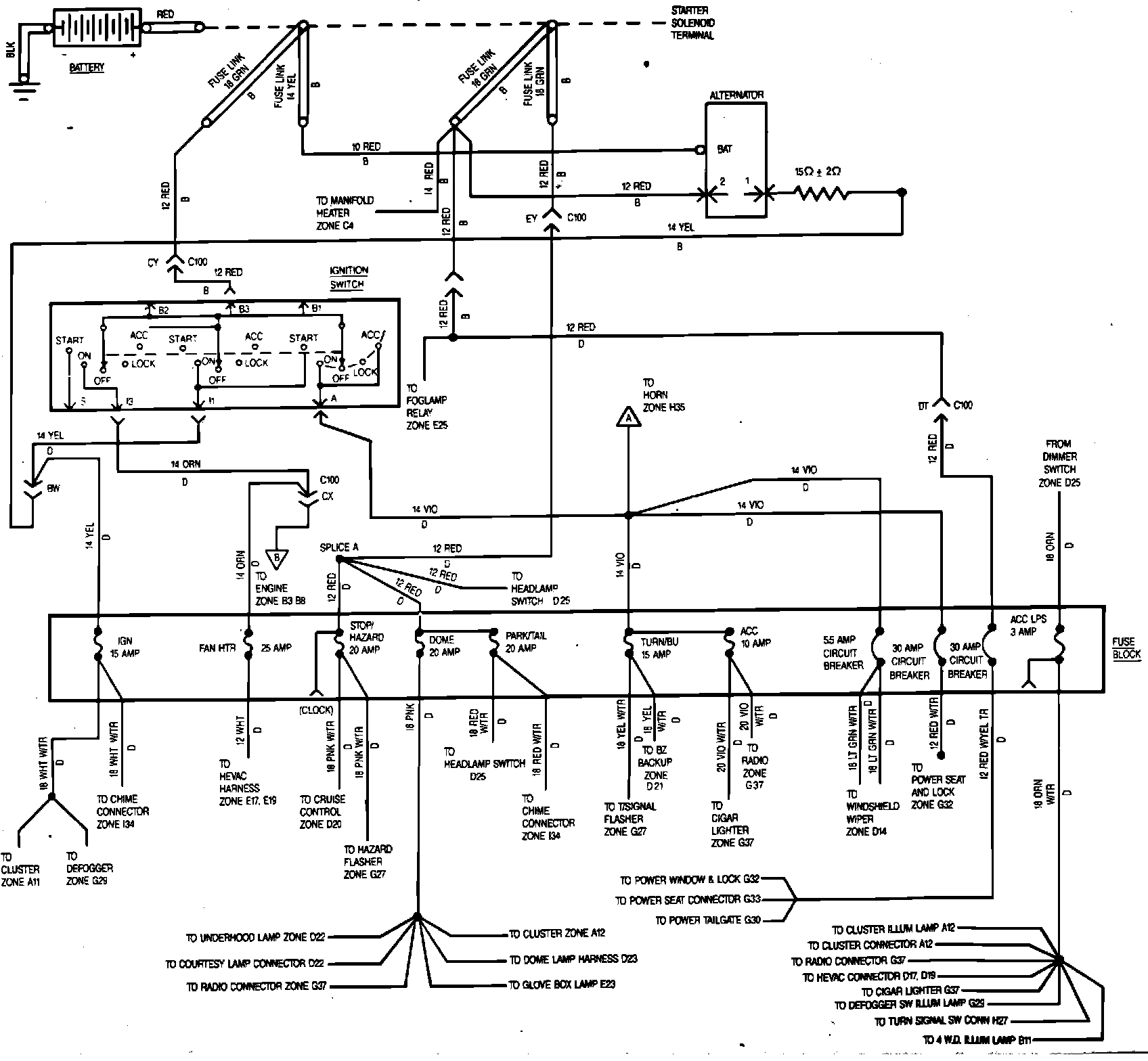

Fig. 6 Battery Power Distribution Wiring Circuit:
