Seals and Gaskets: Service and Repair

EXTENSION HOUSING SEAL (2 WHEEL DRIVE)

REMOVAL

1. Mark the propeller shaft and rear axle yokes for assembly alignment reference and remove the propeller shaft.

Extension Housing Seal Removal:

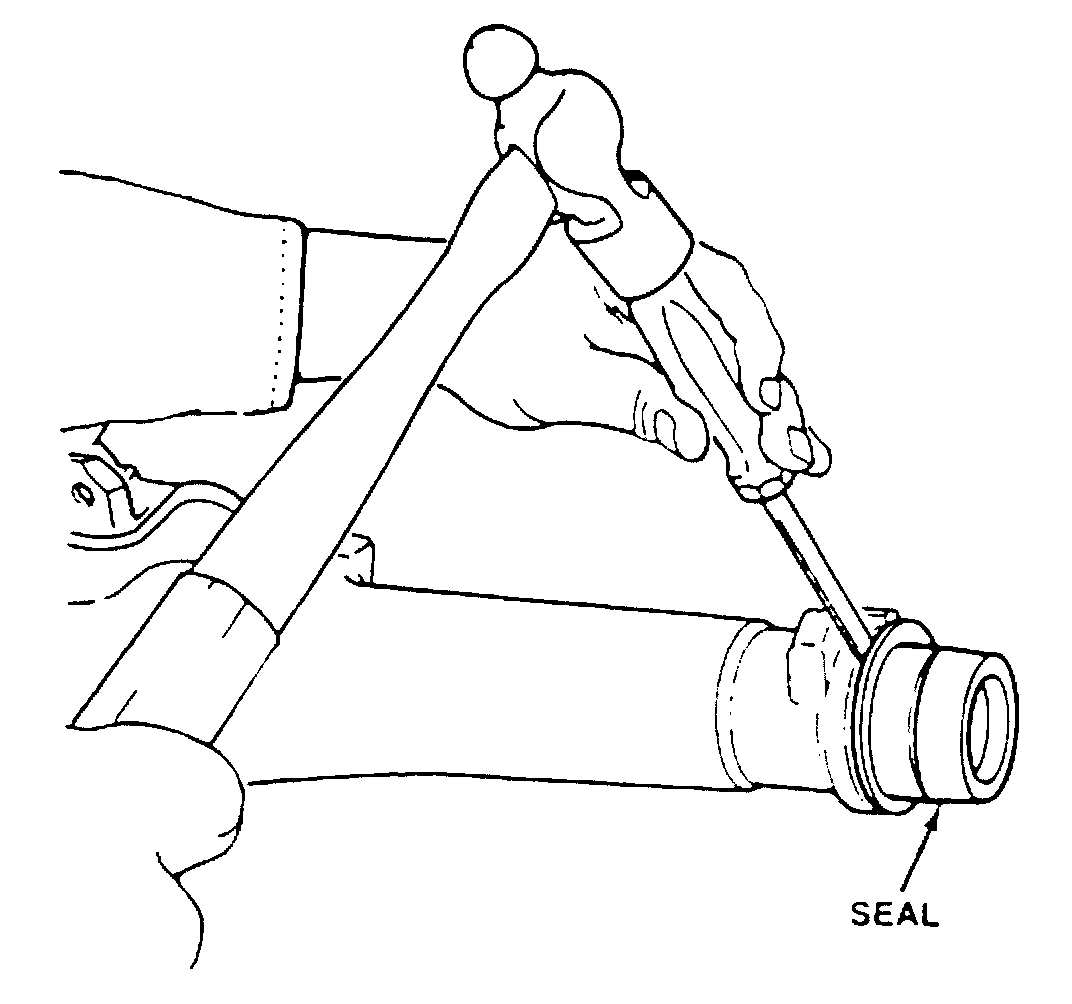

2. Remove the old seal with a screwdriver and hammer.

INSTALLATION

Extension Housing Seal Installation:

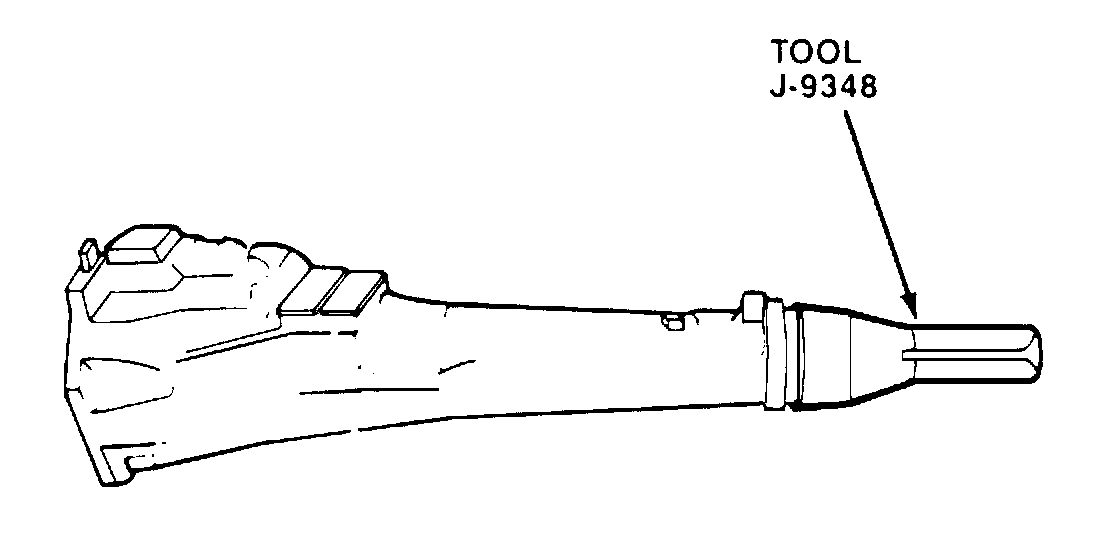

1. Install the new seal with tool J-9348.

2. Align and install the propeller shaft. Tighten the U-joint clamp strap bolts to 19 Nm (170 in. lbs.) torque.
