Transmission Pressure Test Port: Locations
PRESSURE TEST PORT LOCATIONPressure Test Ports:

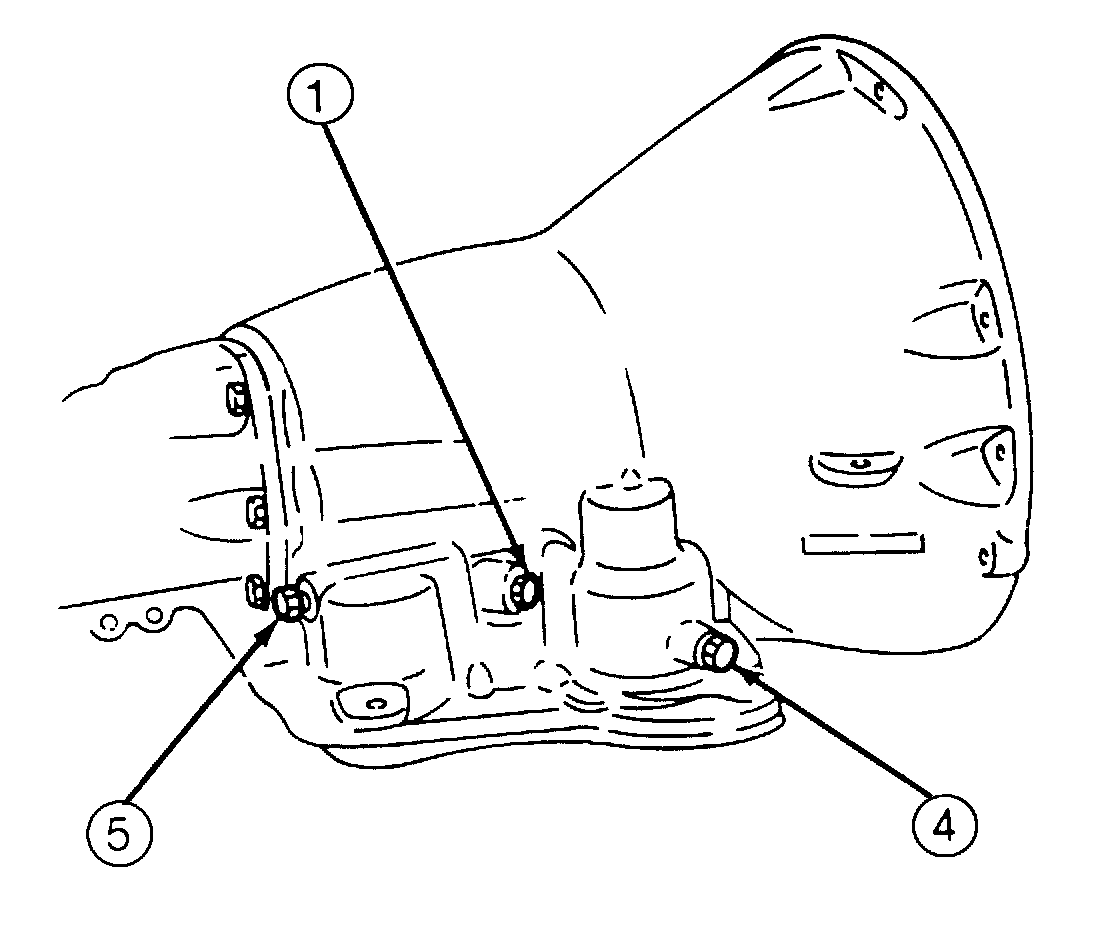

The accumulator line pressure port (1) is located on the right side of the case between the front and rear servo castings just above the oil pan mating surface.
Pressure Test Ports:

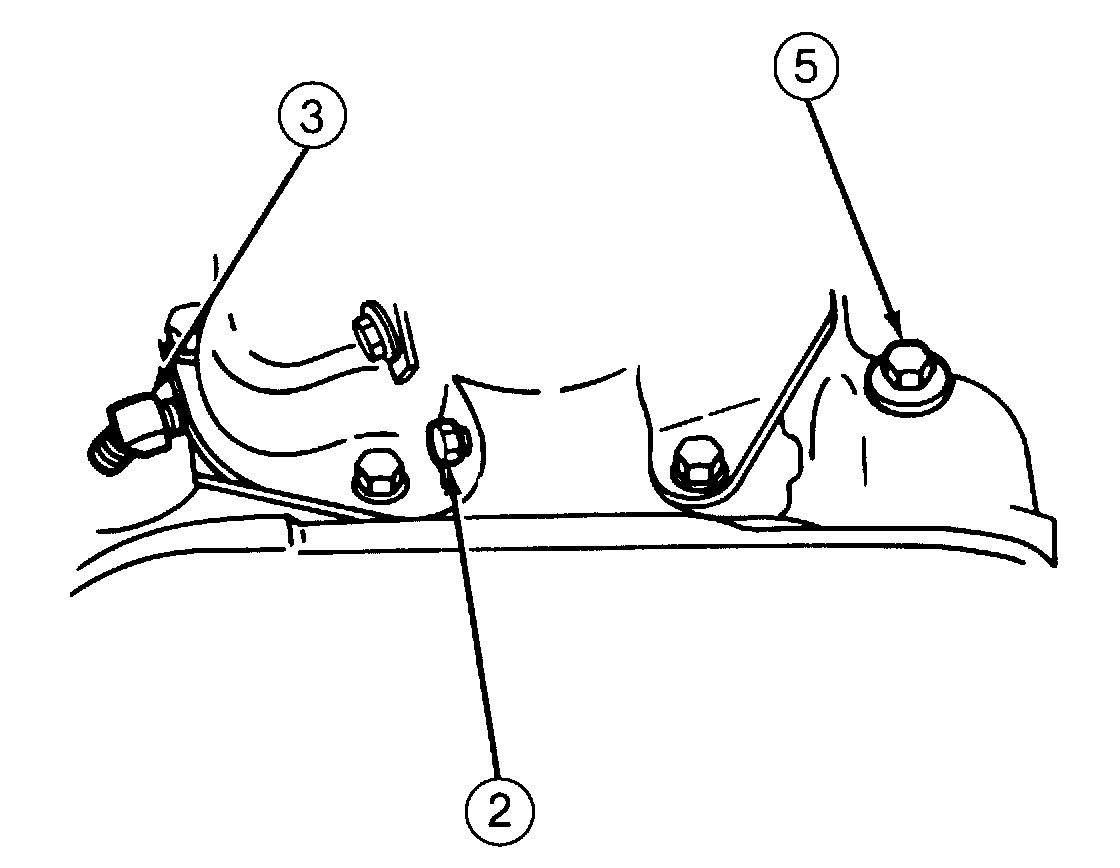

The governor pressure port (2) faces the left side in the front lower center section of the adapter housing.
Pressure Test Ports:
Lubrication pressure is measured by installing a T-fitting in the fluid cooler return line (3) on the left side at the rear edge of the case halfway to the top of the case.
Pressure Test Ports:
The front servo release pressure port (4) is located on the right side of the case just behind the filler tube opening and just above the oil pan mating surface.
Pressure Test Ports:
Pressure Test Ports:
The rear servo apply pressure port (5) is on the right side of the case, facing rearward and just above the oil pan mating surface.
