System Diagram

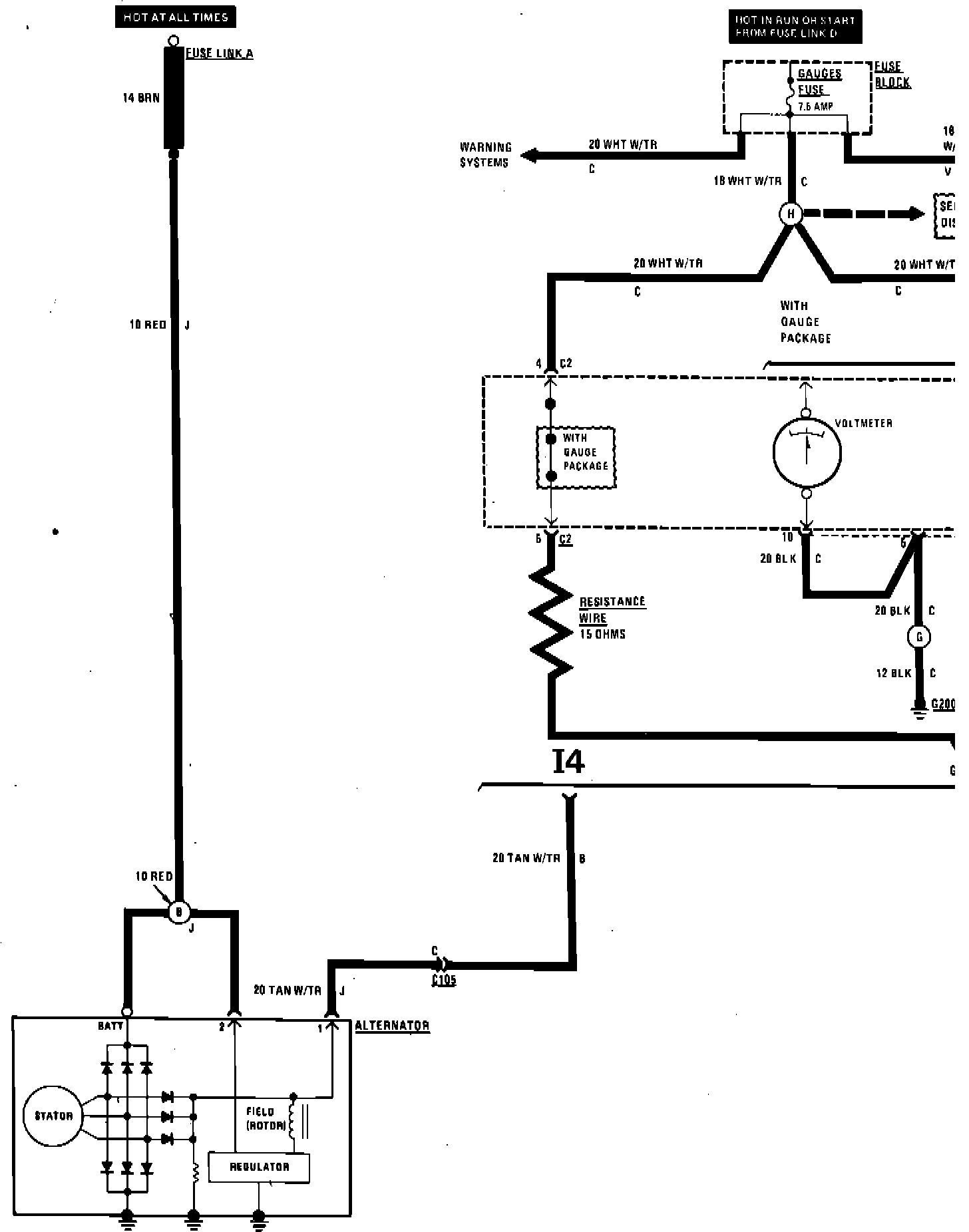

Fig. 14 Charging System Wiring Circuit (Part 1 of 2). W/Gasoline Engine:



Fig. 14 Charging System Wiring Circuit (Part 2 of 2). W/Gasoline Engine:

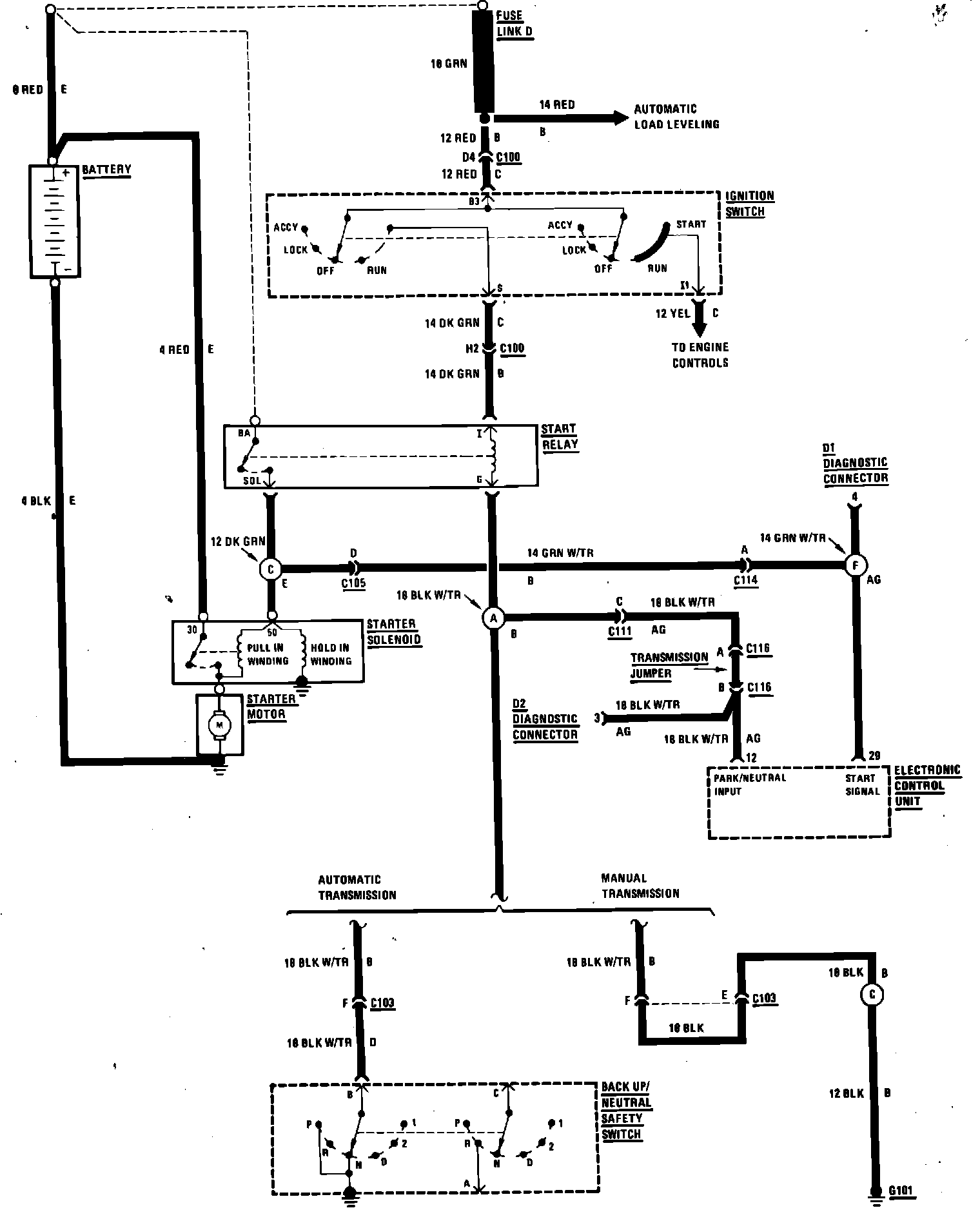

Fig. 58 Starter Wiring Circuit. W/4 Cylinder Gasoline Engine:
