Jeep Truck
>>
1986
>>
Cherokee 2WD L4-150 2.5L VIN H TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Diagnostic Connector
Diagnostic Connector

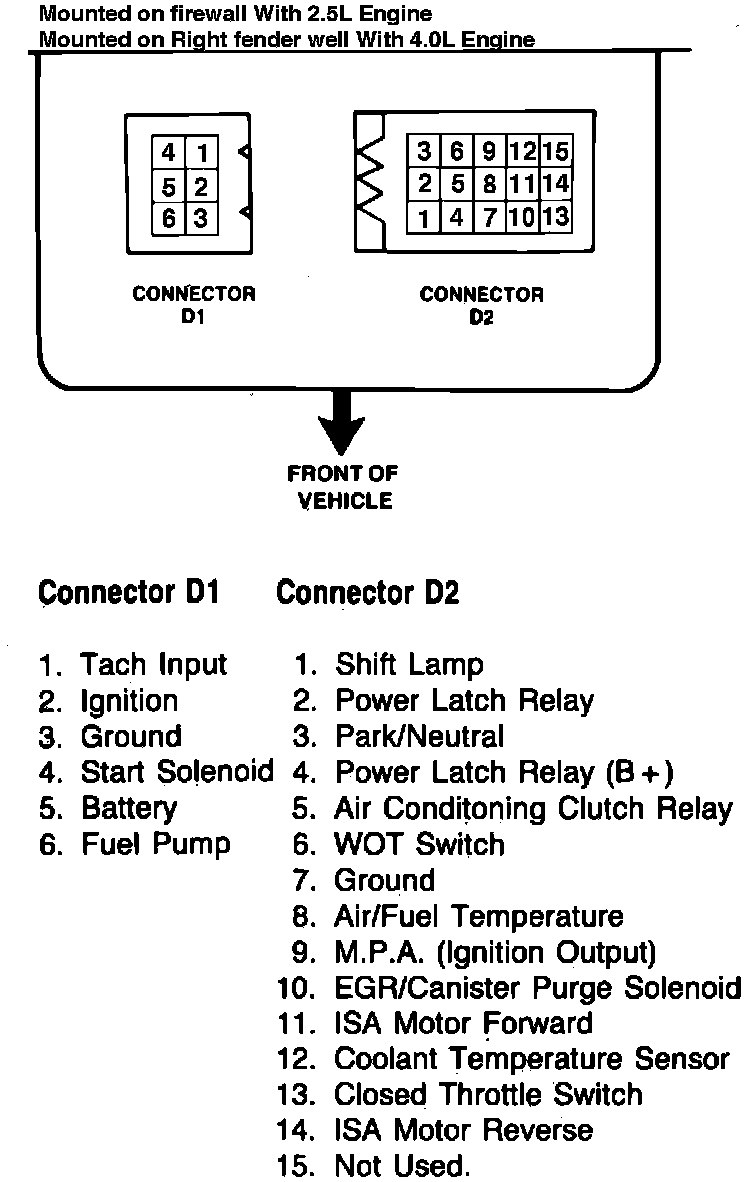

Fig. 1 Diagnostic connector terminal identification:
