Cherokee 2WD L4-150 2.5L VIN H TBI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Test 4 - System Operational Test
Test 4 - System Operational Test

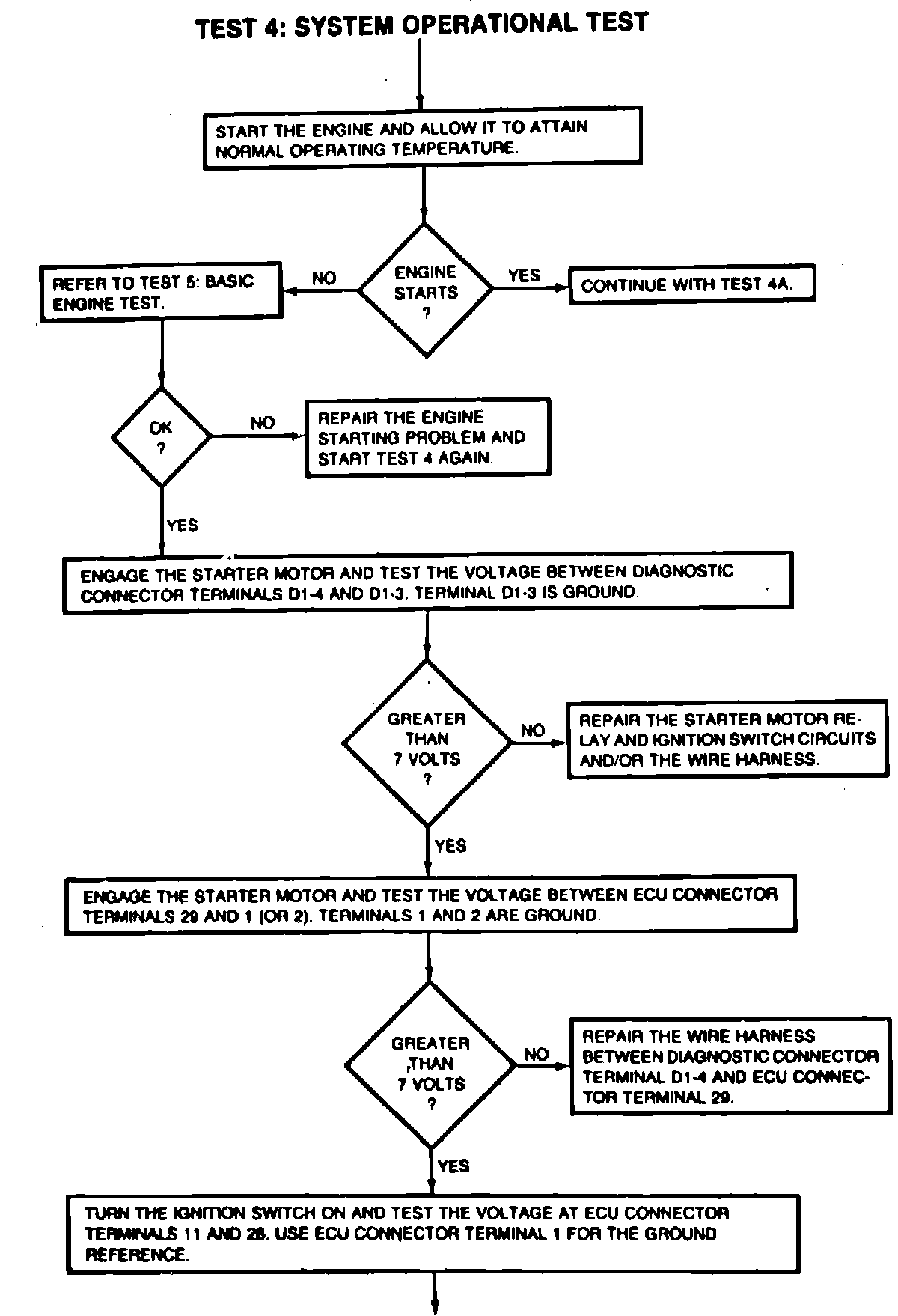

TBFI diagnostic chart. Test 4(Part 1 of 2):

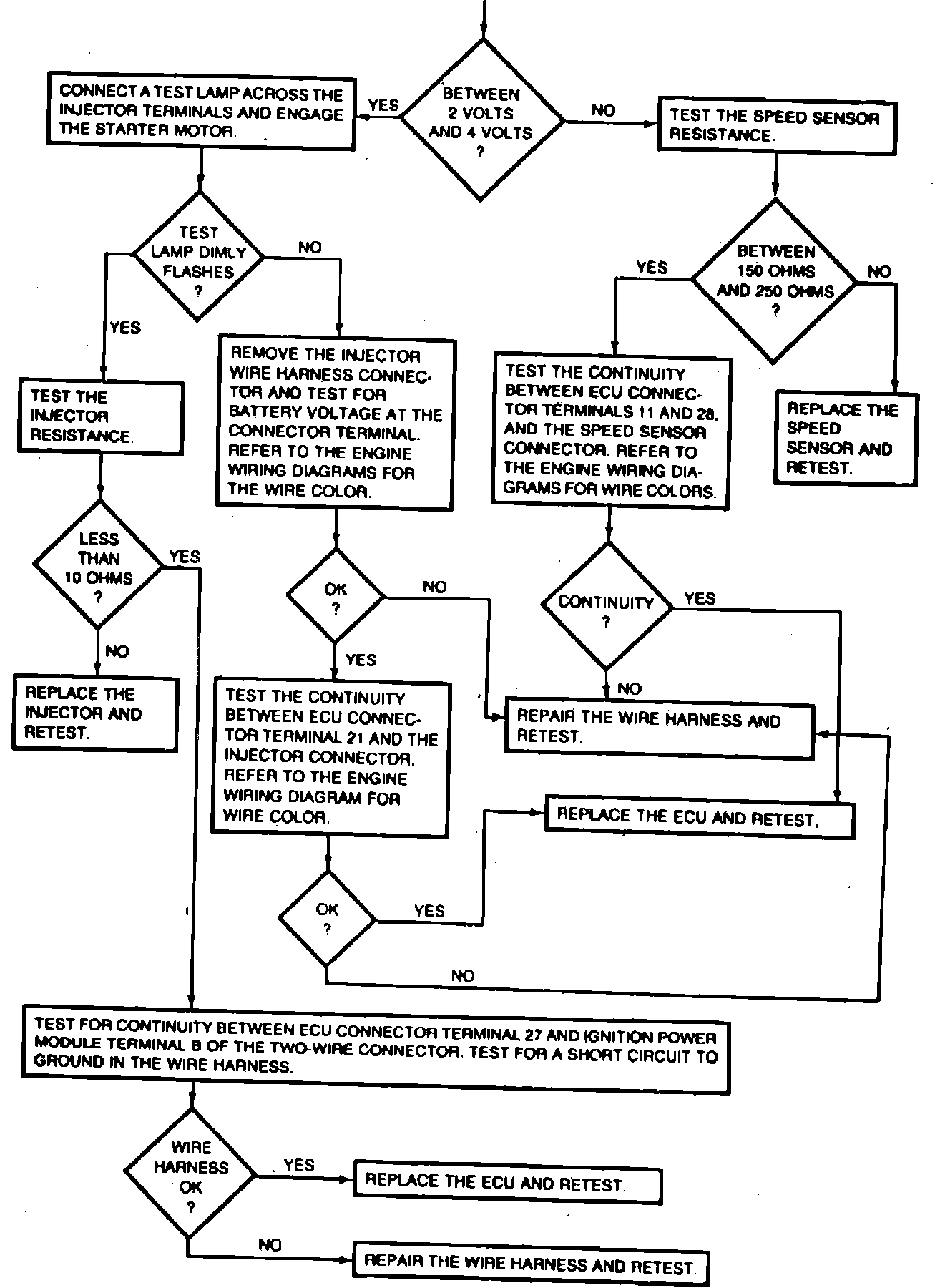

TBFI diagnostic chart. Test 4(Part 2 of 2):
