Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Jeep Truck
>>
1986
>>
Cherokee 2WD L4-150 2.5L VIN H TBI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Test 2 - Ignition Switch On
Test 2 - Ignition Switch On

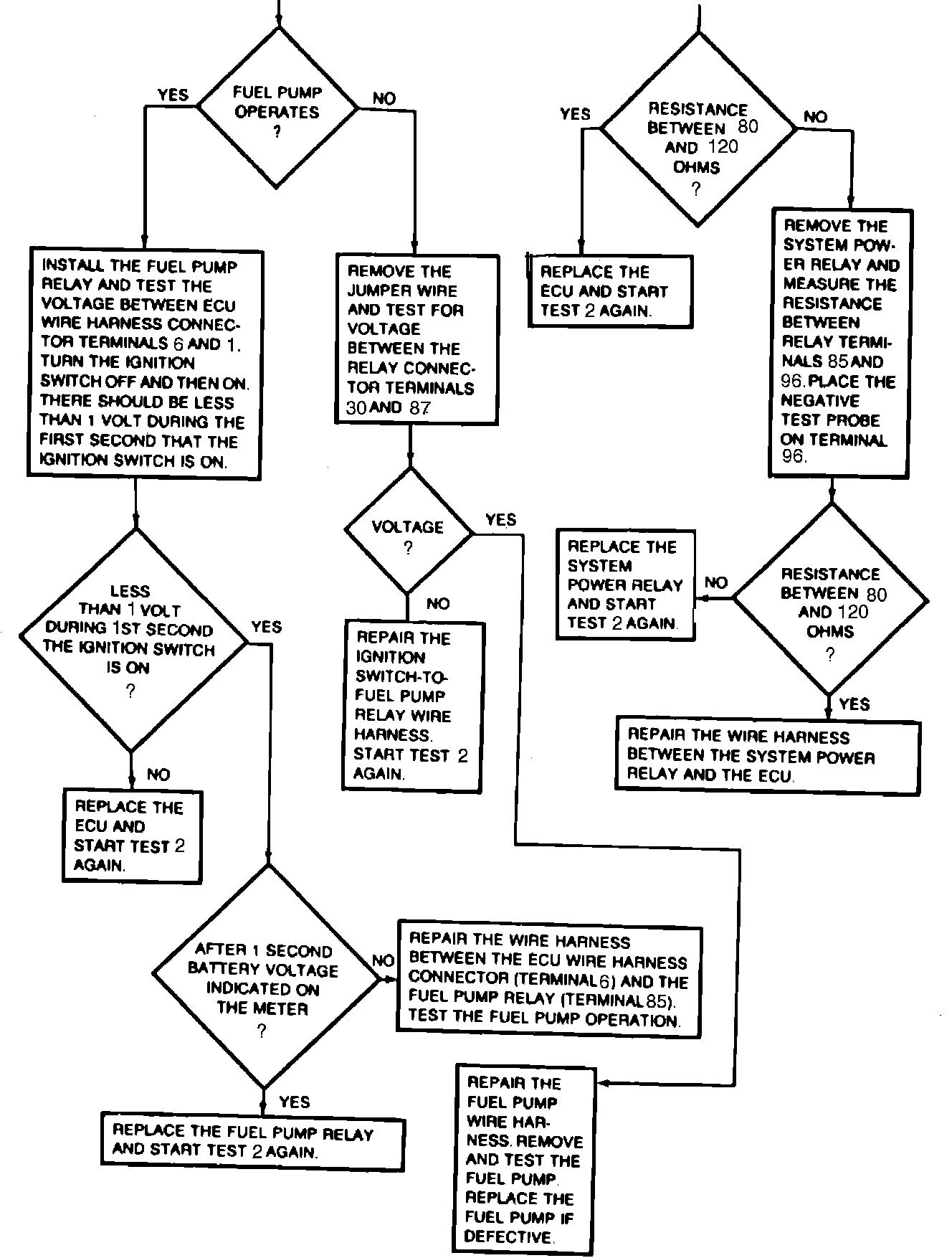

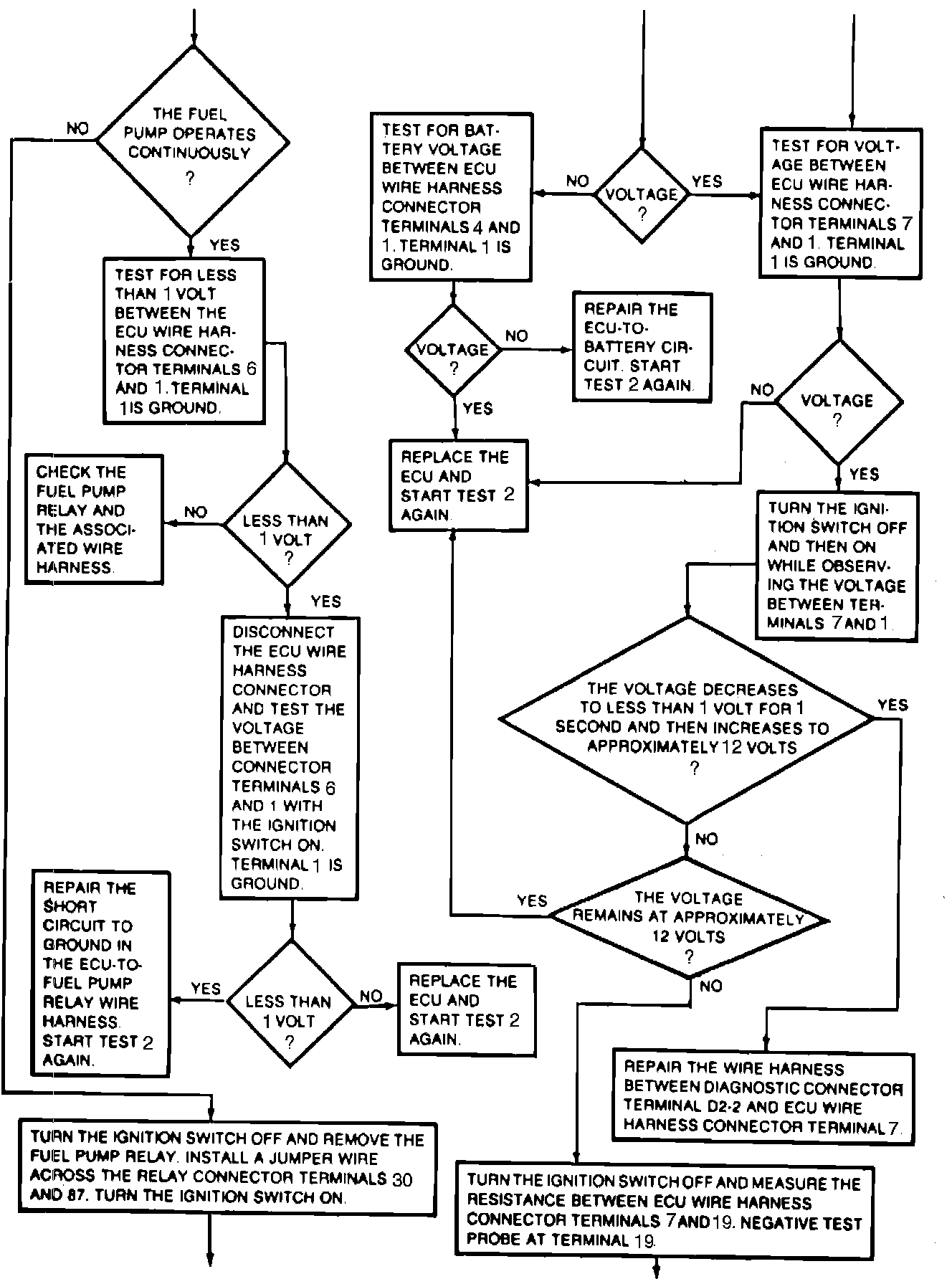

TBFI diagnostic chart. Test 2(Part 1 of 3):
TBFI diagnostic chart. Test 2(Part 2 of 3):
TBFI diagnostic chart. Test 2(Part 3 of 3):
