A/C - New Compressor Adjusting Strap
87amcjeep0135E318
MAY 1987
1986-1987 CHEROKEE/WAGONEER WITH TURBO DIESEL AND AIR CONDITIONING
HEATING AND AIR CONDITIONING ATTENTION: Workshop, Parts Department
NEW A/C COMPRESSOR ADJUSTING STRAP
A new A/C compressor strap and A/C compressor mounting pivot bolt entered production on Cherokee/Wagoneer models with turbo diesel and A/C starting with VIN 1JXXXXXXXHT142505. When servicing a 1986 or 1987 Cherokee/Wagoneer turbo diesel with A/C for a compressor vibration, poor interior cooling or a loose belt, check the A/C strap and compressor pivot bolt. If either the bolt or strap are damaged replace both.
Service correction may involve replacing the compressor adjusting strap and the compressor pivot mounting bolt before belt tension can be adjusted.
PROCEDURE
1. Disconnect the battery negative cable.
2. Raise vehicle on a hoist.
COMPRESSOR:

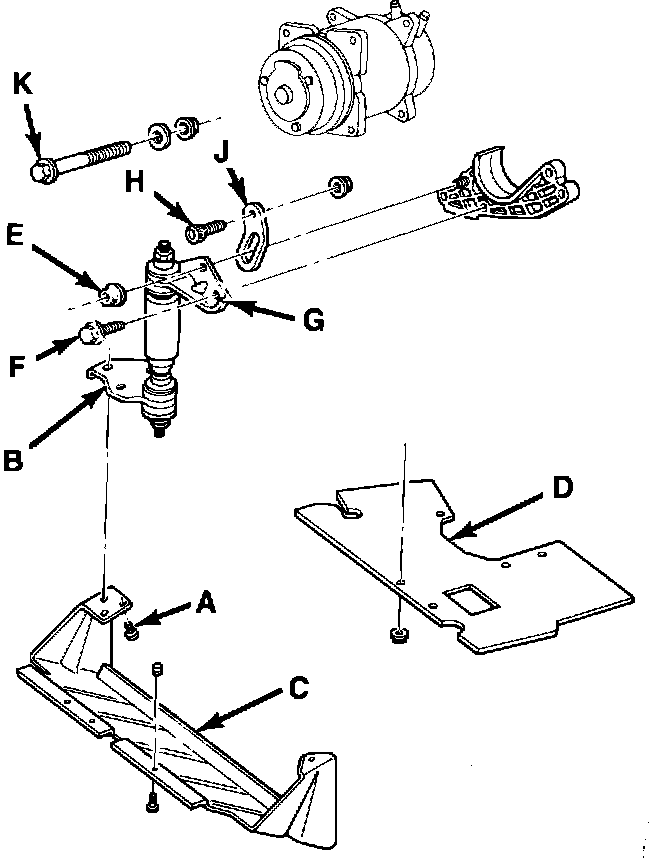

3. Remove the bolts (A) that hold the engine shock absorber lower bracket (B) and the passenger side of the skid plate (C) to the frame.
4. Remove the remaining skid plate mounting hardware and remove the skid plate.
5. Remove the pushnuts and bolts holding the rubber splash shield (D) in place.
6. Remove the rubber splash shield.
7. Remove the nut (E) and bolt (F) holding the engine shock absorber upper bracket (G) in place and remove the shock absorber.
8. Remove the torx head bolt (H) that holds the compressor adjusting strap (J) to the compressor and remove the strap.
9. Remove the compressor mounting pivot bolt (K).
10. Install the new compressor mounting pivot bolt, PN 8934 202 834, but do not tighten the bolt at this time.
11. Install the new compressor adjusting strap, PN 8953 005 157, and the torx head bolt.
12. Install the engine shock absorber upper bracket but do not tighten the nut this time.
13. Lower the vehicle.
14. Adjust the A/C belt tension to 400-512 N (90-115 lbs.) and tighten nut (E) to 32 N-m (27 ft.lbs.).
15. Raise the vehicle. Tighten bolt (F) to 61 N-m (45 ft.lbs.).
16. Tighten the compressor mounting pivot bolt to 50 N-m (37 ft.lbs.).
17. Install the rubber splash shield.
18. Install all the skid plate mounting hardware except the bolts at the passenger side frame. Do not tighten the skid plate mounting hardware at this time.
19. Install the engine shock absorber lower bracket, Tighten bolts (A) to 43 N-m (32 ft.lbs.).
20. Tighten all skid plate mounting hardware.
21. Lower the vehicle.
22. Connect the battery negative cable.
PARTS INFORMATION
DESCRIPTION QUANTITY PART NUMBER
STRAP, A/C Compressor 1 8953 005 157
BOLT, Hex 1 8934 202 834
SRT/TIC INFORMATION
OPERATION DESCRIPTION OPERATION TIME TIC
NUMBER
CO. A/C COMPRESSOR ADJ. STRAP 0108 0.8 1380
AND PIVOT BOLT - REPLACE
FILING INSTRUCTIONS
Record this I.S. Note on page L-22 of M.R.244 and file it in the manual.
