Jeep Truck
>>
1983
>>
Scrambler L4-150 2.5L VIN U 1-bbl
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Test 1 - Operational Test
Test 1 - Operational Test

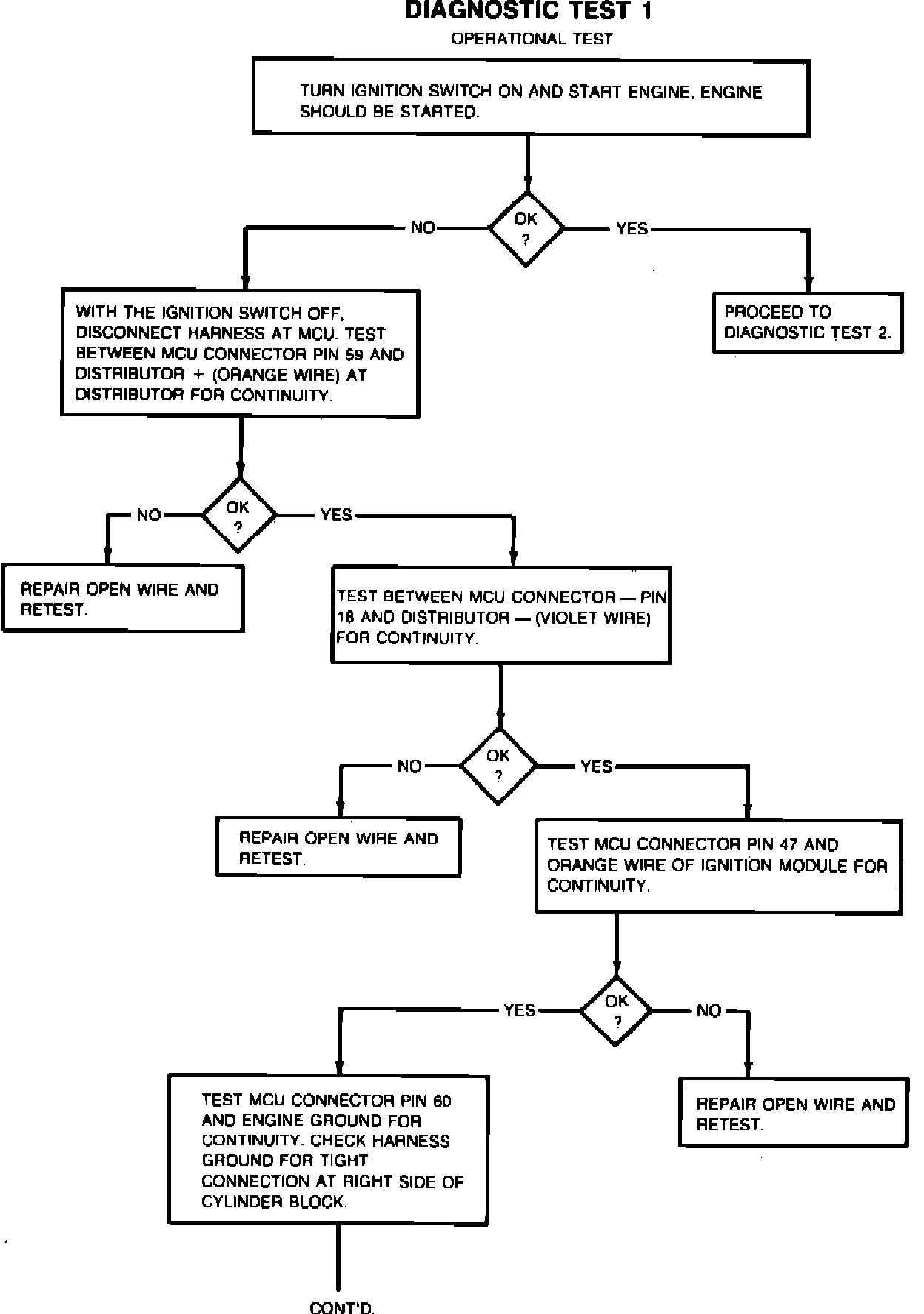

Diagnostic Test 1 (Part 1 of 2). 1983-86 4-150/2.46 L:

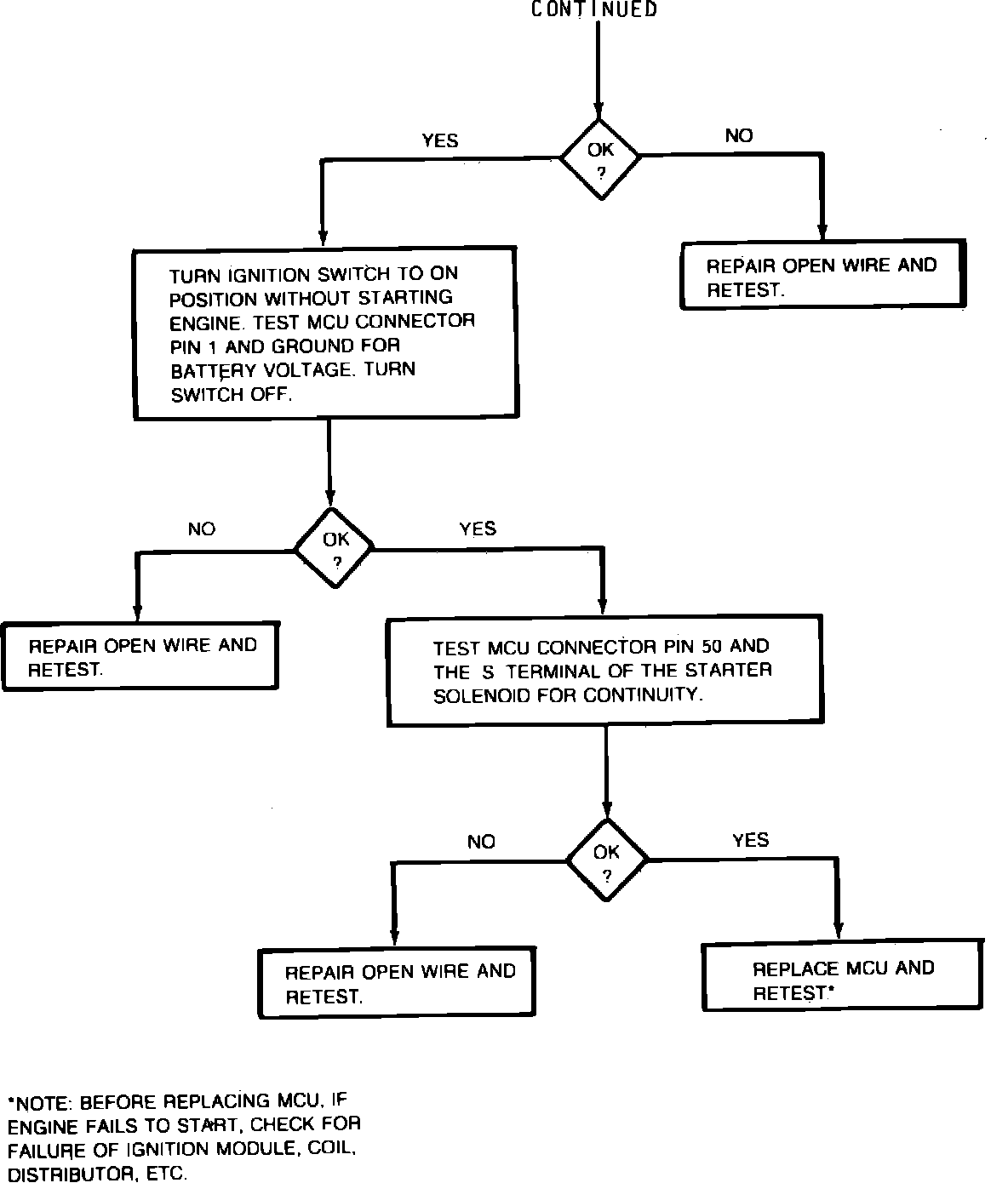

Diagnostic Test 1 (Part 2 of 2). 1983-86 4-150/2.46L:
