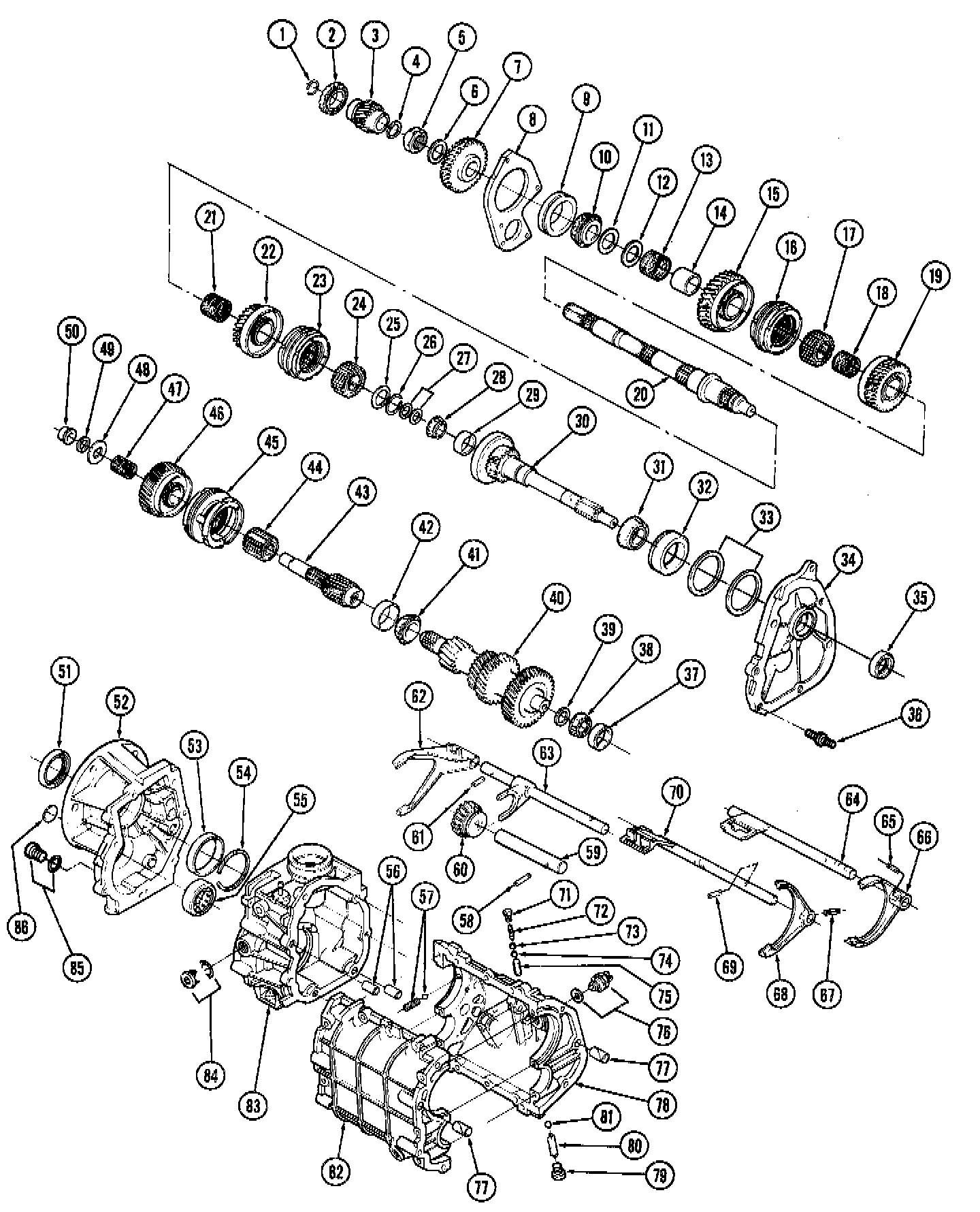

Exploded View

1. FIFTH GEAR LOCK RING

2. FIFTH GEAR ROLLER BEARING

3. FIFTH GEAR

4. FIFTH GEAR SNAP RING

5. REVERSE GEAR NUT

6. WASHER (NOT USED IN ALL MODELS)

7. REVERSE GEAR

8. REAR BEARING RETAINER

9. REAR BEARING RACE

10. REAR BEARING

11. REAR BEARING SHIM

12. SHIM WASHER

13. FIRST GEAR BEARING

14. BEARING SPACER

15. FIRST GEAR

16. FIRST-SECOND SYNCHRONIZER

17. SYNCHRONIZER HUB

18. SECOND GEAR BEARING

19. SECOND GEAR

20. MAINSHAFT

21. THIRD GEAR BEARING

22. THIRD GEAR

23. THIRD-FOURTH SYNCHRONIZER

24. SYNCHRONIZER HUB

25. SPRING WASHER

26. LOCK RING

27. PILOT BEARING SHIMS

28. PILOT BEARING

29. PILOT BEARING RACE

30. INPUT SHAFT

31. FRONT BEARING

32. FRONT BEARING RACE

33. FRONT BEARING SHIMS

34. FRONT BEARING RETAINER

35. OIL SEAL

36. MOUNTING STUDS

37. BEARING RACE

38. CLUSTER FRONT BEARING

39. FRONT BEARING SHIM

40. CLUSTER GEAR

41. CLUSTER REAR BEARING

42. BEARING RACE

43. INTERMEDIATE SHAFT

44. SYCHRONIZER HUB

45. FIFTH GEAR SYNCHRONIZER

46. FIFTH INTERMEDIATE GEAR

47. FIFTH INTERMEDIATE GEAR BEARING

48. THRUST WASHER

49. END PLAY SHIM

50. INTERMEDIATE SHAFT ROLLER BEARING RACE

51. OIL SEAL

52. REAR CASE

53. FIFTH GEAR ROLLER BEARING RACE

54. SNAP RING

55. INTERMEDIATE SHAFT ROLLER BEARING

56. ALIGNMENT DOWELS

57. FIRST-SECOND LOCK SPRING AND BALL

58. ROLL PIN

59. IDLER SHAFT

60. REVERSE IDLER GEAR

61. ROLL PIN

62. FIFTH-REVERSE SHIFT FORK

63. FIFTH-REVERSE SHIFT RAIL

64. FIRST-SECOND SHIFT RAIL

65. ROLL PIN

66. FIRST-SECOND SHIFT FORK

67. ROLL PIN

68. THIRD-FOURTH SHIFT FORK

69. THIRD-FOURTH SHIFT RAIL LOCK PIN

70. THIRD-FOURTH SHIFT RAIL

71. DETENT PWG

72. FIRST-SECOND DETENT SPRING

73. FIRST-SECOND DETENT BALL

74. INTERLOCK BALL

75. LOCK FINGER

76. BACKUP LIGHT SWITCH AND WASHER

77. ALIGNMENT DOWELS

78. FRONT CASE - LEFT HALF

79. DETENT PWG

80. FIFTH-REVERSE DETENT SPRING

81. FIFTH-REVERSE DETENT BALL

82. FRONT CASE - RIGHT HALF

83. INTERMEDIATE CASE

84. FILL PLUG AND WASHER

85. DRAIN PLUG AND WASHER

86. ACCESS PLUG
